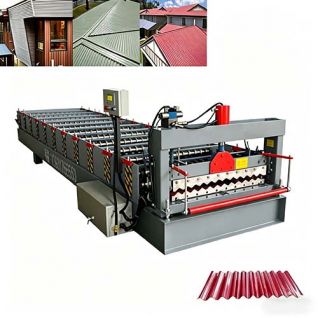

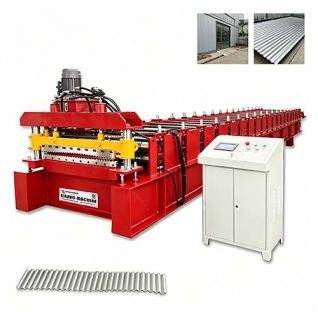

Corrugated Sheet Forming Machine for Automatic Roofing Panel Production

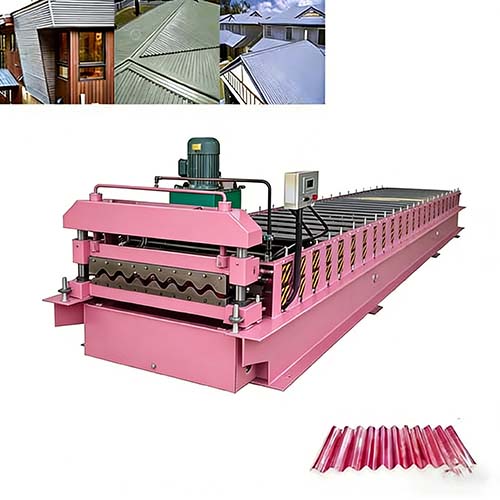

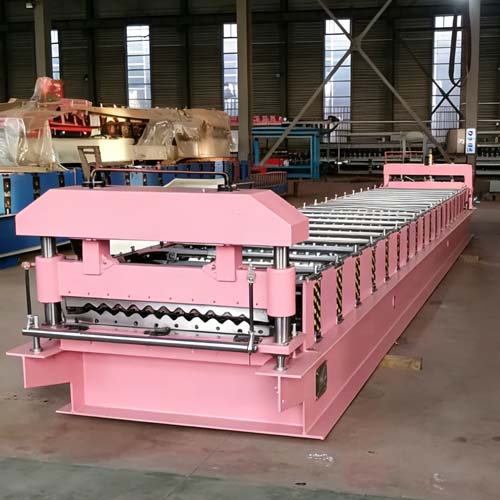

The complete production system generally consists of a hydraulic decoiler, feeding and leveling platform, sheet guiding device, roll forming machine, hydraulic cutting station, PLC intelligent control cabinet, transmission mechanism, and finished product support table. During operation, metal coils are automatically uncoiled and continuously fed into the forming section. Through multiple precision roller stations, the flat steel sheet is gradually shaped into a corrugated profile using advanced continuous cold roll forming technology. The automated production process guarantees smooth feeding, accurate corrugation dimensions, stable production speed, and consistent finished product quality during long-term industrial manufacturing.

This corrugated sheet forming machine can process various metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials commonly used in roofing and wall cladding applications. The standard material thickness generally ranges from 0.3mm to 0.8mm depending on project requirements and profile designs. Feeding width, corrugation height, and profile shapes can also be customized according to regional market standards and customer specifications. Different corrugated sheet profiles can be produced for roofing systems, industrial wall panels, warehouse roofs, fencing sheets, and agricultural building projects.

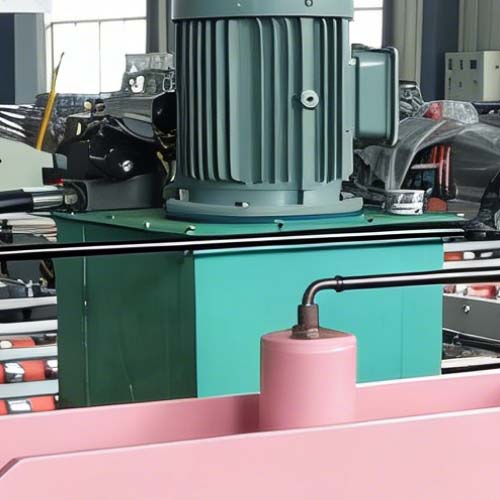

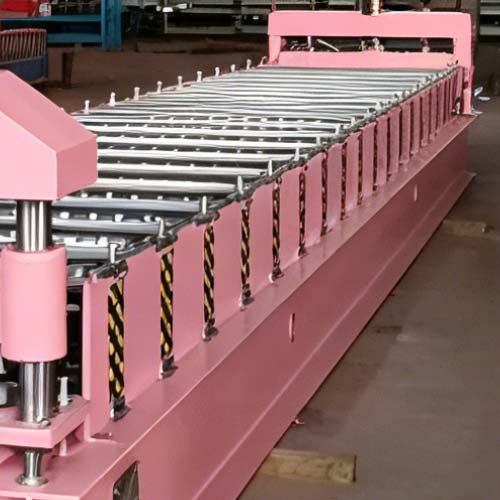

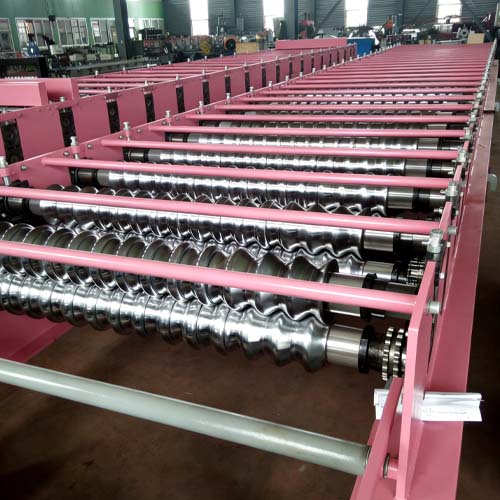

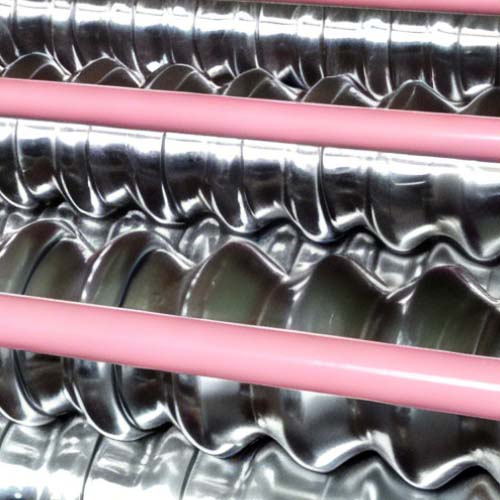

The forming rollers are manufactured from premium 45# forged steel with hard chrome plating treatment, improving roller hardness, wear resistance, and profile precision. Precision-machined shafts and industrial-grade transmission systems ensure stable operation and smooth forming performance during continuous high-speed production. The heavy-duty welded machine frame structure effectively reduces vibration and maintains accurate profile forming throughout industrial manufacturing processes. Combined with reliable hydraulic systems and industrial motors, the equipment can maintain efficient production capacity and long operational service life.

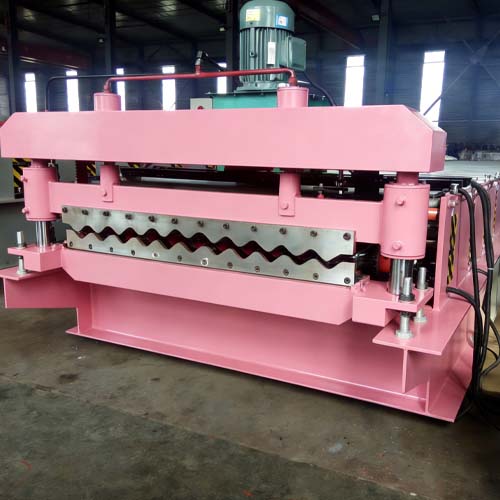

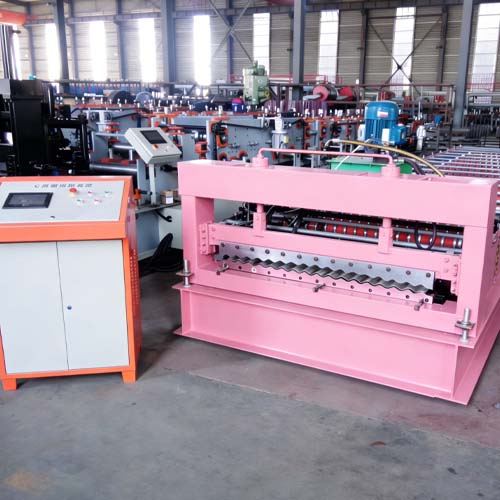

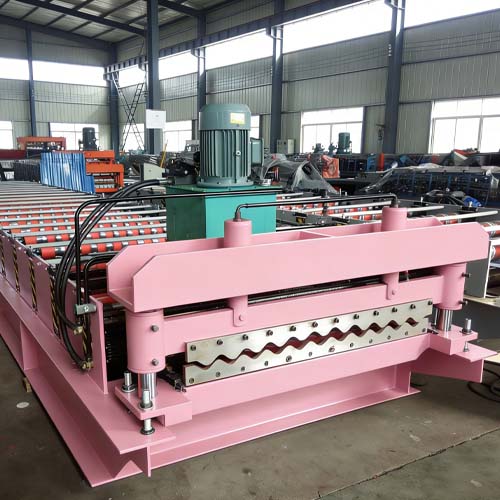

One of the major advantages of this automatic corrugated sheet forming machine is the advanced PLC intelligent control system with touchscreen operation. Operators can easily set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee accurate sheet dimensions while reducing production waste and improving raw material utilization. Optional automation configurations such as automatic stackers, servo feeding devices, production counters, and fault diagnosis systems can further improve manufacturing efficiency and reduce labor costs for modern factories.

Corrugated metal sheets produced by this machine are widely used in industrial roofing systems, agricultural storage facilities, livestock farms, logistics warehouses, workshops, commercial buildings, and steel structure wall applications. The corrugated profile enhances structural rigidity, improves water drainage performance, and increases resistance against strong winds and harsh outdoor environmental conditions. These characteristics make corrugated roofing panels highly suitable for long-term outdoor applications in industrial and agricultural environments.

Compared with traditional sheet fabrication methods, the corrugated sheet forming machine delivers significantly higher manufacturing efficiency, lower operational costs, and more stable product quality. Continuous cold roll forming technology ensures uniform corrugation patterns, smooth surface finishes, and accurate profile dimensions throughout the manufacturing process. For modern roofing material manufacturers, investing in automated corrugated sheet forming equipment is an ideal solution for expanding production capacity and improving competitiveness in the global construction materials market.
