Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

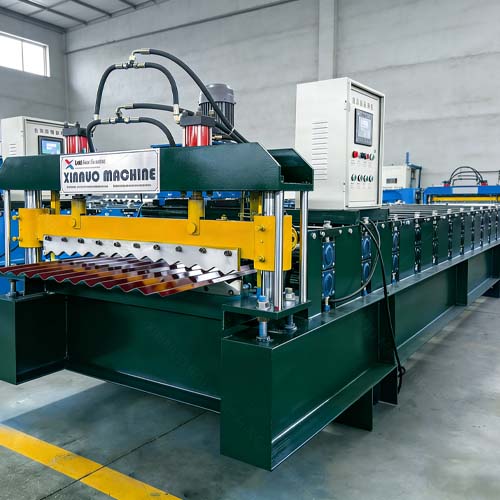

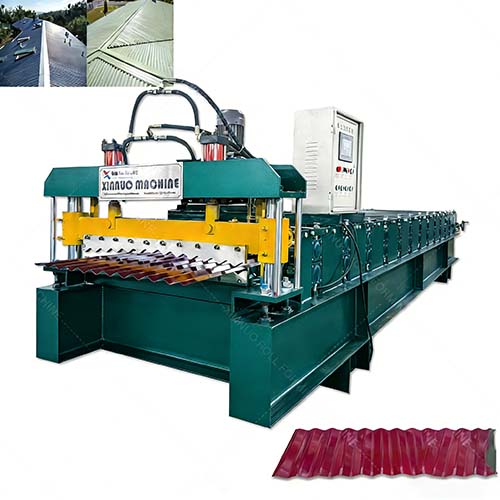

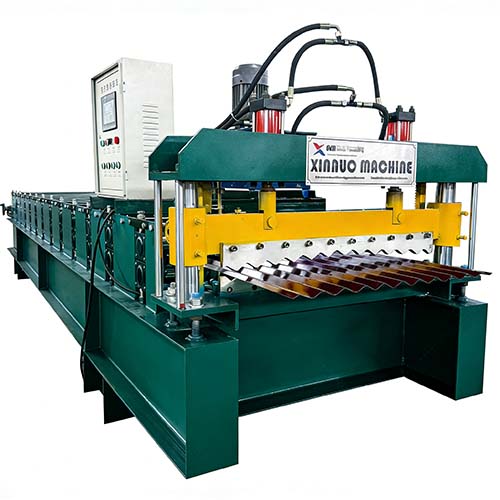

The Corrugated Roof Roll Forming Machine is a modern automatic production system designed for manufacturing corrugated metal roofing sheets and wall panels used in industrial buildings, agricultural facilities, warehouses, factories, workshops, commercial structures, and steel construction projects. As the global demand for durable and cost-effective roofing materials continues to increase, corrugated roofing sheets remain one of the most preferred building materials because of their lightweight structure, excellent corrosion resistance, strong mechanical strength, and long service life. This machine provides manufacturers with a highly efficient and stable production solution for producing high-quality corrugated roof panels on a continuous basis.

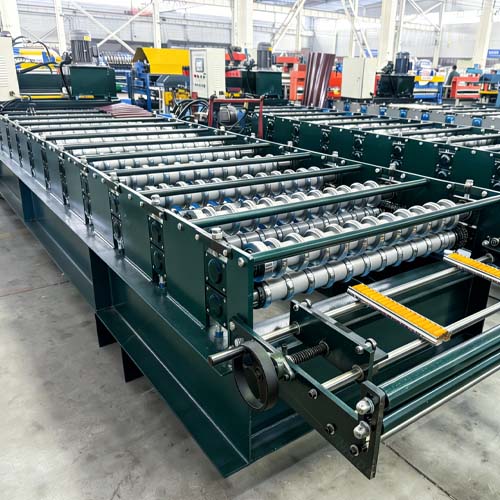

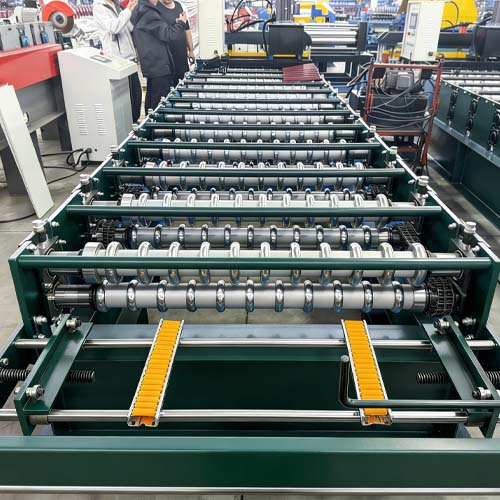

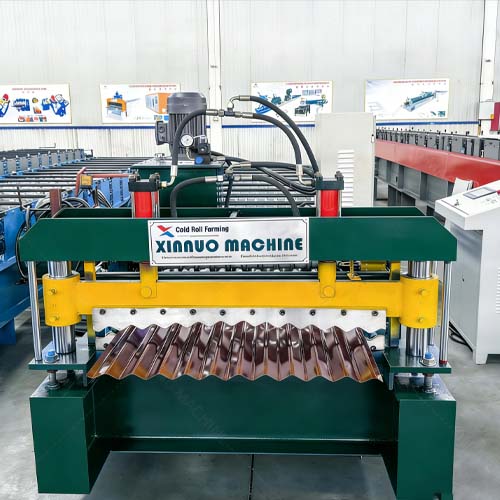

The complete roll forming line generally includes a hydraulic decoiler, feeding and leveling system, guiding platform, roll forming machine, hydraulic cutting station, PLC intelligent control cabinet, transmission system, and finished product support table. During operation, steel coils are automatically uncoiled and fed into the forming section. The flat metal sheet passes through multiple roller stations, where it is gradually shaped into a corrugated roofing profile using continuous cold roll forming technology. This automated forming process ensures stable feeding, accurate profile dimensions, smooth wave patterns, and consistent sheet quality throughout long-term production.
This corrugated roof roll forming machine is suitable for processing galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials. The standard material thickness range is generally between 0.3mm and 0.8mm depending on customer production requirements. Feeding width, corrugation height, and roofing profile shapes can also be customized according to regional market standards and construction applications. Different corrugated roof profiles can be manufactured for industrial roofing systems, warehouse roofs, wall cladding panels, fencing sheets, and agricultural building structures.

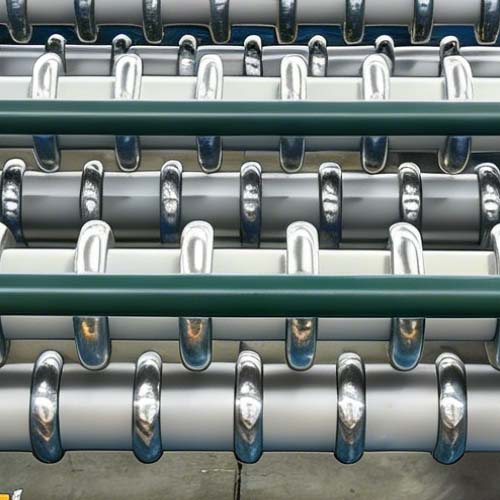

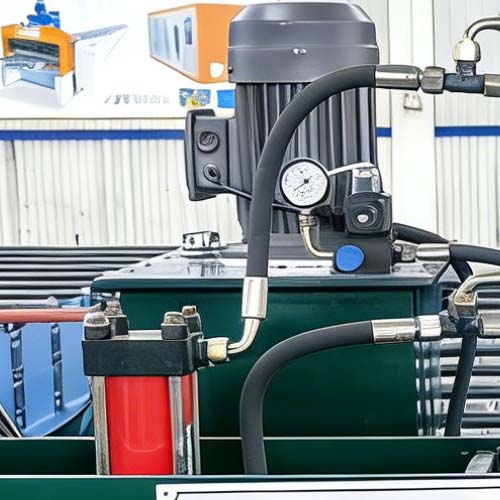

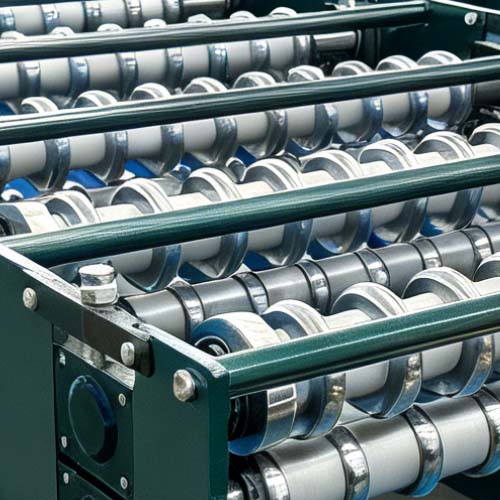

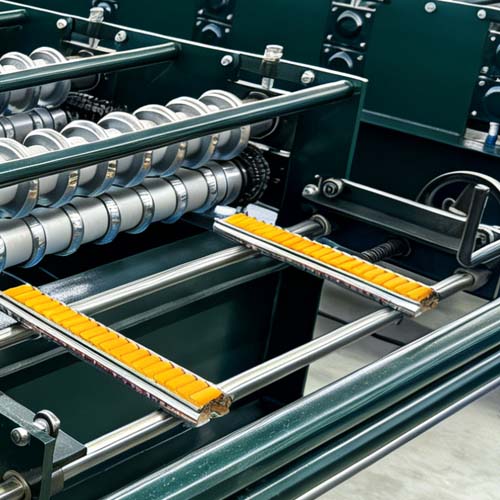

The forming rollers are manufactured from premium-grade 45# forged steel with hard chrome surface treatment, improving roller durability, wear resistance, and forming precision. Precision-machined shafts and high-quality transmission components ensure smooth machine operation and stable performance during continuous high-speed production. The machine body adopts a heavy-duty welded steel frame structure that effectively minimizes vibration and maintains equipment stability during industrial operation. Combined with reliable hydraulic systems and industrial motors, the machine can achieve efficient manufacturing performance and long operational lifespan.
One of the key advantages of this corrugated roof roll forming machine is the advanced PLC automatic control system with touchscreen operation. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control interface. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while reducing raw material waste. Optional automation equipment such as automatic stackers, servo motor feeding systems, production counters, and fault alarm systems can further improve factory automation levels and lower labor costs.
