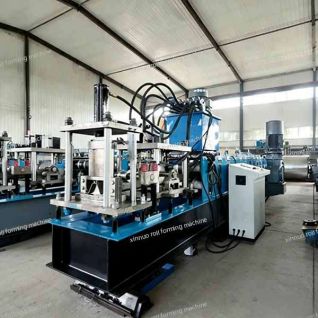

The Silo Stiffener Roll Forming Machine is a highly specialized, automated industrial piece of equipment engineered for the efficient, high-volume production of structural reinforcing profiles—known as stiffeners—used in the assembly of steel silos and large storage tanks. These stiffeners, typically manufactured in Omega, C, or Z-shaped cross-sections, are critical components that provide essential vertical and horizontal structural support, significantly enhancing the strength, stability, and load-bearing capacity of silo walls, which are subjected to immense internal and external pressures.
Core Working Principle
Operating on the principle of progressive cold roll forming, the machine transforms flat metal coils into precisely shaped profiles through a continuous, synchronized process.

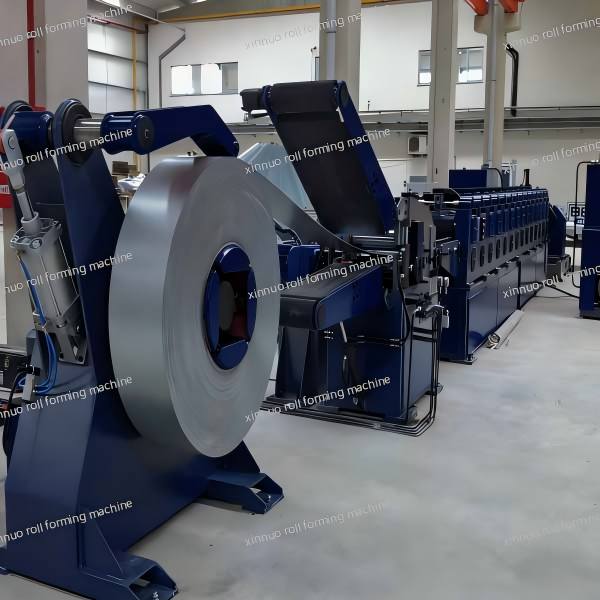

- Material Feeding & Leveling: A hydraulic decoiler unwinds coils of galvanized steel, stainless steel, or aluminum (typically 1.5 mm to 6.0 mm thick). The material is then fed through a precision leveler to eliminate coil set and ensure a perfectly flat strip before forming.

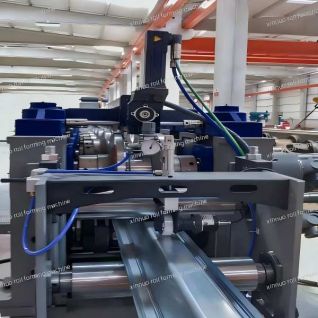

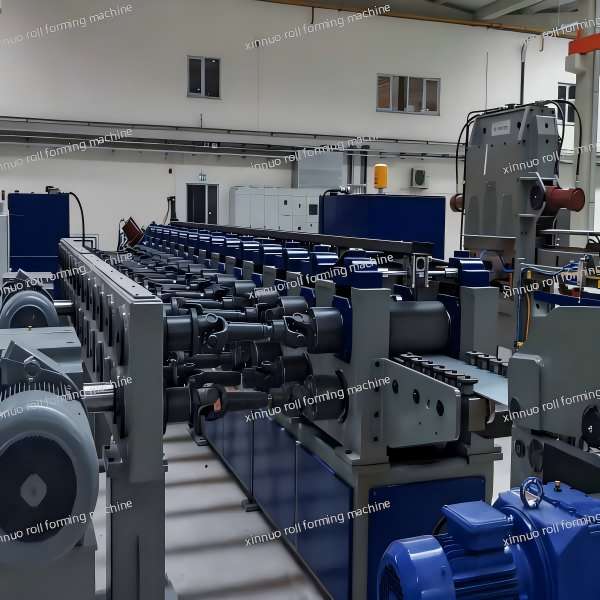

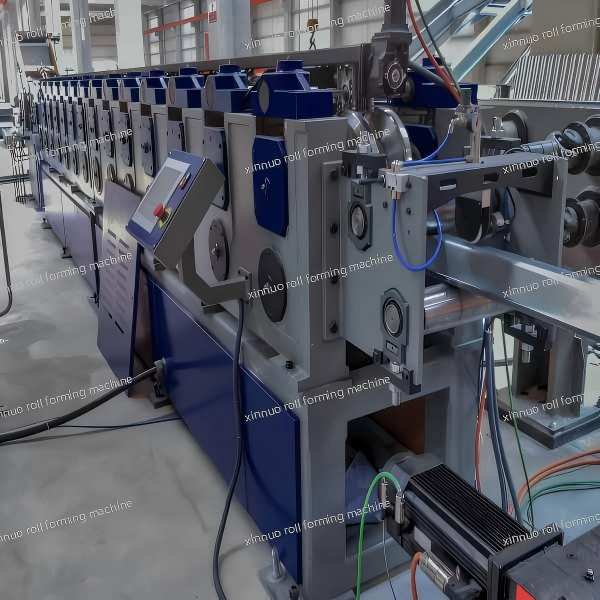

- Progressive Roll Forming: The flat strip advances through a series of 12 to 24 consecutive forming stations. Each station houses a pair of custom-contoured rollers that incrementally bend and shape the metal, applying small, controlled deformations to avoid stress fractures or material fatigue. This gradual bending ensures the final profile maintains exceptional dimensional accuracy and a smooth, defect-free surface.

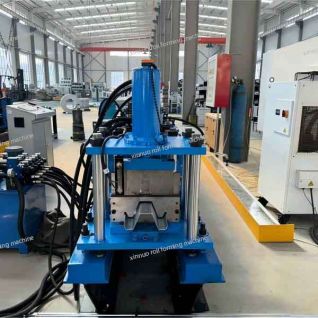

- Integrated Punching (Optional): Many advanced models feature an on-line hydraulic punching unit that precisely drills mounting holes, slots, or notches into the profile as it forms. This eliminates the need for secondary processing, streamlining production.
- High-Precision Cutting: A flying shear or hydraulic cutoff system, controlled by a PLC, cuts the continuous profile to user-specified lengths with an accuracy of ±1–2 mm. The cutting mechanism operates without stopping the production line, ensuring maximum efficiency.
- Product Stacking: The finished stiffeners are automatically conveyed to a discharge table or stacking system, ready for packaging or direct assembly.
Key Features & Advantages
- High Efficiency & Automation: The fully automated line operates at speeds of 3–12 meters per minute, enabling continuous mass production with minimal labor intervention, drastically reducing production time and costs compared to manual fabrication.
- Superior Precision & Consistency: Driven by a PLC control system with a user-friendly HMI touchscreen, the machine guarantees strict uniformity in profile shape, dimensions, and hole positioning across thousands of meters of production.
- Robust & Durable Construction: The machine frame is a heavy-duty welded steel structure, designed to minimize vibration and ensure long-term stability. The forming rolls are crafted from high-grade GCr15 bearing steel, quenched to HRC 58–62 and chrome-plated for exceptional wear resistance and a long service life.
- Material Versatility: Capable of processing a wide range of metal materials and thicknesses, making it adaptable for manufacturing stiffeners for small agricultural grain bins to large industrial silos for cement, coal, or chemicals.
- Customization: Tooling can be custom-designed to produce various stiffener profiles (Omega, C, U, W-shaped) to meet specific silo design requirements.
Applications
This machinery is indispensable in the steel structure and storage equipment industries. The stiffeners it produces are the backbone of:
- Agricultural Silos: For grain, corn, wheat, and animal feed storage.
- Industrial Silos: For bulk materials like cement, fly ash, sand, minerals, and coal.
- Liquid Storage Tanks: For water, oil, and other liquids.
- Environmental & Chemical Storage: For fertilizers and other bulk chemicals.
In summary, the Silo Stiffener Roll Forming Machine represents a critical investment for manufacturers, combining advanced automation, precision engineering, and robust design to deliver a reliable, cost-effective solution for producing high-quality structural components essential for modern bulk storage infrastructure.
