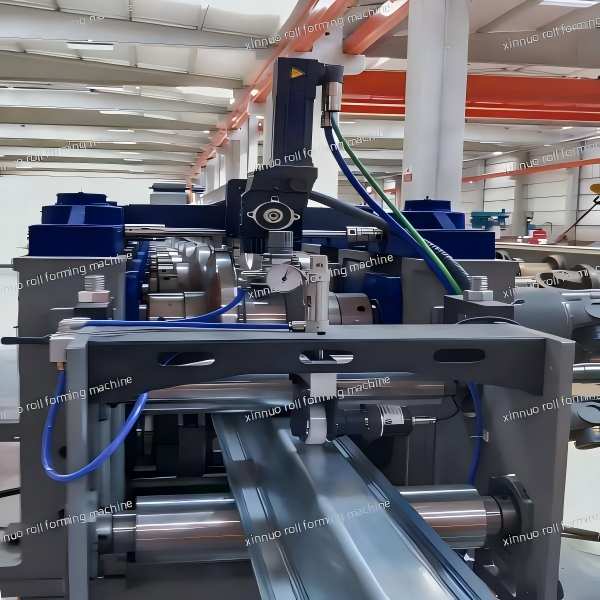

Silo stiffener production line

Silo Stiffener Roll Forming Machine is a special equipment used to manufacture metal silo stiffeners. Silos are commonly used for storage containers in agriculture and industry. In addition to grain, cement, and fertilizer, they can also be used to store minerals, feed, oil, and fat.

The main function of the silo stiffener machine is to continuously produce silo stiffener. The role of the stiffener is mainly to increase the stability and load-bearing capacity of the silo. XINNUO can customize and design the stiffener roll forming machine according to the customer’s silo drawings.

The silo stiffener production line consists of 8 parts, including a decolier (loading rack), feeding and leveling machine, roll forming machine, punching machine, shearing machine, discharging rack, electronic control system and hydraulic system. This production line can meet the automatic production of all silo columns and stiffeners, and the fastest production capacity can reach 45 meters/min. The commissioning of this production line can improve the production efficiency of reinforcement and stabilize the quality of products.

Silo Stiffener Forming Process

The automated production line is a special forming equipment for producing silo stiffener, with servo feeding, online punching, and automatic cut-to-length cutting.

The process flow is: loading → decoil → traction feeding → length measurement feeding → punching and notching → cold roll forming → automatic cut-to-length cutting → finished product unloading and packaging.

Silo stiffener machine specification and parameter

 Types Parameter

 Working Speed 15 –20m/min

 Total power 18.5kw-30kw

 Max Dimension (LxWxH) 16×1.8×2.2m

 Weight of machine 10 – 16 tons

 Material width 300mm-600mm

 Material thickness 1.0 – 4.5mm (G550-G300)

Suitable material Stainless/Galvanized Steel

 Roller station 12 – 18

 Transmission system Servo motor/Hydraulic motor

Punching system According customer hole drawing layout

 Cutting system A non-stop flying cut , Hydraulic cylinder

Package system(option) full automatically stacking system

 Control system PLC and servo motor control, human-machine interface, protection warning net, alarm light
