Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

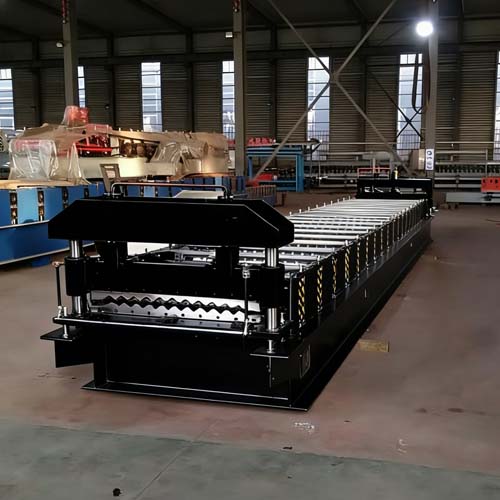

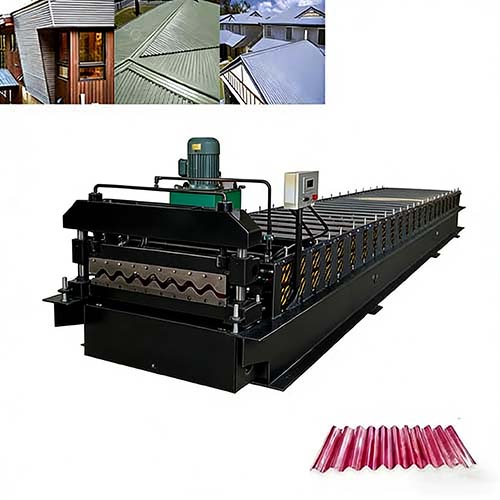

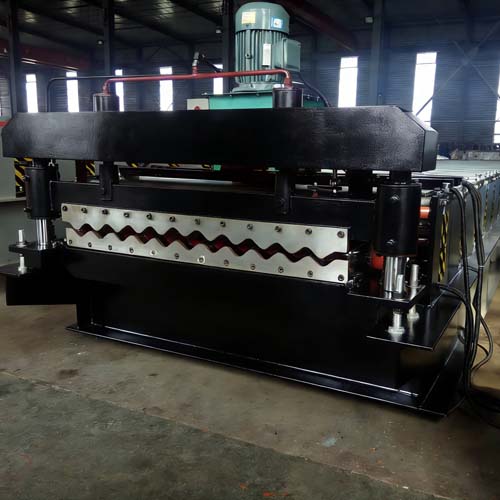

The Metal Corrugated Machine is an advanced automatic roll forming system designed for producing corrugated metal roofing sheets and wall cladding panels used in industrial buildings, agricultural structures, warehouses, workshops, factories, logistics centers, and steel construction projects. As global demand for durable and cost-effective construction materials continues to increase, corrugated metal sheets have become one of the most widely used roofing and cladding products because of their excellent strength, lightweight structure, corrosion resistance, and long-term durability. This machine provides manufacturers with a reliable and efficient solution for continuous production of high-quality corrugated metal panels with accurate forming precision and stable operational performance.

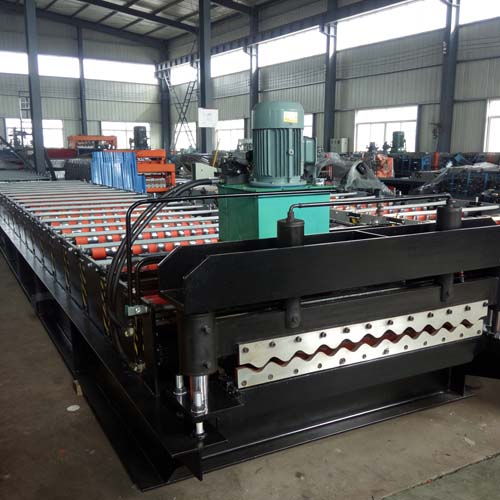

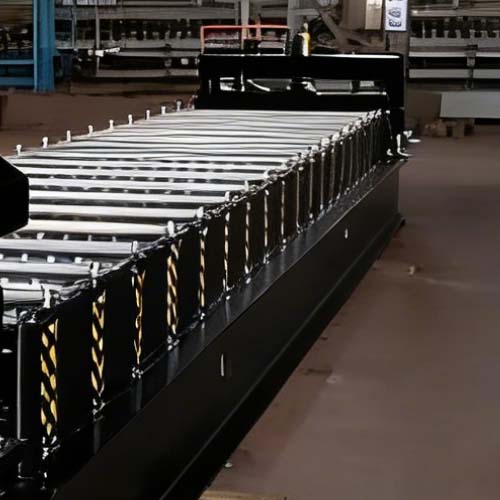

The complete production line generally includes a hydraulic decoiler, material feeding and guiding platform, leveling system, roll forming machine, hydraulic cutting device, PLC intelligent control cabinet, drive transmission mechanism, and finished product receiving table. During operation, steel coils are automatically uncoiled and continuously fed into the forming section. Through multiple precision roller stations, the flat metal sheet is gradually formed into a corrugated profile using continuous cold roll forming technology. The automated production process ensures smooth material feeding, stable production speed, consistent corrugation dimensions, and reliable product quality during long-term industrial manufacturing operations.
This metal corrugated machine can process various metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials commonly used for roofing and wall cladding systems. The standard material thickness usually ranges from 0.3mm to 0.8mm depending on production requirements and profile configurations. Feeding width, corrugation height, and sheet profile patterns can also be customized according to customer requirements and regional construction standards. Different corrugated panel designs can be manufactured for industrial roofing systems, warehouse roofing sheets, wall cladding panels, fencing applications, and agricultural building projects.

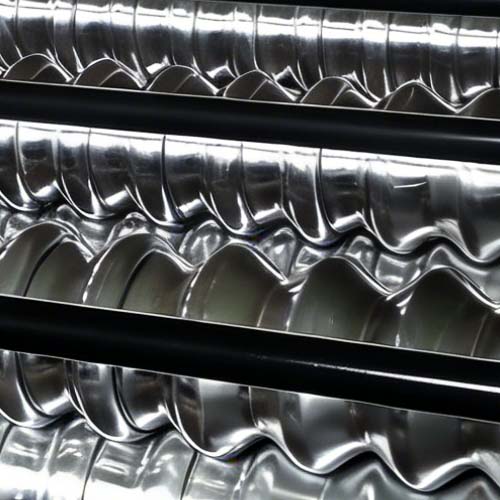

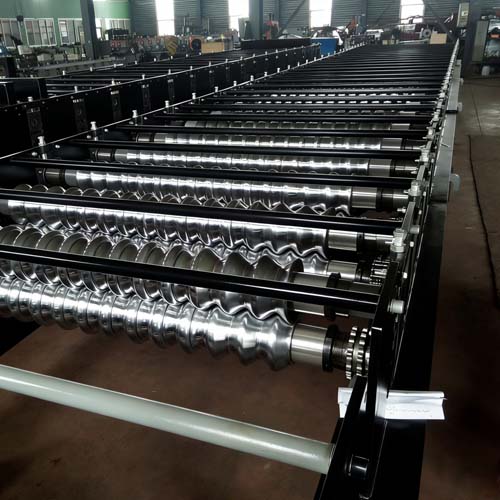

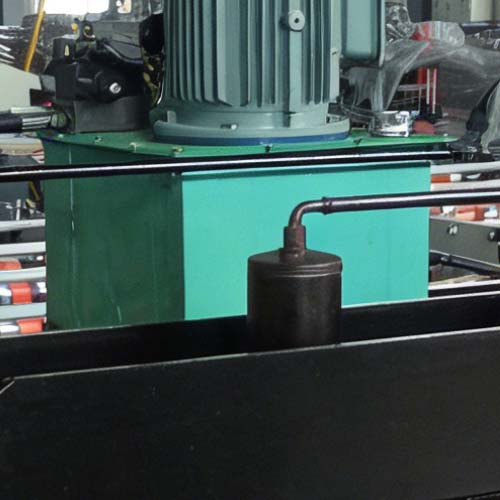

The forming rollers are manufactured from premium-grade 45# forged steel with hard chrome plating treatment, improving roller hardness, wear resistance, and forming accuracy. Precision-machined shafts and industrial-grade transmission systems ensure stable operation and smooth forming performance during continuous high-speed production. The heavy-duty welded steel machine frame effectively reduces vibration and maintains excellent profile precision throughout industrial manufacturing processes. Combined with reliable hydraulic systems and industrial motors, the equipment can maintain efficient production capacity and long operational service life.

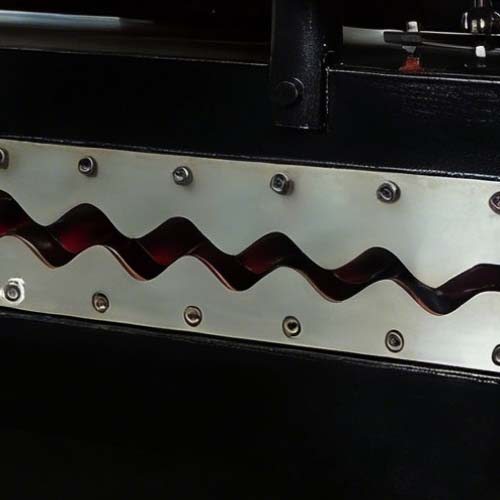

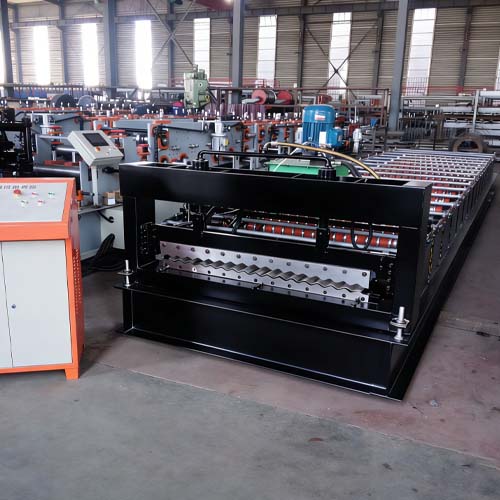

One of the main advantages of this automatic metal corrugated machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems ensure accurate sheet dimensions while reducing material waste and improving manufacturing efficiency. Optional automation configurations such as automatic stacking systems, servo motor feeding devices, production counters, and fault monitoring systems can further improve factory automation and reduce labor costs for modern manufacturing facilities.
Corrugated metal sheets produced by this equipment are widely used in industrial factories, agricultural storage buildings, livestock farms, logistics warehouses, workshops, commercial facilities, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances water drainage performance, and increases resistance against strong wind pressure and severe weather conditions. These advantages make corrugated roofing panels highly suitable for long-term outdoor use in industrial and agricultural environments exposed to rain, sunlight, humidity, and temperature fluctuations.
Compared with traditional sheet fabrication methods, the metal corrugated machine offers significantly higher manufacturing efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, smooth surface finishes, and accurate profile dimensions throughout the manufacturing process. For modern roofing sheet manufacturers, investing in automated corrugated metal forming equipment is an ideal solution for expanding production capacity and strengthening competitiveness in the global construction materials industry.
