Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

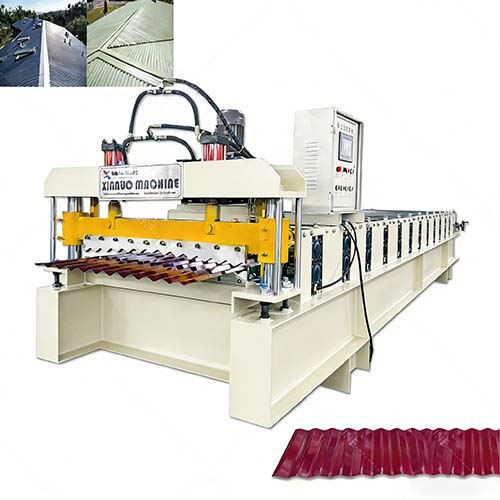

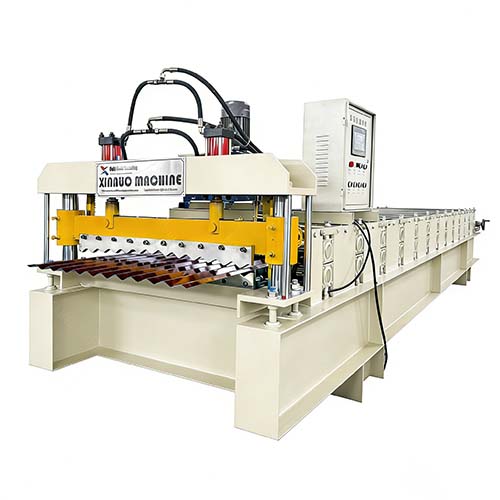

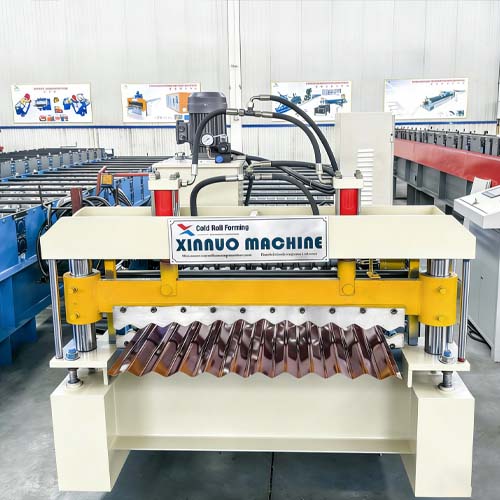

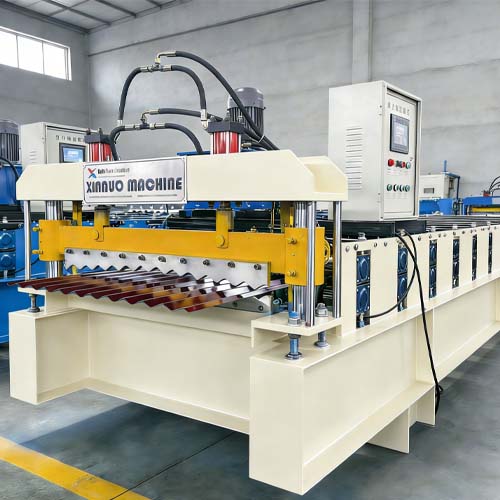

The Advanced Corrugated Roof Sheet Making Machine is a fully automated roll forming production system designed for manufacturing corrugated metal roofing sheets and wall panels for industrial buildings, warehouses, agricultural facilities, factories, workshops, and steel structure construction projects. With increasing global demand for durable and cost-effective roofing materials, corrugated roofing sheets continue to be one of the most preferred construction products because of their lightweight design, strong structural performance, weather resistance, and long service life. This machine offers an efficient and stable solution for producing high-quality corrugated roof sheets with precise forming accuracy and continuous industrial production capability.

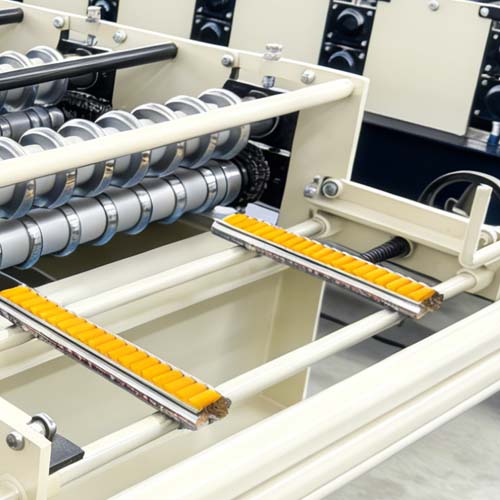

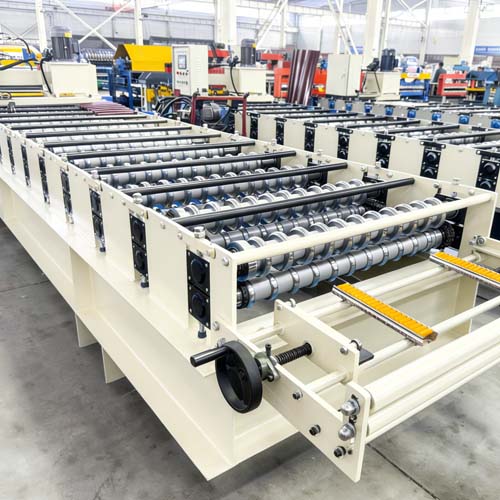

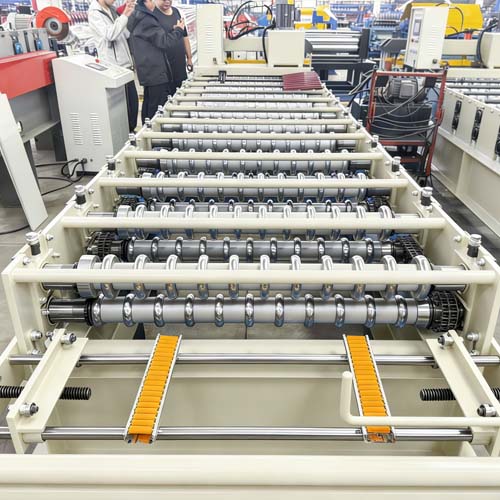

The complete production line is typically equipped with a hydraulic decoiler, feeding and guiding platform, leveling system, roll forming machine, hydraulic cutting station, PLC automatic control cabinet, transmission system, and finished sheet receiving table. During operation, steel coils are automatically uncoiled and smoothly fed into the roll forming section. The flat metal sheet passes through multiple forming roller stations where it is gradually transformed into a corrugated roofing profile through continuous cold roll forming technology. This automated production process ensures stable material feeding, accurate corrugation dimensions, smooth surface quality, and consistent production performance during long-term operation.
This corrugated roof sheet making machine is suitable for processing galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials. The standard material thickness range generally varies from 0.3mm to 0.8mm depending on customer production requirements and profile designs. Feeding width, corrugation height, and roofing sheet patterns can also be customized according to regional market demands and construction standards. Different corrugated profiles can be produced for roofing systems, warehouse roofing panels, wall cladding sheets, fencing panels, and industrial siding applications.

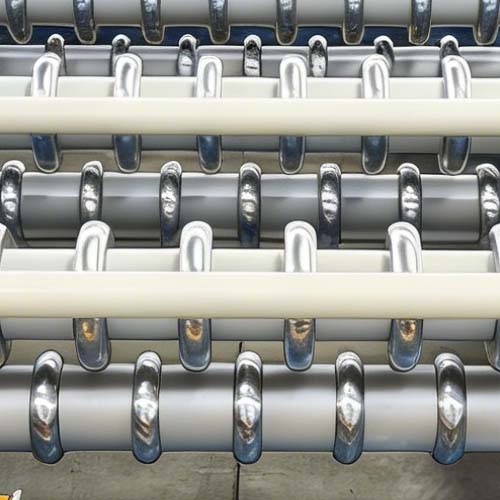

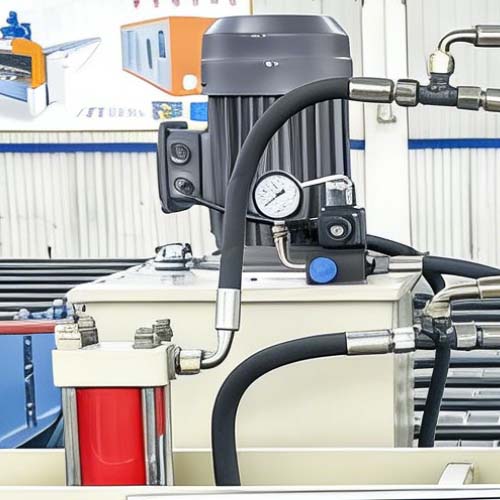

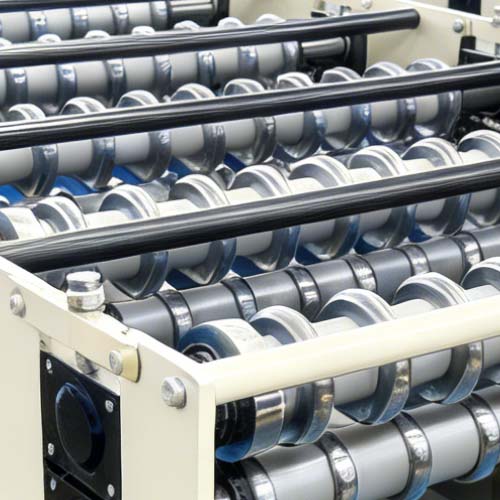

The forming rollers are manufactured from high-quality 45# forged steel with hard chrome plating treatment to improve surface hardness, increase wear resistance, and extend machine lifespan. Precision-machined roller shafts and durable transmission components ensure stable operation and smooth forming performance during high-speed production. The heavy-duty welded steel frame structure effectively minimizes vibration and maintains excellent profile accuracy throughout continuous industrial manufacturing. Together with reliable hydraulic systems and industrial-grade motors, the machine delivers efficient and long-lasting production performance.
One of the key features of this automatic corrugated roof sheet making machine is the advanced PLC intelligent control system with touchscreen operation. Operators can easily set production length, cutting quantity, and processing parameters through the digital control panel. Automatic measuring and hydraulic cutting systems ensure precise sheet dimensions while reducing raw material waste. Optional automation systems such as automatic stacking devices, servo motor feeding systems, production counters, and fault alarm functions can further improve production efficiency and reduce labor requirements for modern factories.
