Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

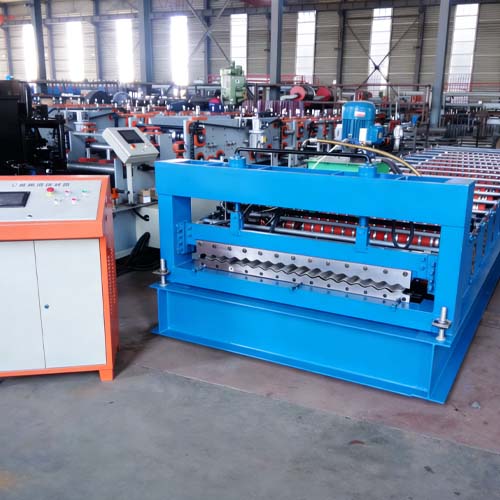

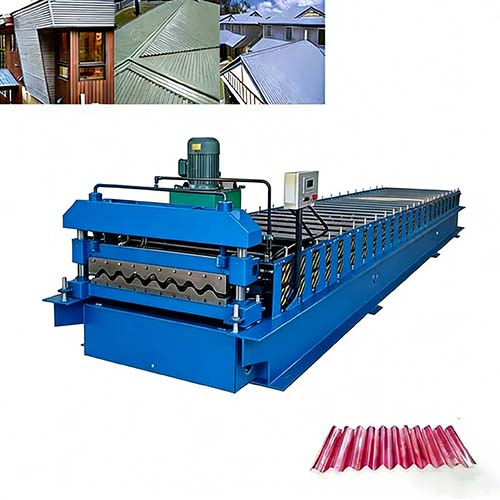

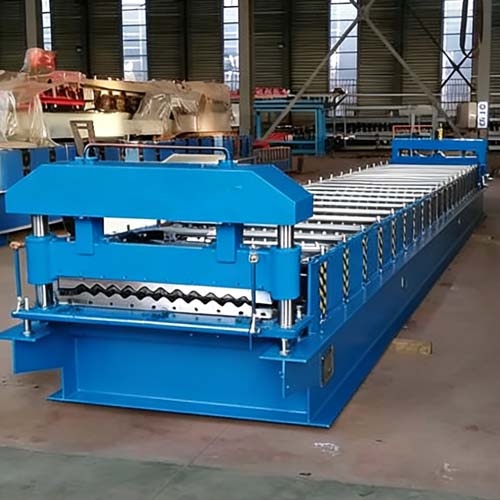

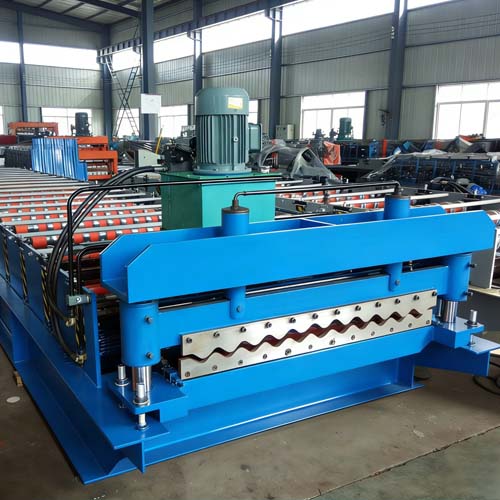

The Corrugated Roofing Sheet Forming Machine is a modern cold roll forming production line designed for manufacturing corrugated metal roofing sheets and wall cladding panels used in industrial plants, agricultural buildings, warehouses, workshops, logistics centers, commercial facilities, and steel structure construction projects. With the continuous development of global infrastructure and industrial construction, corrugated roofing sheets have become one of the most widely used building materials because of their lightweight structure, excellent strength, corrosion resistance, and economical installation advantages. This machine provides manufacturers with a fully automated and reliable solution for producing high-quality corrugated roofing panels with stable production efficiency and accurate profile forming.

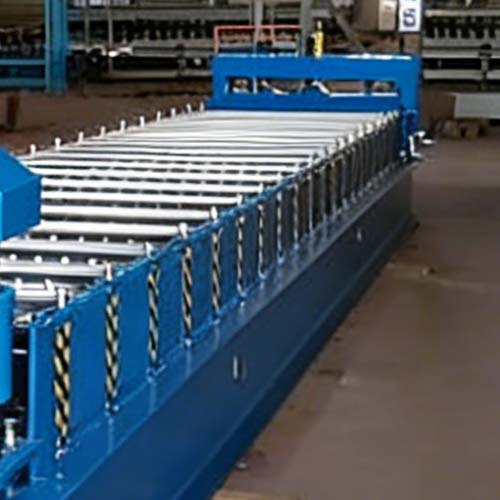

The complete production system generally includes a hydraulic decoiler, feeding and guiding platform, leveling device, roll forming machine, hydraulic cutting system, PLC automatic control cabinet, transmission mechanism, and finished product support table. During operation, steel coils are automatically uncoiled and smoothly fed into the roll forming section. The flat metal sheet passes through multiple precision roller stations, where it is gradually transformed into a corrugated roofing profile using continuous cold roll forming technology. This automated manufacturing process guarantees stable material feeding, accurate corrugation dimensions, smooth surface quality, and consistent production performance during long-term industrial operation.
This corrugated roofing sheet forming machine is suitable for processing galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum materials, and other coated metal materials widely used in roofing applications. The standard material thickness range generally varies from 0.3mm to 0.8mm depending on customer requirements and roofing profile designs. Feeding width, corrugation height, and sheet profile patterns can also be customized according to regional construction standards and market demands. Different roofing sheet designs can be manufactured for industrial roofing systems, wall cladding panels, warehouse roofs, fencing applications, and agricultural construction projects.

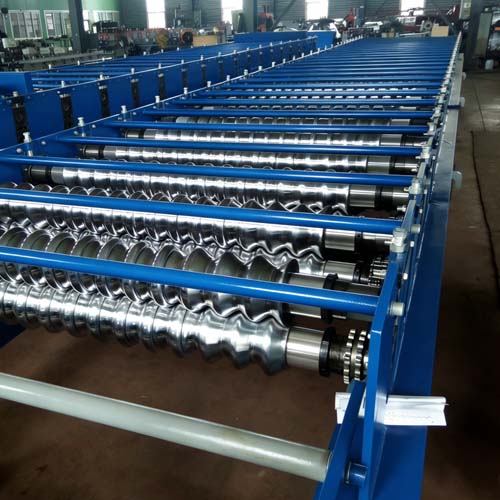

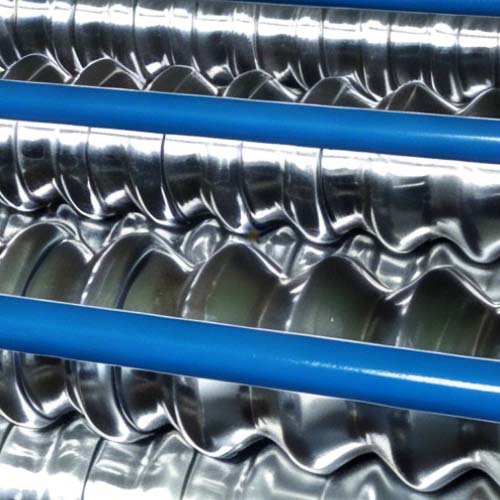

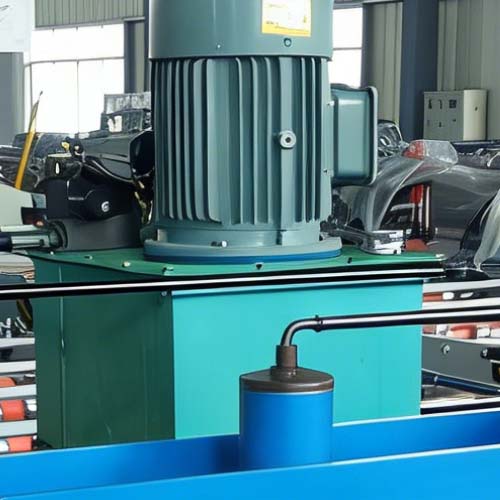

The forming rollers are manufactured from premium 45# forged steel with hard chrome plating treatment to improve roller hardness, wear resistance, and profile precision. Precision-machined shafts and high-quality transmission systems ensure stable operation and smooth forming performance during continuous high-speed production. The heavy-duty welded machine frame effectively reduces vibration and improves equipment stability throughout industrial manufacturing processes. Together with reliable hydraulic systems and industrial-grade motors, the machine can maintain efficient production capacity and long operational lifespan.

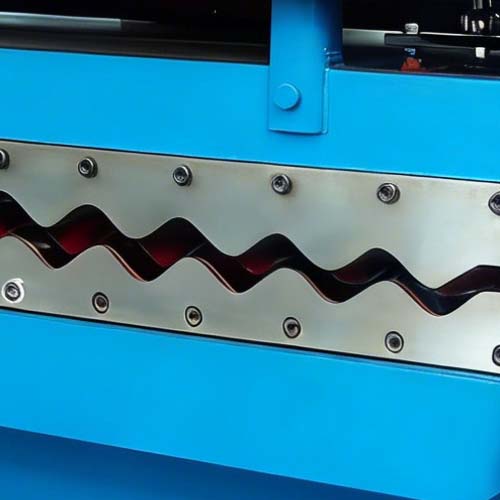

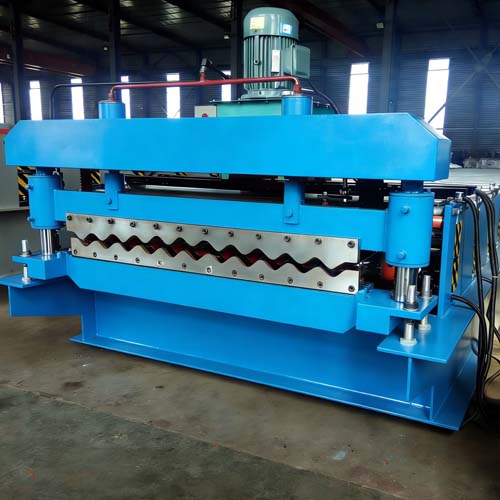

One of the most important features of this automatic corrugated roofing sheet forming machine is the advanced PLC intelligent control system with touchscreen interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems ensure precise sheet dimensions while minimizing material waste and improving raw material utilization. Optional automation configurations such as automatic stackers, servo feeding systems, production counters, and fault diagnosis systems can further improve production efficiency and lower labor costs in modern manufacturing facilities.
Corrugated roofing sheets produced by this equipment are widely used in factories, agricultural storage buildings, livestock farms, logistics warehouses, workshops, commercial buildings, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances rainwater drainage capability, and increases resistance against strong winds and harsh outdoor environmental conditions. These characteristics make corrugated roofing panels highly suitable for long-term outdoor applications in industrial and agricultural environments exposed to rain, humidity, sunlight, and temperature fluctuations.
Compared with traditional sheet fabrication methods, the corrugated roofing sheet forming machine delivers higher manufacturing efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, accurate profile dimensions, and smooth finished surfaces throughout the production process. For modern roofing material manufacturers, investing in automated corrugated roofing sheet forming equipment is an effective way to expand production capacity and strengthen competitiveness in the international construction materials industry.
