Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

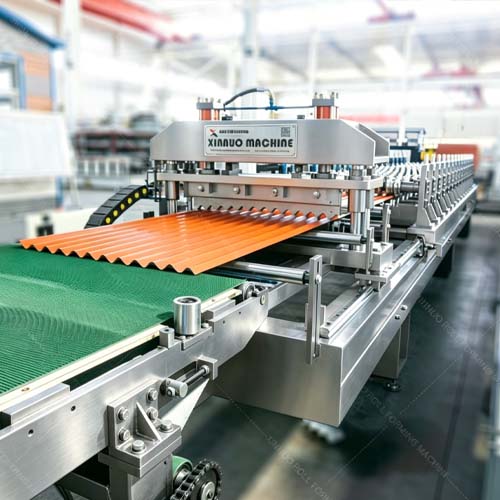

The Corrugated Iron Roofing Sheet Making Machine is a fully automatic roll forming production line designed for manufacturing corrugated iron roofing sheets and wall cladding panels widely used in industrial buildings, warehouses, agricultural facilities, workshops, logistics centers, commercial projects, and steel structure construction applications. With the continuous growth of global infrastructure development, corrugated iron roofing sheets have become one of the most popular building materials due to their lightweight structure, high strength, corrosion resistance, and cost-effective installation performance. This equipment provides manufacturers with a reliable and efficient solution for continuous production of corrugated iron sheets with stable forming quality and precise industrial performance.

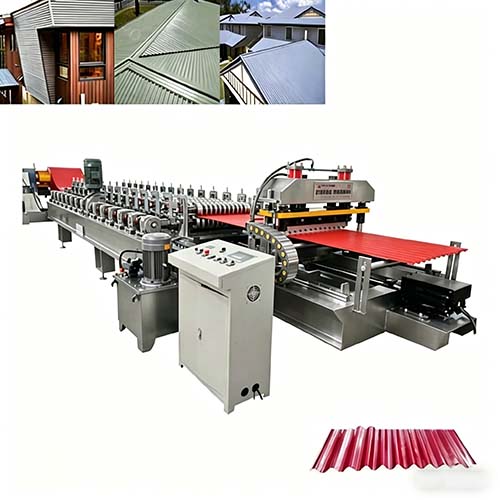

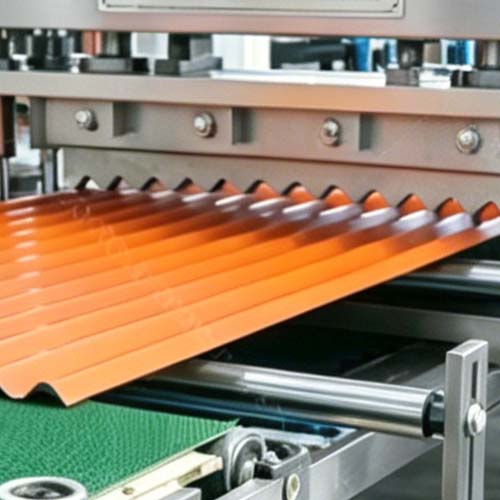

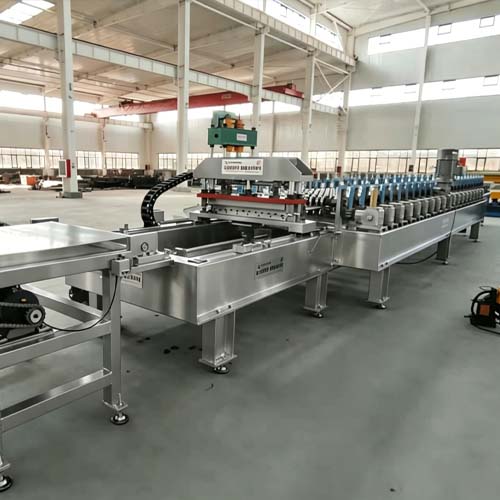

The complete production line generally consists of a hydraulic decoiler, feeding and guiding system, leveling platform, roll forming machine, hydraulic cutting system, PLC intelligent control cabinet, transmission mechanism, and finished product receiving table. During operation, metal coils are automatically uncoiled and continuously fed into the forming section. The flat iron sheet passes through multiple precision roller stations where it is gradually shaped into a corrugated roofing profile using advanced cold roll forming technology. The fully automated process ensures stable feeding speed, accurate corrugation dimensions, smooth surface quality, and consistent product output during long-term industrial production.
This corrugated iron roofing sheet making machine is suitable for processing different metal materials including galvanized iron coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), and other coated metal materials commonly used in roofing and wall cladding systems. The standard material thickness generally ranges from 0.3mm to 0.8mm depending on production requirements and profile designs. Feeding width, corrugation height, and sheet profile patterns can also be customized according to customer needs and regional construction standards. Various corrugated iron roofing sheet profiles can be produced for industrial roofing systems, warehouse roofing panels, wall cladding applications, fencing systems, and agricultural construction projects.

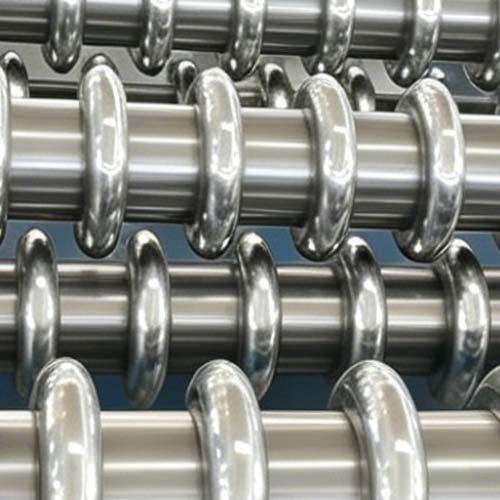

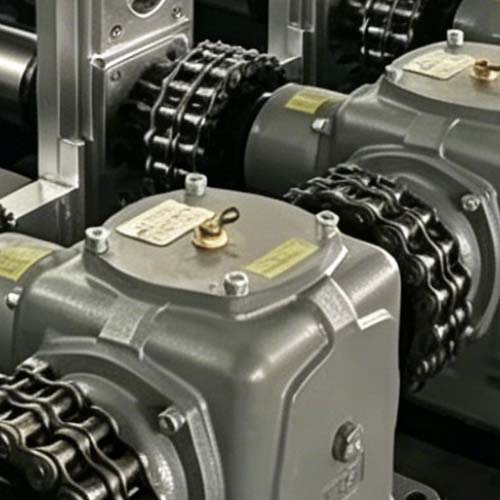

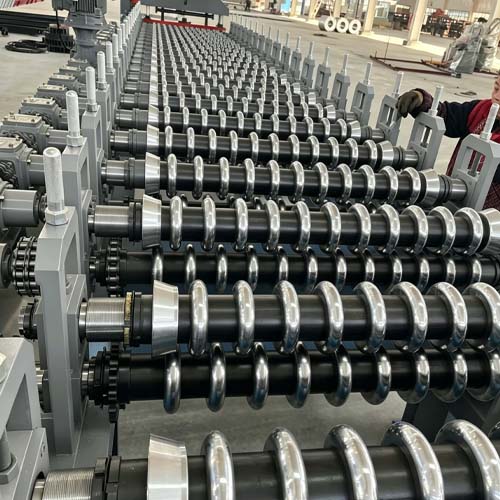

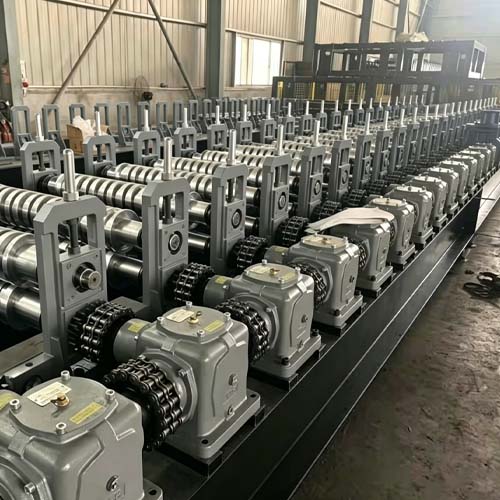

The forming rollers are manufactured from high-strength 45# forged steel with hard chrome plating treatment to improve hardness, wear resistance, and forming precision. Precision-machined shafts and industrial-grade transmission systems ensure stable machine operation and smooth forming performance during continuous high-speed production. The heavy-duty welded steel frame structure effectively reduces vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with durable hydraulic systems and reliable industrial motors, the machine can maintain efficient production capacity and long operational service life under demanding working conditions.

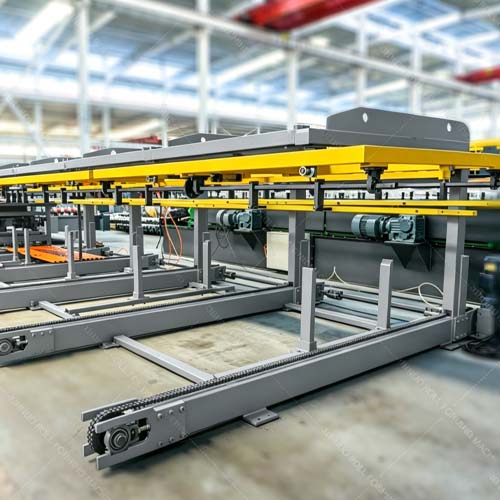

One of the key advantages of this automatic corrugated iron roofing sheet machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can easily set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems ensure precise sheet dimensions while reducing material waste and improving production efficiency. Optional automation configurations such as automatic stacking systems, servo feeding devices, production counters, and fault alarm functions can further enhance production automation and reduce labor costs for modern manufacturing facilities.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
