Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

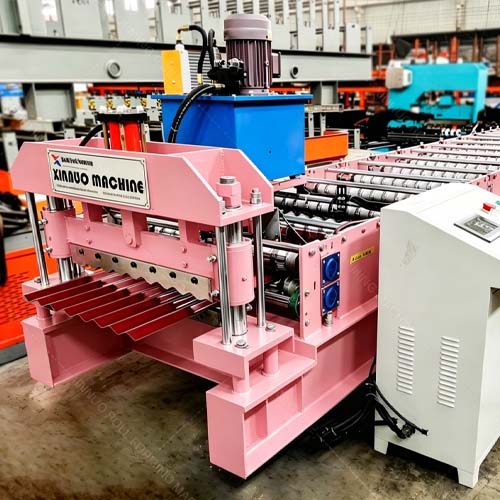

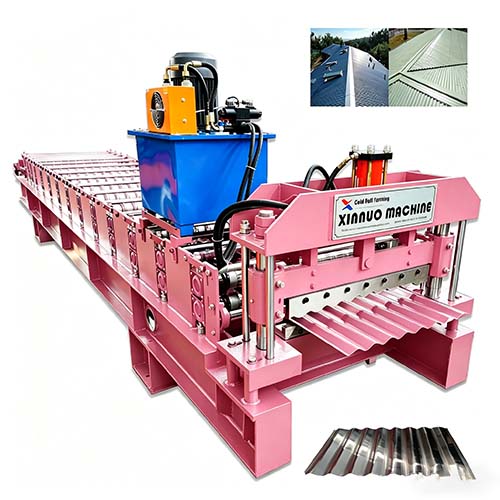

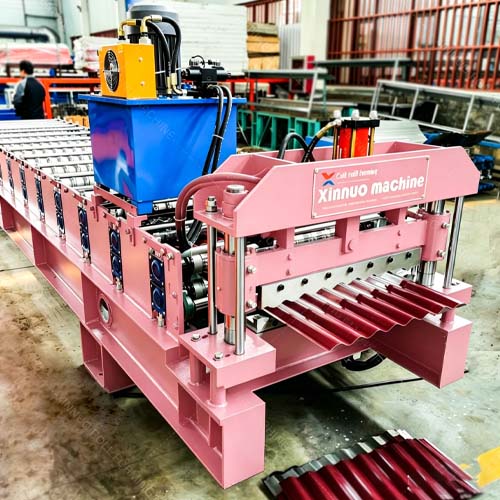

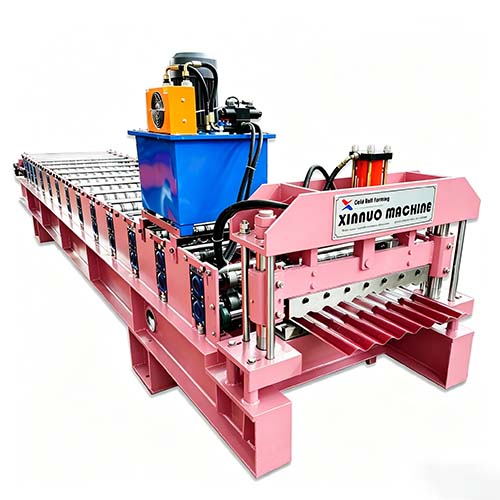

The Corrugated Steel Panel Roll Forming Machine is a fully automatic production system designed for manufacturing corrugated steel roofing sheets and wall cladding panels widely used in industrial buildings, warehouses, agricultural facilities, logistics centers, workshops, commercial complexes, and steel structure construction projects. With the continuous expansion of modern infrastructure development, corrugated steel panels have become a preferred roofing material due to their high strength, lightweight structure, corrosion resistance, and long service life. This equipment is engineered to deliver stable mass production with consistent forming precision and reliable industrial performance.

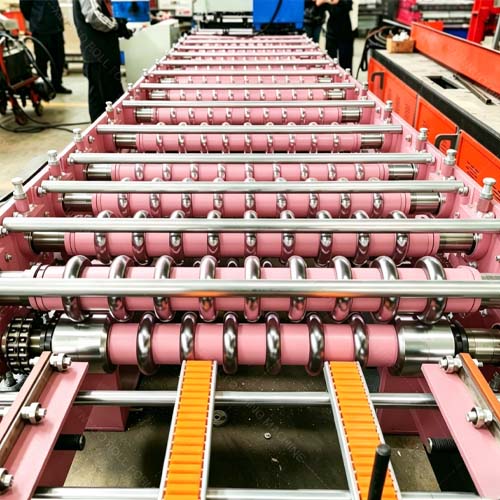

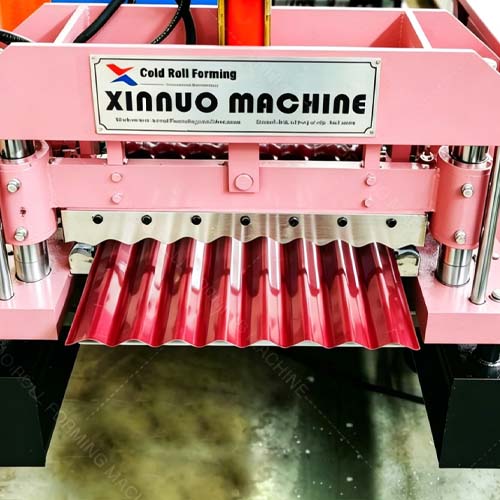

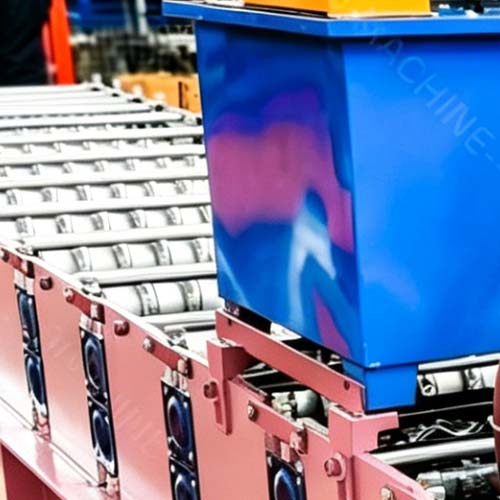

The complete production line integrates multiple functional sections, including a hydraulic uncoiler, sheet feeding and leveling system, guiding device, precision roll forming unit, automatic hydraulic cutting mechanism, PLC intelligent control cabinet, transmission system, and finished product collection table. During operation, steel coils are automatically unwound and smoothly guided into the forming system. The flat steel sheet passes through a series of roller stations where it is gradually shaped into a corrugated profile with uniform wave structure, accurate dimensions, and clean surface quality. The entire process is fully automated, ensuring stable production speed and high consistency in output.
This corrugated steel panel roll forming machine is suitable for processing a variety of materials such as galvanized steel coils, galvalume steel sheets, color-coated steel (PPGI/PPGL), and aluminum sheets. It supports material thickness ranging from 0.3mm to 0.8mm depending on production requirements. The system allows flexible customization of panel width, corrugation height, and profile design, enabling manufacturers to meet different construction standards and architectural specifications across global markets.

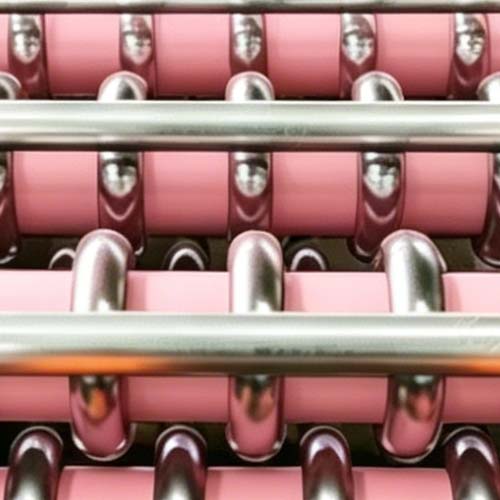

The machine structure is built with a reinforced welded steel frame to ensure high rigidity and long-term operational stability. Roll forming rollers are manufactured from high-strength alloy steel and undergo precision machining with hard chrome plating treatment to enhance wear resistance, surface durability, and forming accuracy. The synchronized drive system ensures smooth material transmission, reduces vibration, and maintains consistent product quality during continuous production.

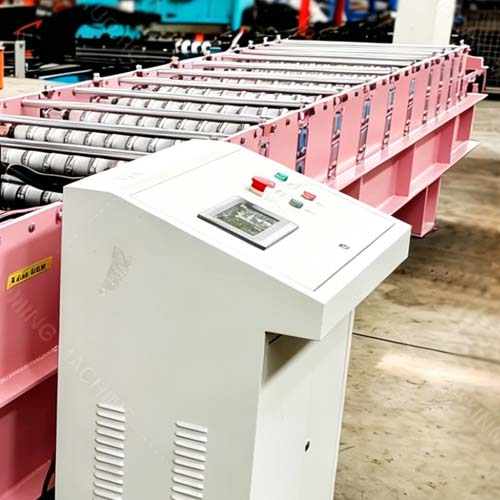

A key feature of this corrugated steel panel roll forming machine is its advanced PLC control system with a touchscreen interface. Operators can easily set production parameters such as sheet length, batch quantity, and cutting accuracy. The system automatically coordinates feeding speed, forming process, and cutting operation, reducing manual intervention and improving production efficiency. Additional functions such as automatic stacking systems, production counters, and safety alarm systems can further enhance automation and operational safety.
