Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

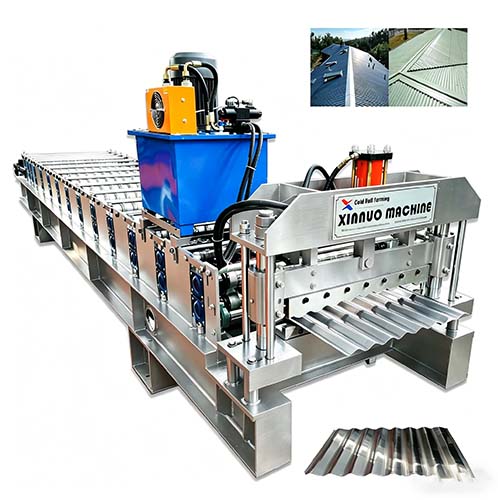

The Corrugated Sheet Machine is a fully automated roll forming production line designed for manufacturing corrugated metal roofing sheets and exterior wall cladding panels used in industrial buildings, warehouses, agricultural facilities, logistics hubs, workshops, commercial complexes, and steel structure construction projects. With the rapid development of modern infrastructure and prefabricated construction systems, corrugated metal sheets have become one of the most widely adopted roofing materials due to their high structural strength, lightweight design, corrosion resistance, and long service life. This equipment is built to support efficient continuous production with stable quality and precise forming results.

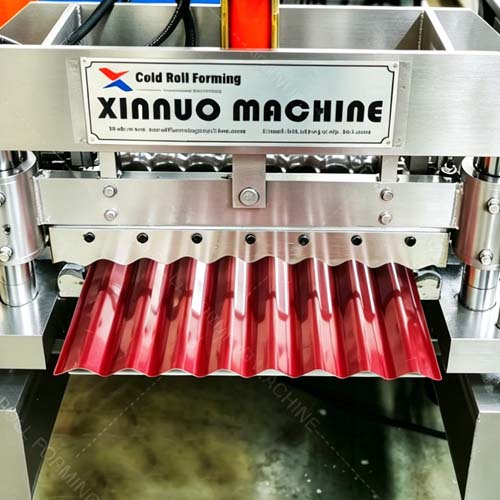

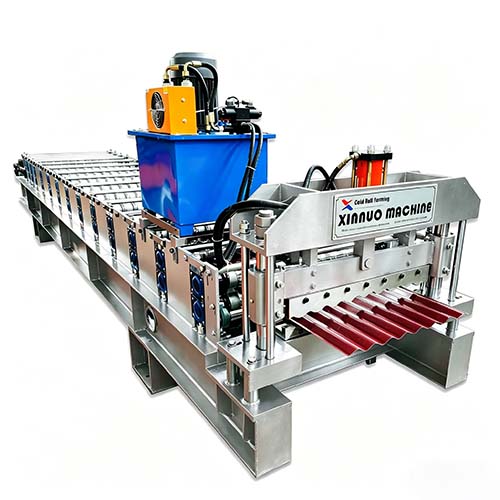

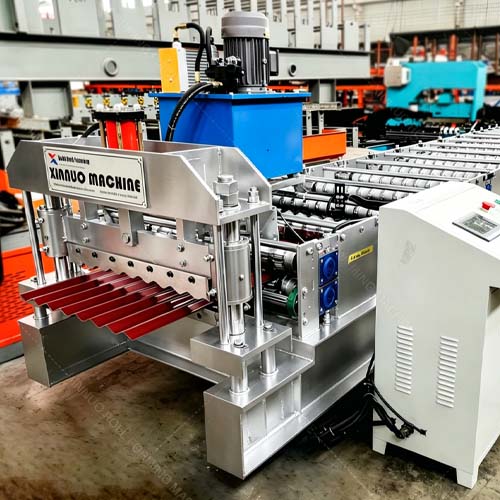

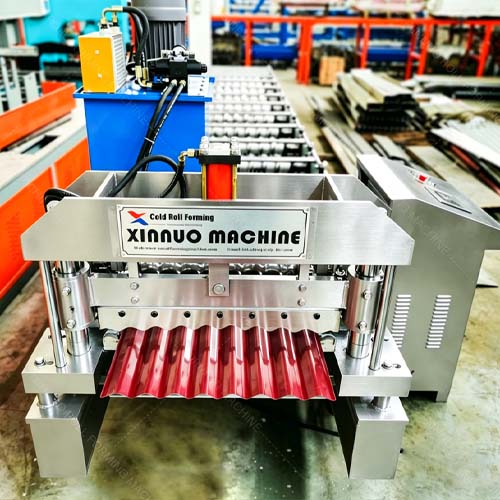

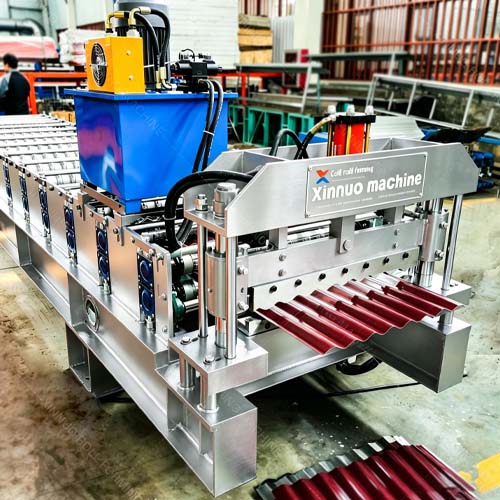

The complete production system includes several coordinated components such as a hydraulic coil uncoiler, sheet feeding and alignment system, leveling mechanism, precision roll forming unit, automatic hydraulic cutting device, PLC control system, power transmission structure, and finished sheet receiving platform. In operation, steel coils are first loaded onto the uncoiler and then smoothly guided through the feeding section. The material passes through multiple forming rollers that gradually shape the flat sheet into a standardized corrugated profile with uniform wave structure and clean surface finish. The entire process is continuous and fully automated, ensuring stable output and high production efficiency.
This corrugated sheet machine is designed to process a variety of raw materials, including galvanized steel coils, galvalume steel sheets, color-coated steel (PPGI/PPGL), and aluminum sheets. It typically supports material thickness ranging from 0.3mm to 0.8mm. The machine can be adjusted to produce different corrugated specifications, such as wave height, pitch distance, and sheet width, allowing manufacturers to meet diverse architectural requirements and regional construction standards.

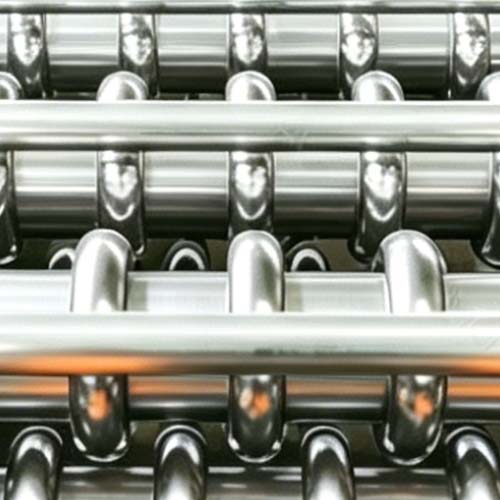

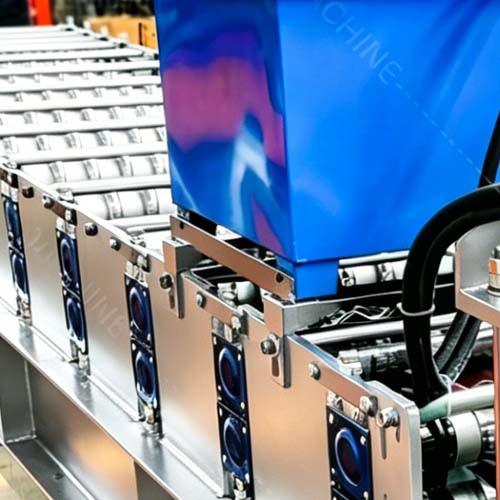

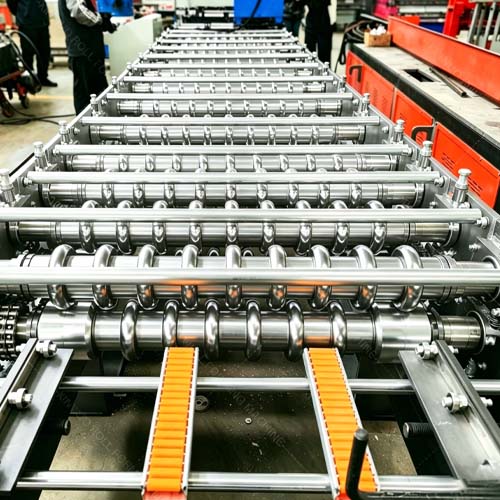

The main frame is constructed using reinforced welded steel to ensure long-term structural stability and resistance to deformation during high-speed operation. Rollers are manufactured from high-quality alloy steel and treated with hard chrome plating to improve wear resistance, surface smoothness, and forming accuracy. The synchronized drive system ensures consistent material feeding and reduces vibration, resulting in improved product quality and longer equipment lifespan.

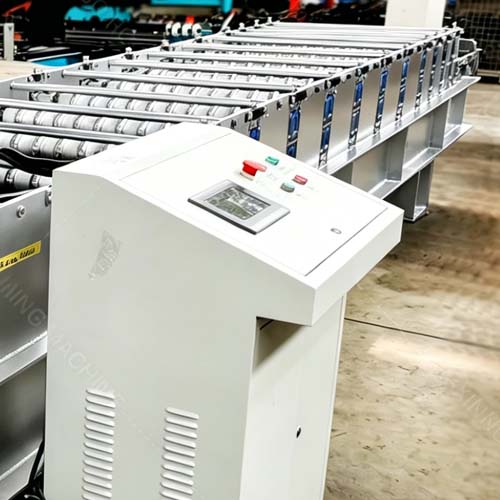

The PLC intelligent control system is one of the key features of this corrugated sheet machine. It is equipped with a touchscreen interface that allows operators to easily configure production settings such as sheet length, batch quantity, and cutting precision. The system automatically coordinates feeding, forming, and cutting functions, reducing manual intervention and increasing operational efficiency. Additional functions such as automatic stacking systems, production monitoring, and safety protection alarms can be optionally integrated to further enhance automation levels.
Corrugated sheets produced by this machine are widely used in industrial roofing systems, warehouse buildings, agricultural structures, temporary shelters, wall cladding systems, and large-span steel construction projects. The corrugated design improves load-bearing capacity, enhances water drainage efficiency, and increases resistance to wind pressure and harsh weather conditions, making it suitable for long-term outdoor applications.
Compared with traditional manufacturing methods, this corrugated sheet machine offers higher automation, improved production consistency, and reduced labor costs. It supports continuous operation, enabling manufacturers to achieve large-scale output with stable quality. For modern metal roofing manufacturers, this equipment provides a practical and efficient solution to expand production capacity and strengthen competitiveness in the global construction materials industry.
