Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

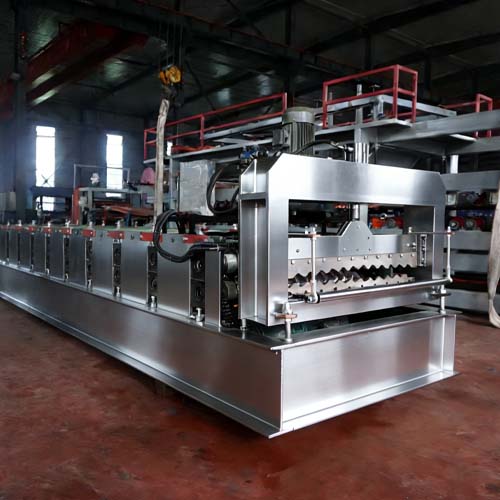

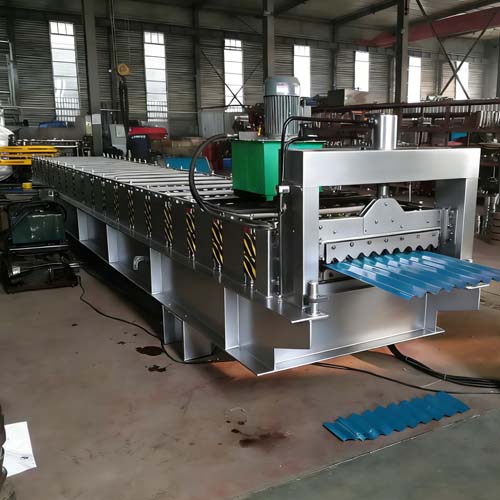

The Corrugated Metal Machine is a high-performance cold roll forming production system designed for manufacturing corrugated metal roofing sheets and wall cladding panels used in industrial factories, warehouses, agricultural buildings, workshops, logistics centers, commercial facilities, and steel structure construction projects. With the rapid development of modern infrastructure and industrial construction worldwide, corrugated metal sheets have become one of the most widely used roofing and cladding materials because of their lightweight structure, excellent corrosion resistance, strong durability, and economical installation advantages. This machine offers manufacturers an efficient and fully automated solution for producing high-quality corrugated metal panels with stable forming precision and continuous production capability.

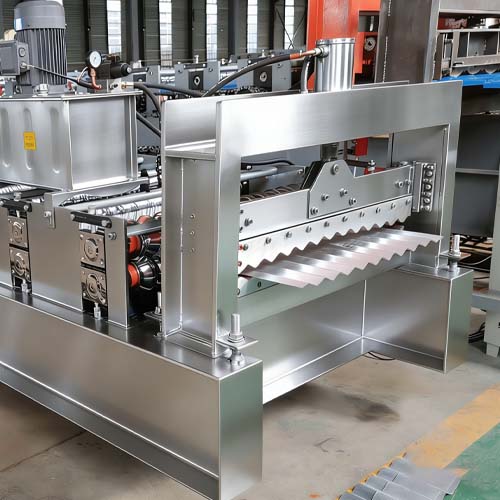

The complete production line generally includes a hydraulic decoiler, sheet feeding and guiding platform, leveling device, roll forming machine, hydraulic cutting station, PLC automatic control cabinet, transmission mechanism, and finished product receiving table. During operation, steel coils are automatically uncoiled and continuously fed into the roll forming section. The flat metal sheet passes through multiple precision roller stations where it is gradually formed into a corrugated profile using advanced continuous cold roll forming technology. The automated manufacturing process ensures stable material feeding, accurate corrugation dimensions, smooth surface quality, and reliable production performance during long-term industrial operation.
This corrugated metal machine can process different types of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials commonly used in roofing and wall cladding systems. The standard processing thickness generally ranges from 0.3mm to 0.8mm depending on customer requirements and profile configurations. Feeding width, corrugation height, and profile designs can also be customized according to local construction standards and market demands. Different corrugated panel profiles can be manufactured for roofing systems, industrial wall panels, warehouse roofs, fencing applications, and agricultural construction projects.

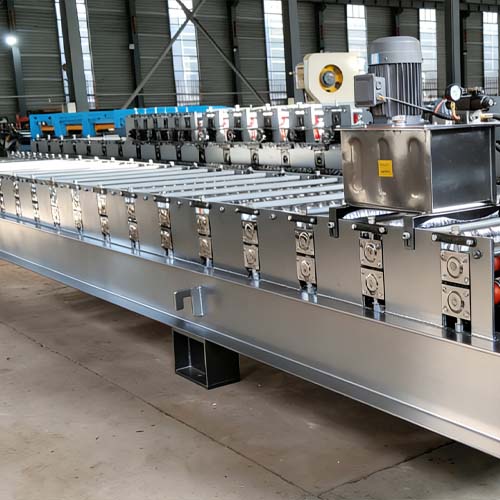

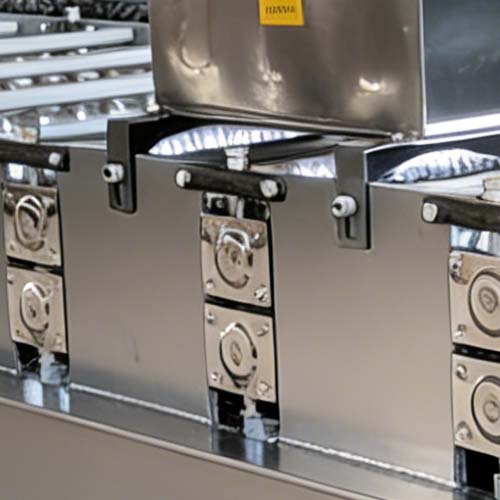

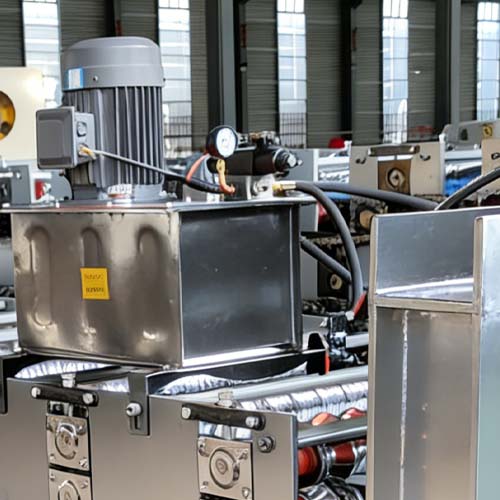

The forming rollers are manufactured from high-strength 45# forged steel with hard chrome plating treatment, improving roller hardness, wear resistance, and profile precision. Precision-machined shafts and industrial-grade transmission systems ensure stable operation and smooth forming performance during continuous high-speed production. The heavy-duty welded steel machine frame structure effectively reduces vibration and maintains accurate profile forming throughout industrial manufacturing processes. Combined with reliable hydraulic systems and industrial motors, the equipment can maintain efficient production capacity and long operational service life.

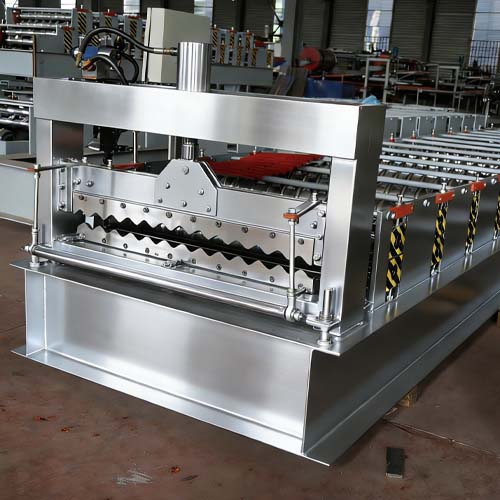

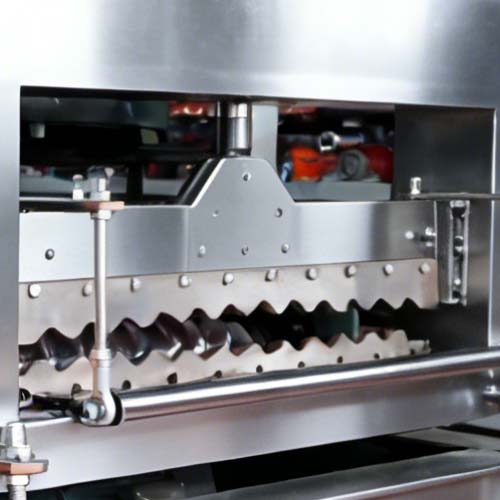

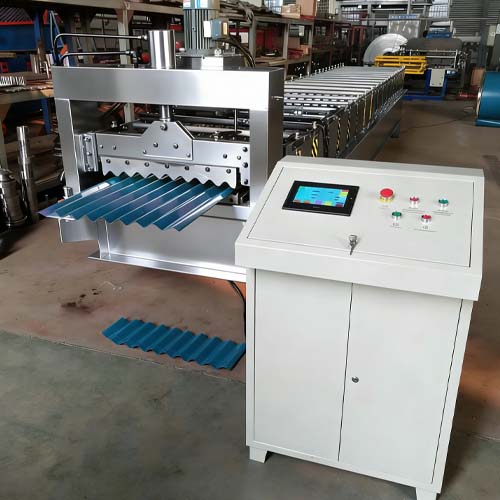

One of the key features of this automatic corrugated metal machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while reducing material waste and improving raw material utilization efficiency. Optional automation systems such as automatic stackers, servo motor feeding devices, production counters, and fault alarm functions can further improve production efficiency and lower labor costs for modern manufacturing facilities.

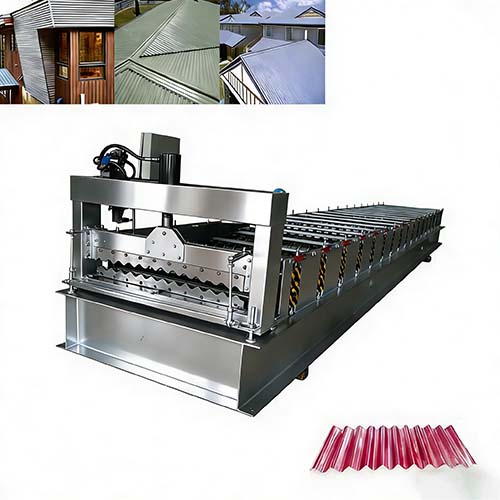

Corrugated metal sheets produced by this equipment are widely used in industrial factories, agricultural storage facilities, livestock farms, logistics warehouses, workshops, commercial buildings, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances rainwater drainage performance, and increases resistance against strong wind pressure and harsh outdoor weather conditions. These characteristics make corrugated roofing panels highly suitable for long-term outdoor applications in industrial and agricultural environments exposed to rain, sunlight, humidity, and temperature fluctuations.
Compared with conventional sheet processing methods, the corrugated metal machine delivers higher manufacturing efficiency, lower operational costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, smooth surface finishes, and accurate profile dimensions throughout the production process. For modern roofing sheet manufacturers, investing in automated corrugated metal forming equipment is an effective way to increase manufacturing capacity and strengthen competitiveness in the international construction materials industry.
