Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

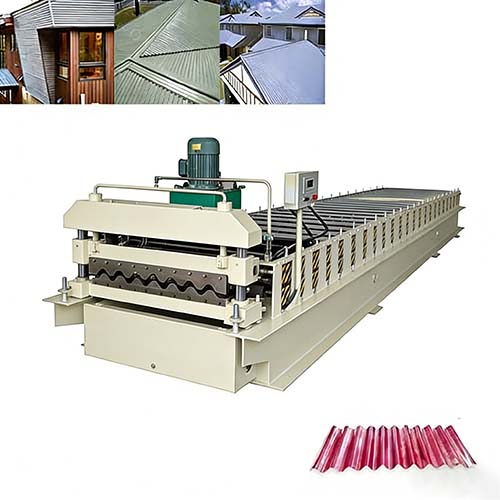

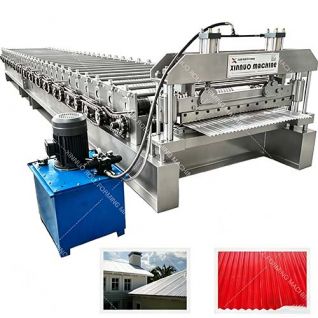

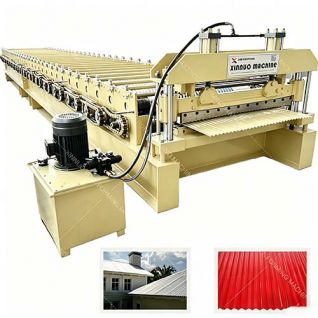

The Corrugated Steel Panel Roll Forming Machine is a high-efficiency automatic production system specially designed for manufacturing corrugated steel roofing panels and wall cladding sheets used in industrial buildings, warehouses, agricultural structures, logistics centers, workshops, factories, and steel structure construction projects. As modern infrastructure and industrial construction continue to expand globally, corrugated steel panels have become one of the most popular building materials because of their excellent strength, lightweight design, weather resistance, and long operational lifespan. This machine provides manufacturers with an advanced solution for producing high-quality corrugated steel panels through stable and continuous automated production.

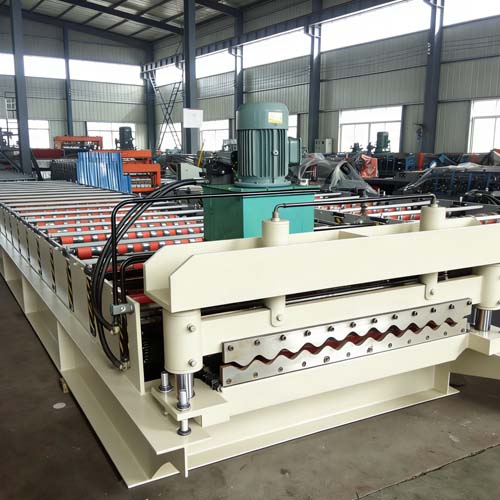

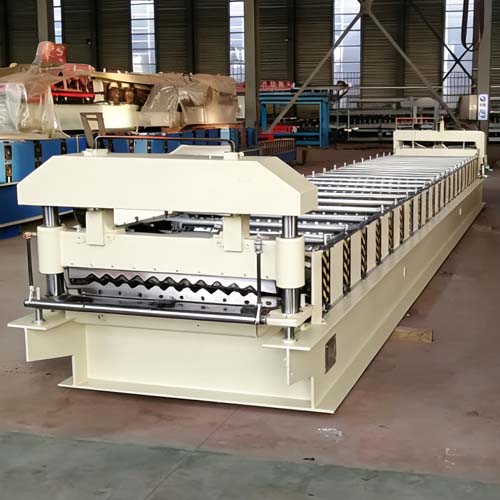

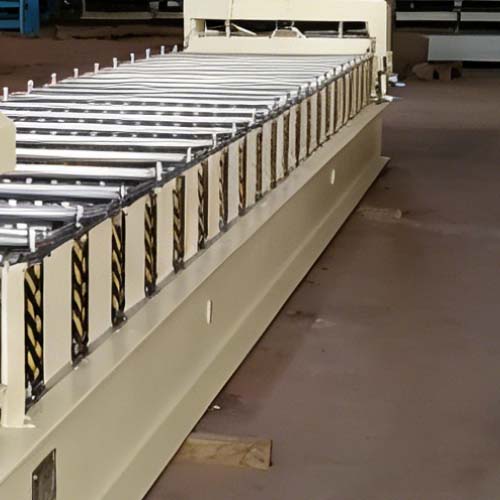

The complete production line generally includes a hydraulic decoiler, feeding and leveling system, sheet guiding platform, roll forming machine, hydraulic cutting station, PLC intelligent control cabinet, drive transmission system, and finished product receiving table. During operation, metal coils are automatically uncoiled and smoothly fed into the forming section. The flat steel sheet gradually passes through multiple precision roller stations where it is continuously formed into a corrugated panel profile using advanced cold roll forming technology. The automated production process ensures stable feeding, precise corrugation dimensions, smooth sheet surfaces, and consistent product quality during long-term industrial manufacturing.
This corrugated steel panel roll forming machine can process different kinds of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials used in roofing and cladding applications. The standard processing thickness usually ranges from 0.3mm to 0.8mm depending on project requirements and profile configurations. Feeding width, corrugation height, and profile patterns can also be customized according to customer specifications and regional construction standards. Various corrugated steel panel designs can be produced for industrial roofing systems, wall cladding panels, warehouse roofing, fencing applications, and agricultural construction projects.

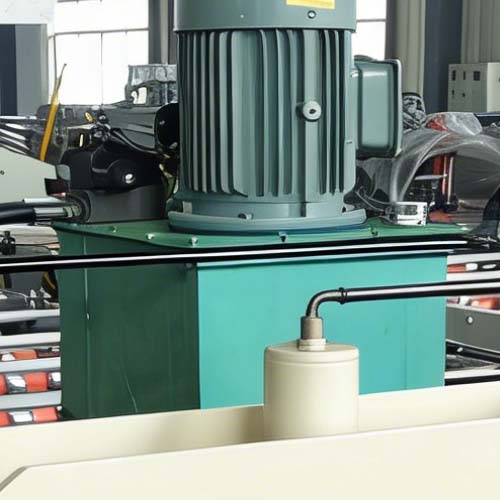

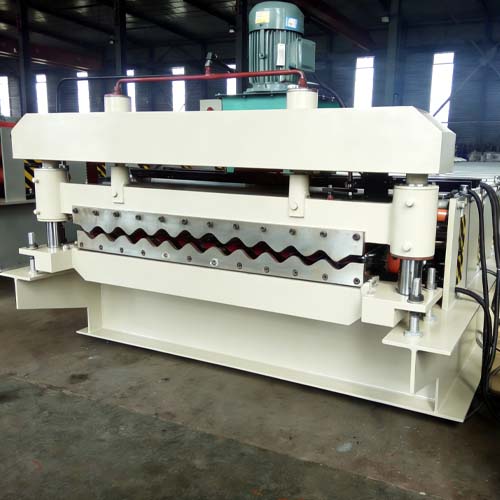

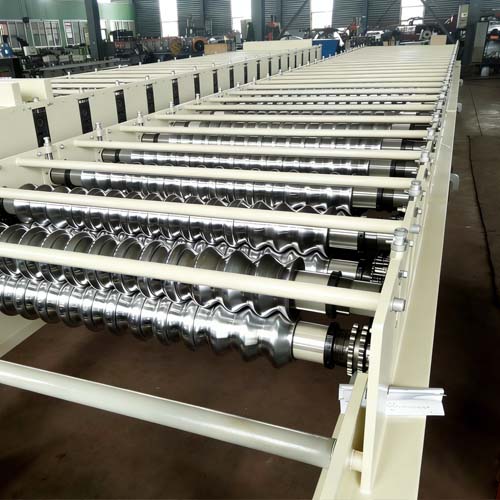

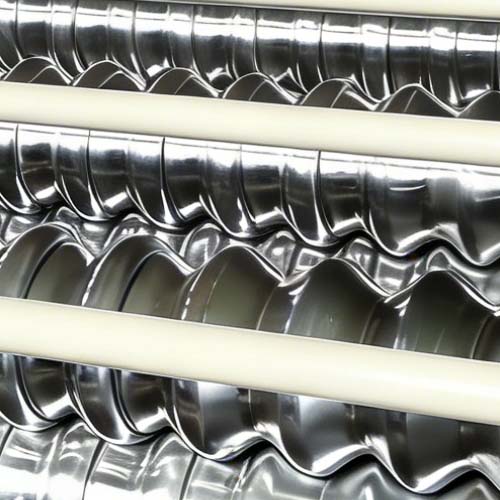

The forming rollers are manufactured from premium 45# forged steel with hard chrome plating treatment to improve roller hardness, wear resistance, and profile precision. Precision-machined shafts and industrial-grade transmission systems ensure smooth operation and stable forming performance during continuous high-speed production. The heavy-duty welded machine frame effectively reduces vibration and maintains equipment stability throughout industrial manufacturing processes. Combined with reliable hydraulic systems and powerful industrial motors, the machine can maintain efficient production capacity and long operational service life.

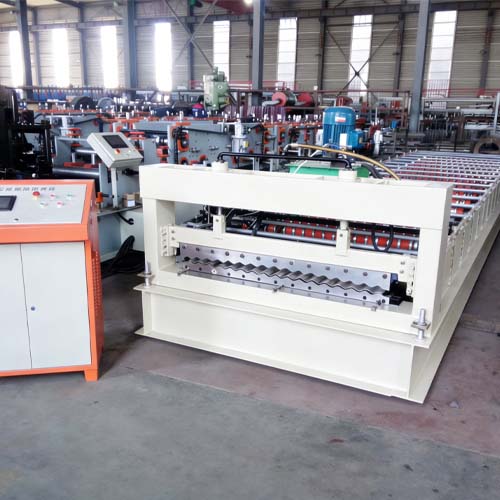

One of the most important advantages of this automatic corrugated steel panel roll forming machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently adjust production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee accurate sheet dimensions while reducing production waste and improving raw material utilization. Optional automation configurations such as automatic stackers, servo motor feeding systems, production counters, and fault alarm functions can further improve production efficiency and reduce labor requirements in modern manufacturing facilities.
Corrugated steel panels produced by this equipment are widely used in industrial factories, agricultural storage buildings, livestock farms, logistics warehouses, workshops, commercial facilities, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances water drainage performance, and increases resistance against strong winds and severe outdoor weather conditions. These advantages make corrugated steel roofing panels highly suitable for long-term outdoor use in industrial and agricultural environments.
Compared with traditional sheet fabrication methods, the corrugated steel panel roll forming machine offers significantly higher manufacturing efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, smooth sheet surfaces, and accurate profile dimensions throughout the production process. For modern roofing panel manufacturers, investing in automated corrugated steel panel forming equipment is an effective solution for expanding production capacity and strengthening competitiveness in the international construction materials industry.
