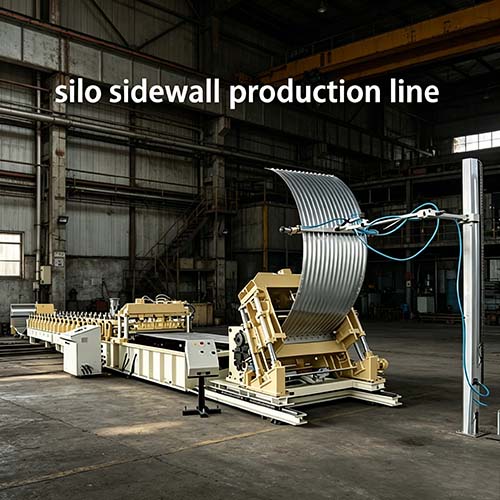

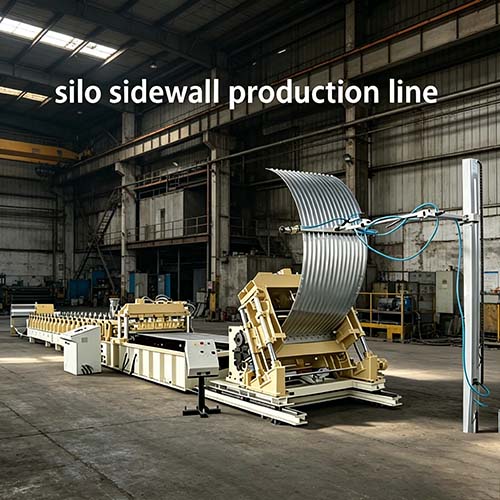

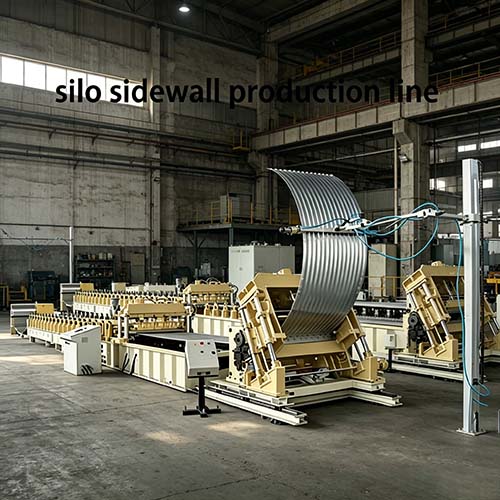

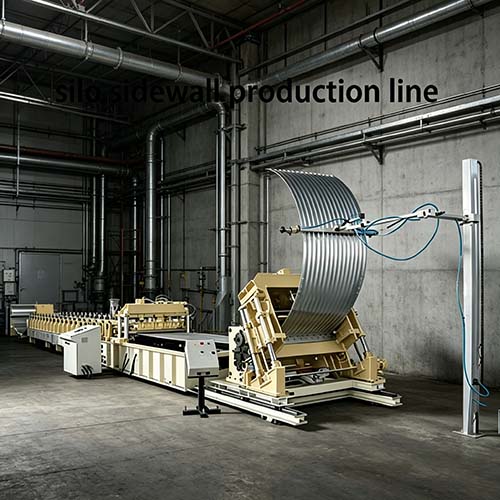

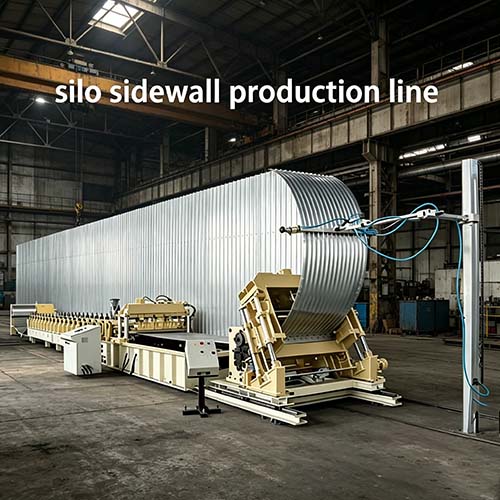

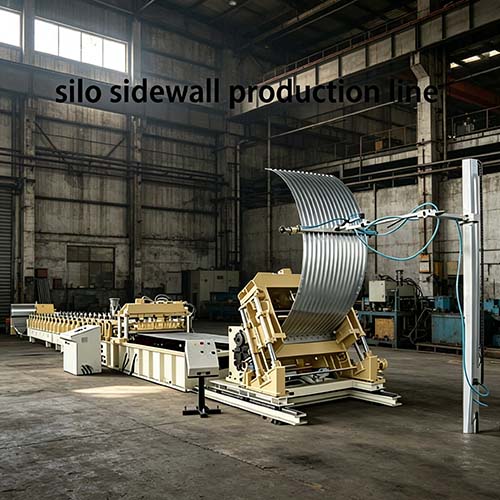

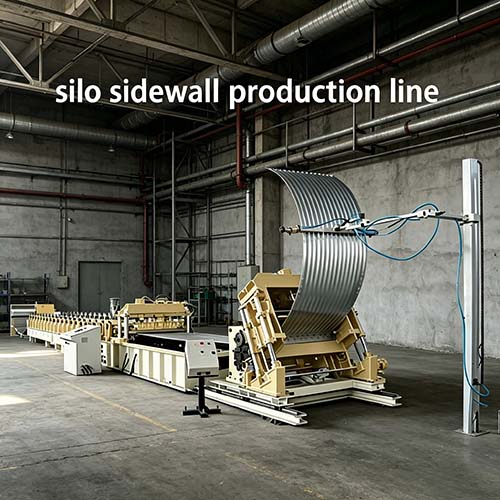

silo roll forming machine

Grain silo is a storage tool made of riveted, welded or assembled steel plates, mainly used to store powdered and granular grain materials. Common shapes of steel silos include round and square. According to different structures, they can be divided into welded, assembled and spiral types. As a leading company in the assembled silo manufacturing industry,XINNUO focuses on designing and manufacturing high-quality silo manufacturing machinery.

 Working Speed 5– 12m/min

 Total power 5.5 – 75kw

 Max Dimension (LxWxH) 12×2.3×1.8m

 Weight of machine 20– 28tons

 Material thickness 0.15 – 0.5mm

 Material width 1000;1200;1250;1450;1500mm

Suitable material Galvanized Steel

Roller station 18 – 30

What are the components and functions of the grain steel silo roll forming machine?

Loading and uncoiling system: Load the steel plate coil into the decoiler and carry out preliminary unfolding and processing.

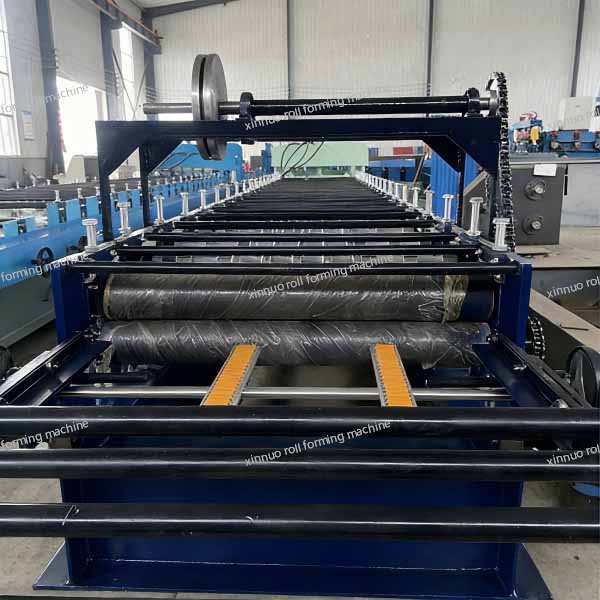

‌Steel plate clamping and leveling system: Through the clamping and leveling device, the steel plate is kept flat during the transportation process to avoid distortion or deformation.

‌Servo punching system: Use the servo motor to control the punching to ensure the accuracy of the punching position and the stability of the punching process.

‌Cutting system: Cut the steel plate to a predetermined length as needed to ensure the accurate size of the warehouse plate.

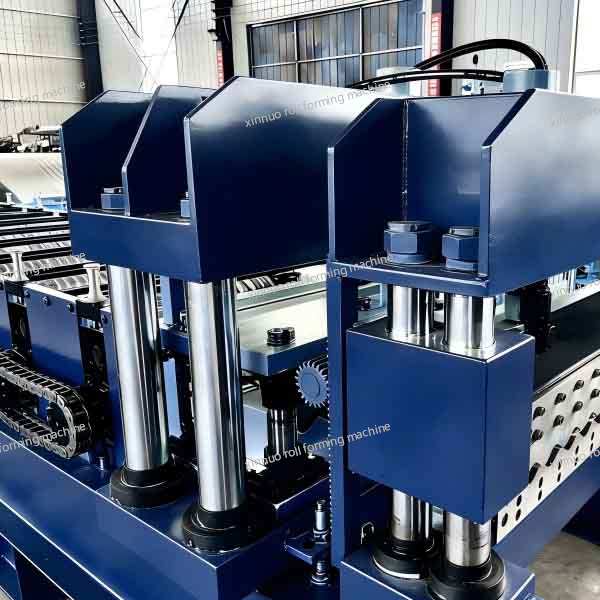

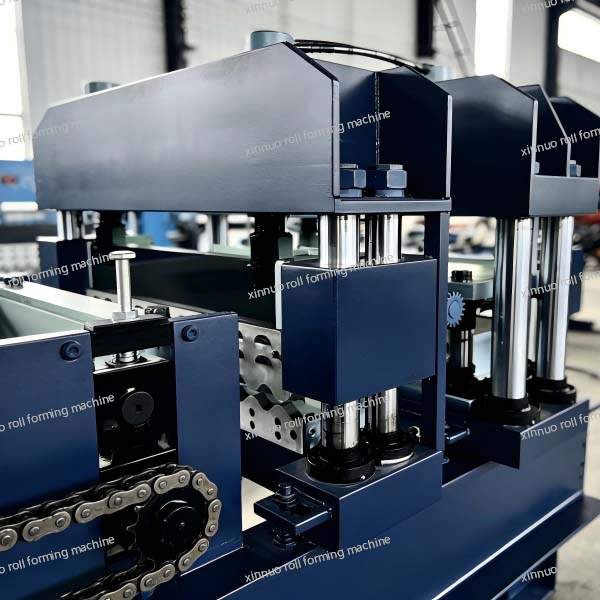

Roll forming system: Bend the steel plate into the required warehouse plate shape through the roll forming technology.

‌Material support system: Provide support during the forming process to ensure that the steel plate will not deform during the bending process.

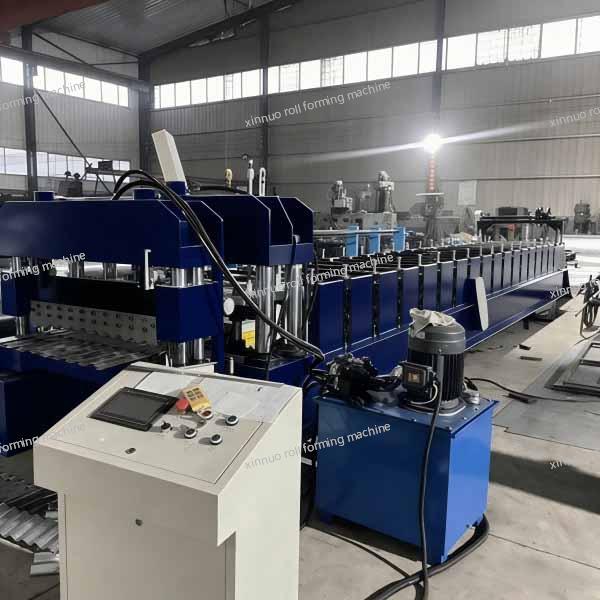

‌Hydraulic system: Provide power support to ensure the normal operation of each system.

‌Automatic control system: Automated control of the entire production process to improve production efficiency and precision.

‌Grain steel plate silos are mainly used for agricultural and industrial grain storage. They have the advantages of durability, large storage capacity and short construction period, which makes them widely used in the field of grain storage.
