Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

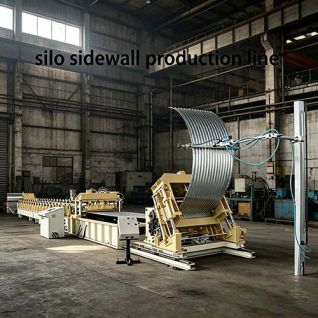

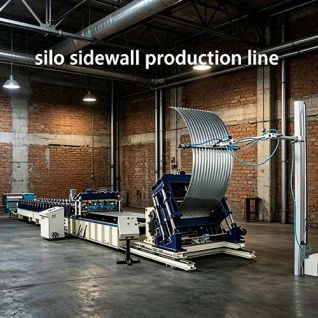

Fabrication des silos de stockage Silo Machine Production Line did the grain silo corrugated sheet is a grain storage made of grain silo corrugated sheet,feed bin storage.Our products includes flat bottom silos, hopper bottom silos and allrequired accessories in order to provide worldwide customized spiral silo for the agricultural industry.This steel silo panel roll forming machine with different languages good for operation .
Fabrication des silos de stockage Silo Machine Production Line technical details
| Fabrication des silos de stockage Silo Machine Production Line | ||
| Components | Items | Specifications |
|
Roll Forming Machine part |
Forming station | 20 rollers |
| Material of rollers | Bearing steel GCR15, with chrome coated and quenching treatment. | |
| Diameter of shaft | 110 mm solid, with tempering heat treatment. | |
| Material of shafts | 45# steel with tempering treatment | |
| Main Power | 15 Kw (K serious main motor power) | |
| Main frame system | 450mm H beam structure with tempering heat treatment,wall panel thickness 25 mm heavy duty. | |
| Transmission | By 1.0 inch double hanging drive chain | |
| Bearing | 6214 ball bearing | |
| Curving machine | Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts. | |
| Curving Radius: ≥8m | ||
| Side Perforation Part | 2 groups, cylinder diameter 80mm, manual adjustment of punching position | |
| Horizontal head perforation part | Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick. | |
| Cutting System | Cutting Cut off method |
Hydraulic cutting |
| Drive | Driven by two Ø 110 cylinders | |
| Cutting die material | Cr12,processing technology: rough material milling machine processing – vacuum heat treatment HRC58-60 – flat grinding processing end face – wire cutting processing outline – engraving machine fine carving shape. | |
| Electric control system | Parameter settings | Through Touch Screen |
| PLC and Transducer | DELTA From Taiwan | |
| Control box | Vertical independent electric control cabinet | |
| Control type | By 7 inch touch screen | |
| Touch screen language | Chinese, English, Spanish | |
| Voltage | 380V,50HZ,3phase or customized | |
| Length measurement | Omron counter | |

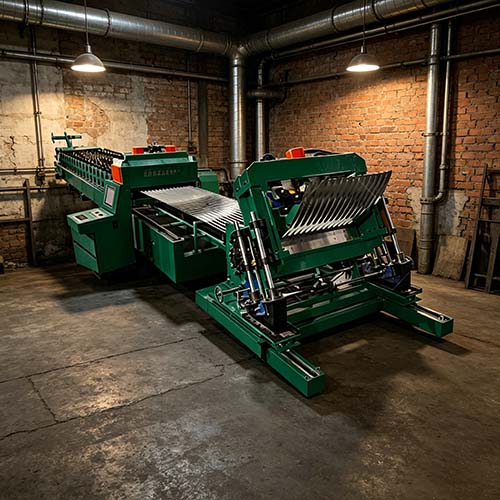

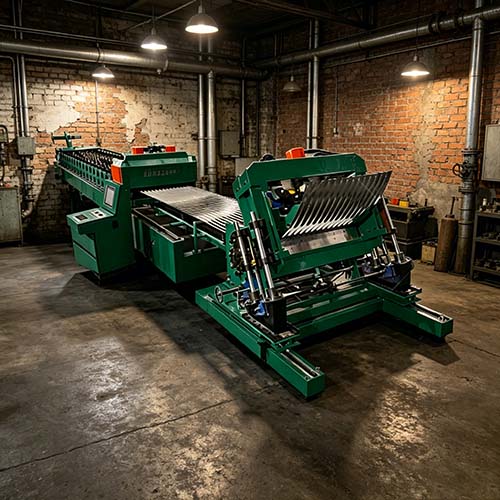

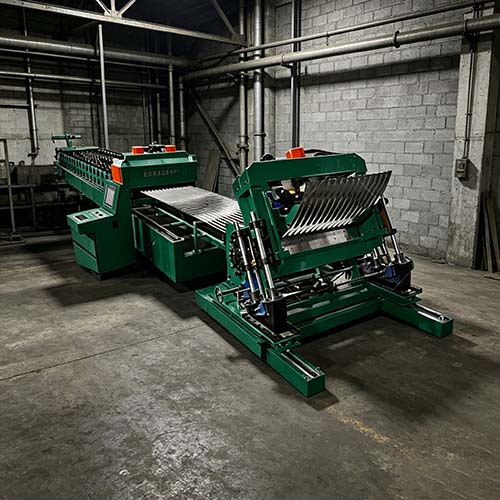

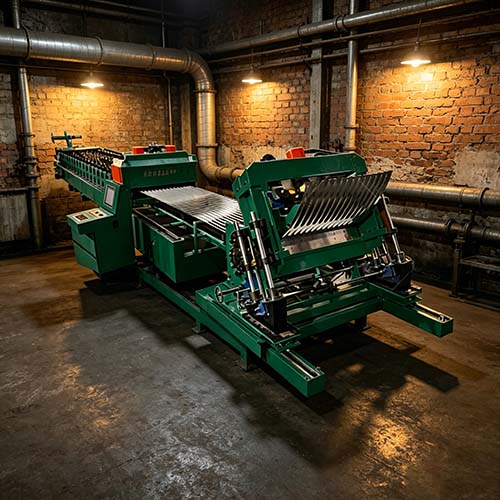

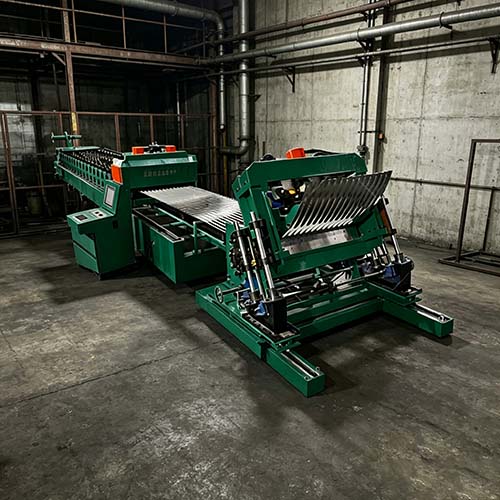

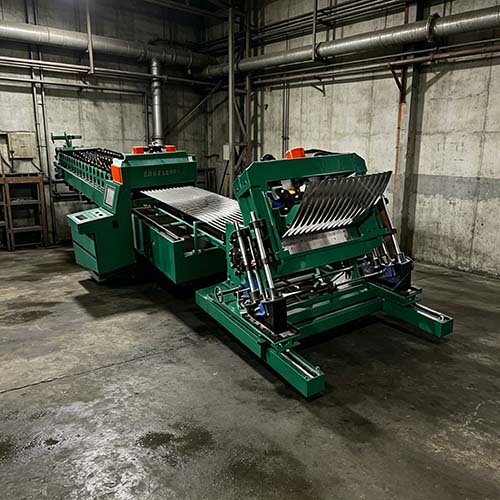

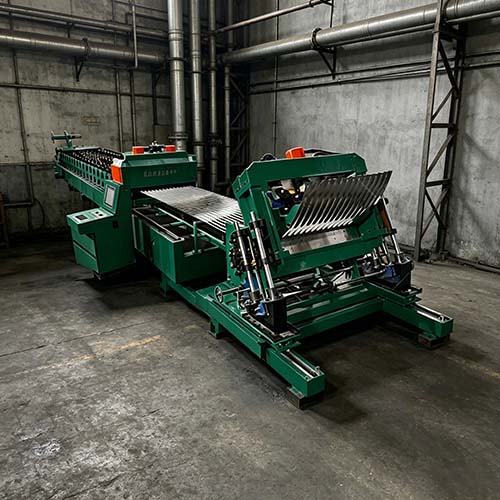

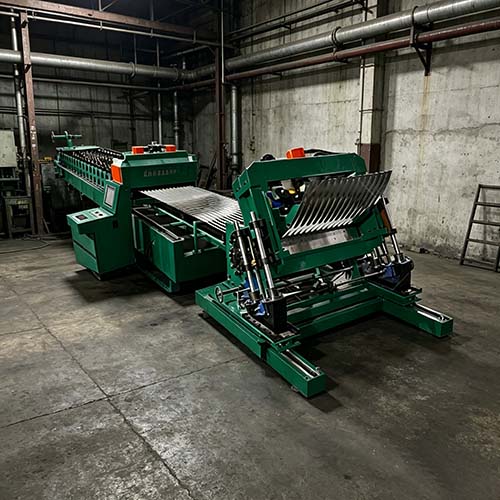

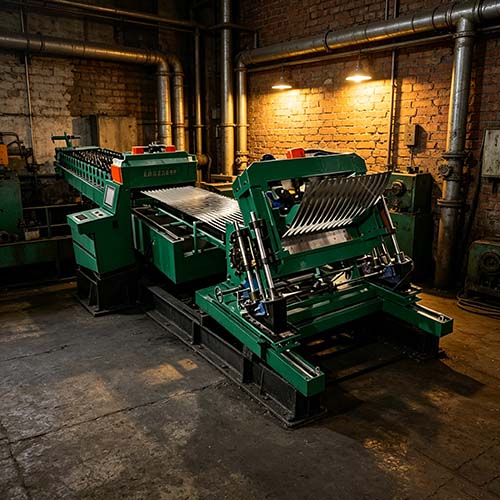

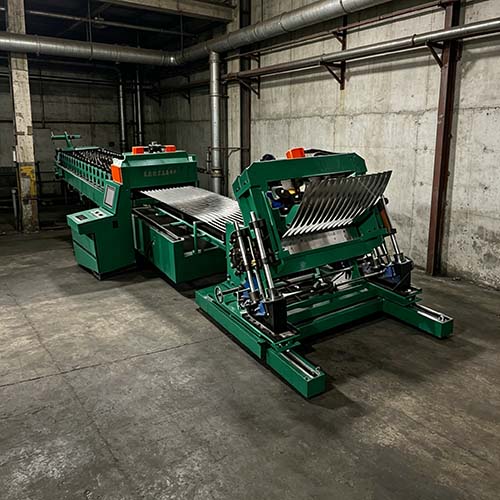

Fabrication des silos de stockage Silo Machine Production Line more photos showing
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
