Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

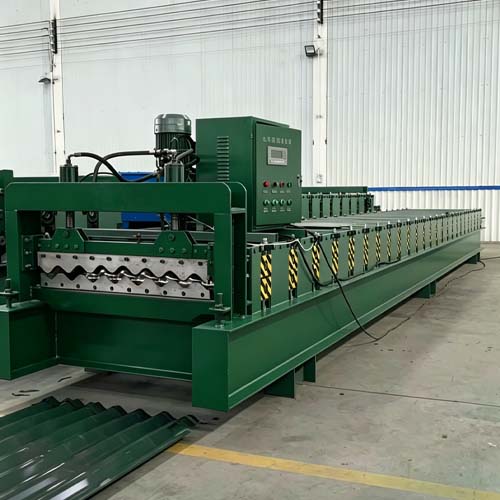

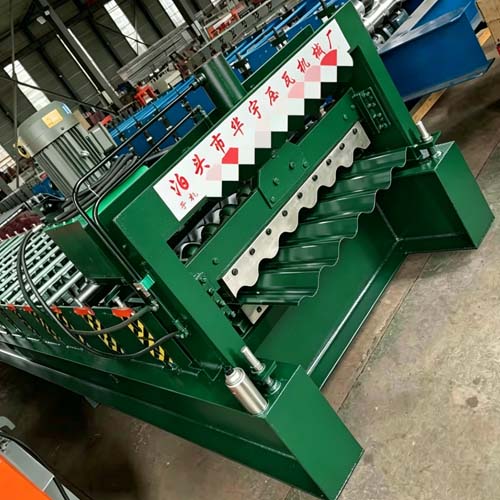

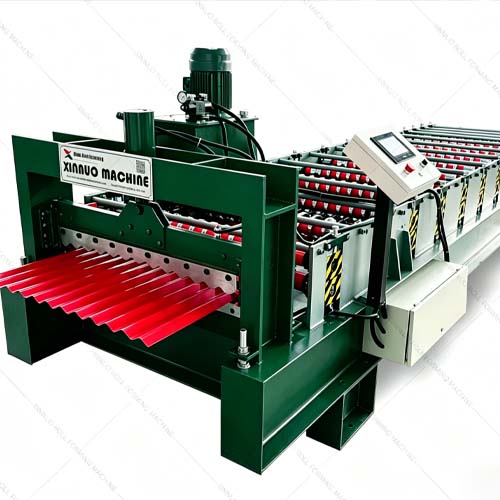

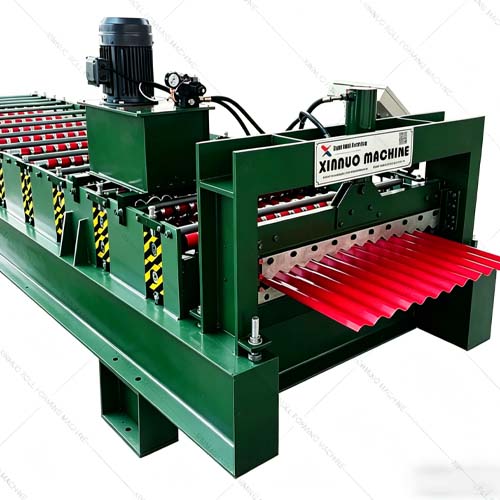

iron sheets making machine corrugated roofing：

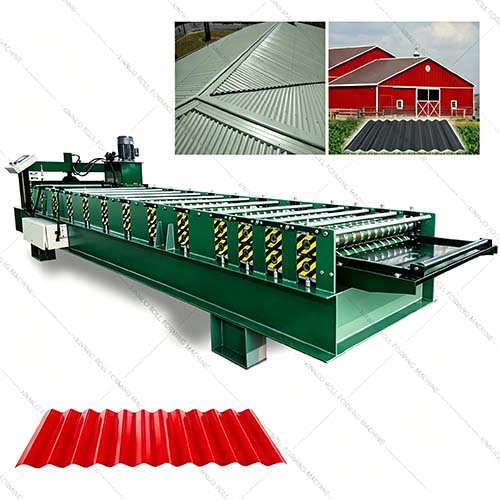

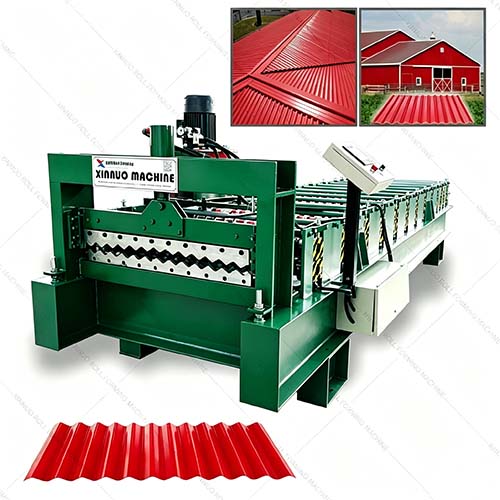

iron sheets making machine corrugated roofing has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet.
The roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.
It has advantage of pretty appearance, durable using and so on.
|
No.
|
iron sheets making machine corrugated roofing
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13 Rows
|
|
3
|
Dimensions
|
6.8*1.6*1.7m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|

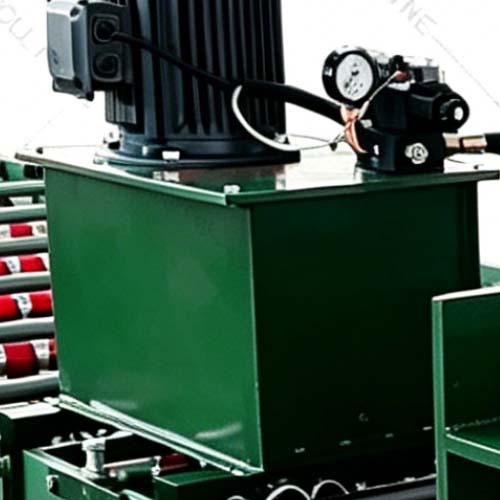

Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|

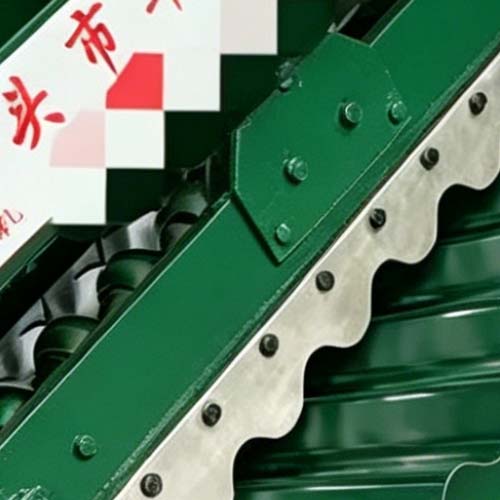

Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
iron sheets making machine corrugated roofing Packing&Shipping
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
After Sales Service of iron sheets making machine corrugated roofing
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
