Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

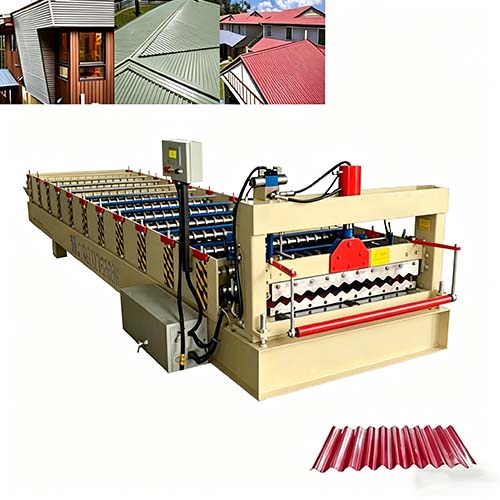

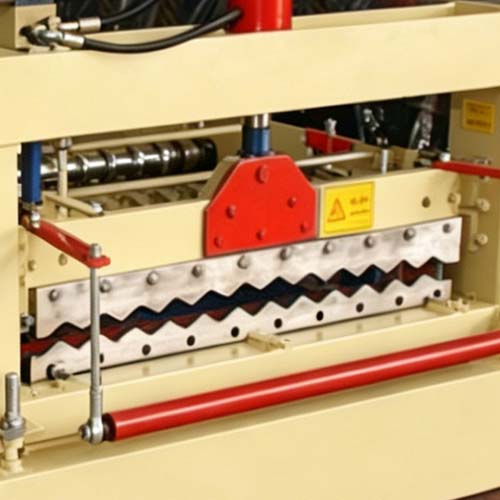

The Corrugated Sheet Machine is a high-performance automatic roll forming production line designed for manufacturing corrugated metal roofing sheets and wall cladding panels used in industrial buildings, warehouses, agricultural structures, workshops, logistics centers, factories, and commercial steel construction projects. With the continuous development of global infrastructure and industrial construction, corrugated sheets have become one of the most widely used building materials due to their lightweight structure, high strength, excellent corrosion resistance, and long service life. This machine provides manufacturers with a stable and efficient solution for continuous production of corrugated metal sheets with precise forming accuracy and reliable industrial performance.

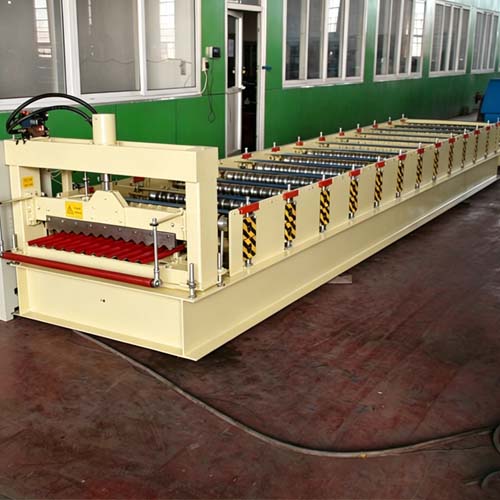

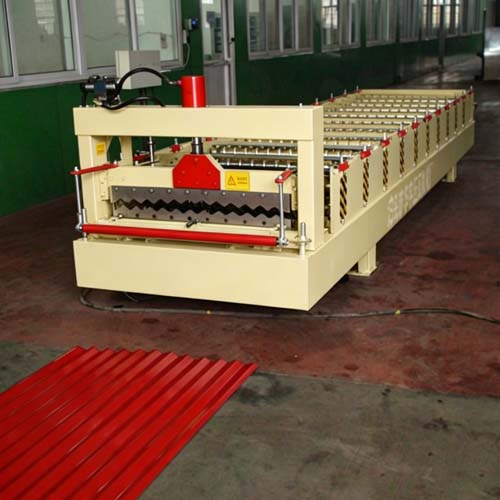

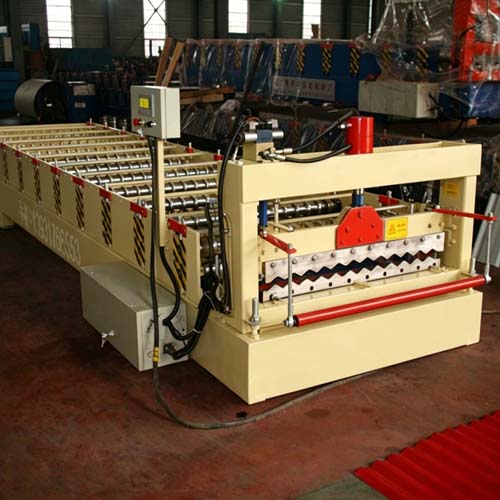

The complete corrugated sheet production line generally consists of a hydraulic decoiler, feeding and guiding system, leveling platform, roll forming machine, hydraulic cutting unit, PLC intelligent control cabinet, transmission system, and finished product receiving table. During operation, steel coils are automatically uncoiled and continuously fed into the forming section. The flat metal sheet passes through multiple precision roller stations where it is gradually shaped into a corrugated profile using advanced cold roll forming technology. This automated production process ensures stable feeding speed, accurate corrugation dimensions, smooth surface quality, and consistent product performance during long-term industrial manufacturing operations.
This corrugated sheet machine can process various types of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials widely used in roofing and wall cladding applications. The standard material thickness generally ranges from 0.3mm to 0.8mm depending on production requirements and profile configurations. Feeding width, corrugation height, and sheet profile patterns can also be customized according to customer specifications and regional construction standards. Different corrugated sheet profiles can be manufactured for industrial roofing systems, warehouse roofing panels, wall cladding systems, fencing applications, and agricultural building projects.

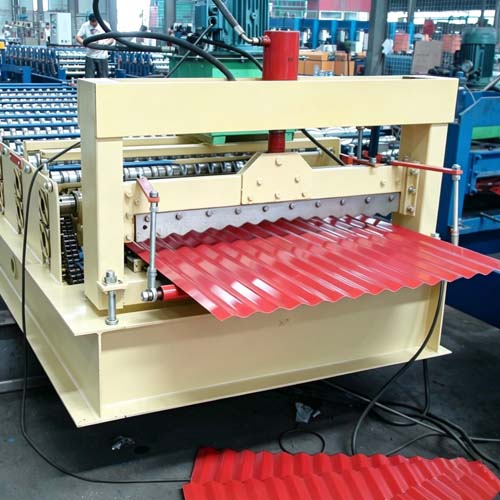

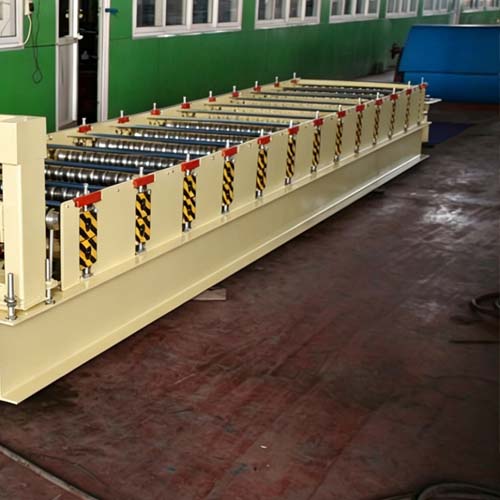

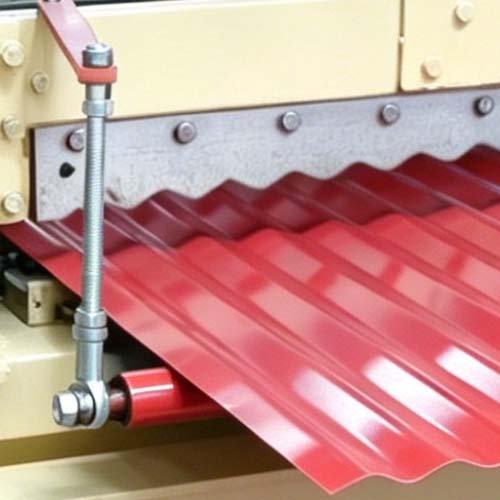

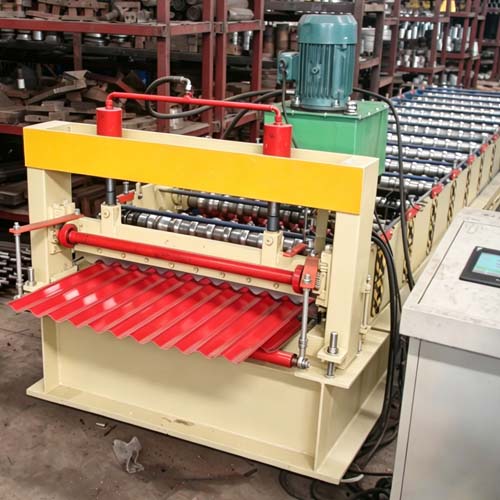

The forming rollers are manufactured from high-strength 45# forged steel with hard chrome plating treatment to improve hardness, wear resistance, and forming precision. Precision-machined shafts and industrial-grade transmission systems ensure stable machine operation and smooth forming performance during continuous high-speed production. The heavy-duty welded steel frame structure effectively reduces vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with durable hydraulic systems and industrial motors, the machine can maintain efficient production capacity and long operational service life under demanding industrial conditions.
One of the key advantages of this automatic corrugated sheet machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems ensure precise sheet dimensions while reducing material waste and improving production efficiency. Optional automation configurations such as automatic stacking systems, servo feeding devices, production counters, and fault alarm functions can further improve factory automation levels and reduce labor costs in modern manufacturing environments.
