Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com
The Metal Corrugated Machine is a professional cold roll forming production line designed for manufacturing corrugated metal sheets used in roofing systems, wall cladding, industrial warehouses, agricultural buildings, workshops, commercial structures, and steel silo construction projects. With the rapid growth of modern infrastructure and industrial construction worldwide, corrugated metal sheets have become one of the most widely used building materials because of their lightweight structure, high strength, corrosion resistance, and economical installation advantages. This machine provides a reliable and fully automated solution for continuous production of high-quality corrugated metal sheets with precise profile forming and stable operational performance.

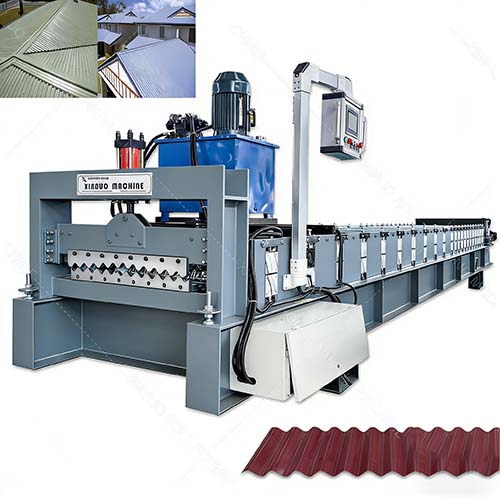

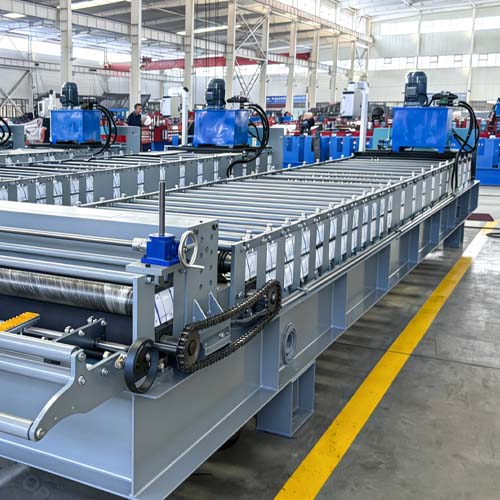

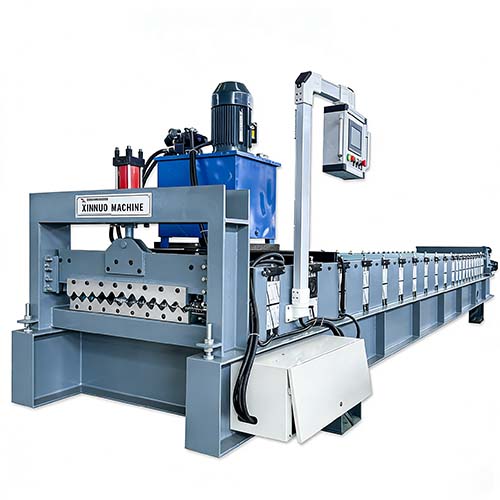

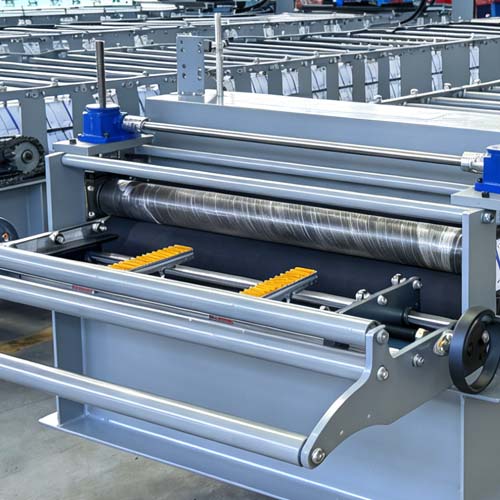

The production line generally consists of a hydraulic decoiler, feeding and guiding system, roll forming main machine, hydraulic cutting device, PLC intelligent control cabinet, transmission system, and receiving table. During operation, metal coils are automatically uncoiled and continuously fed into the roll forming section. Multiple precision roller stations gradually shape the flat metal sheet into a corrugated profile through continuous cold roll forming technology. The automated production process ensures smooth material feeding, stable production speed, consistent corrugation depth, and accurate sheet dimensions throughout long-term industrial manufacturing operations.
This metal corrugated machine is suitable for processing galvanized steel coils, galvalume steel coils, pre-painted steel coils (PPGI/PPGL), aluminum coils, and other metal sheet materials. The standard material thickness range is generally between 0.3mm and 0.8mm depending on production requirements and profile designs. Feeding width and corrugation shape can also be customized according to regional market standards and customer specifications. Different profile types can be produced for industrial roofing systems, warehouse roofing, wall cladding panels, fencing sheets, and agricultural building structures.

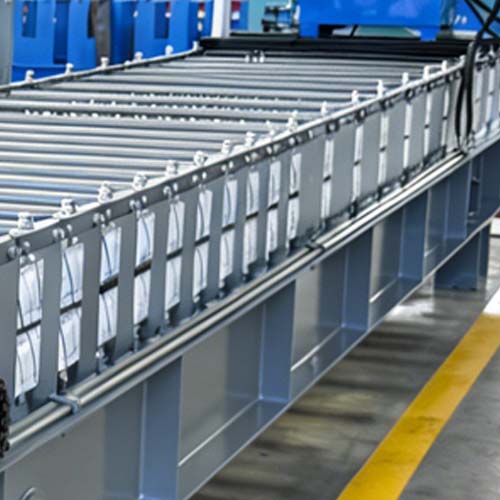

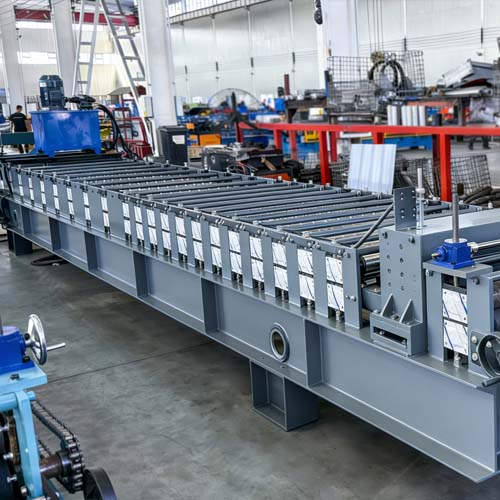

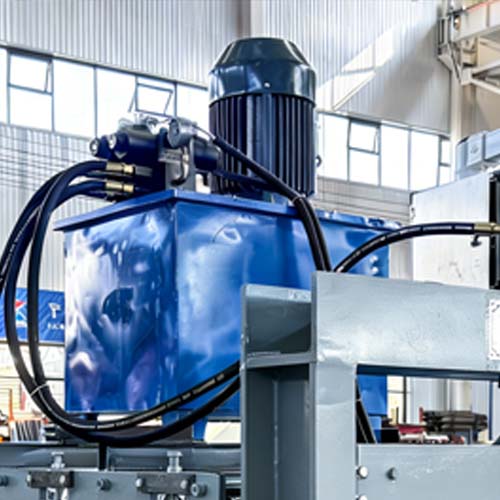

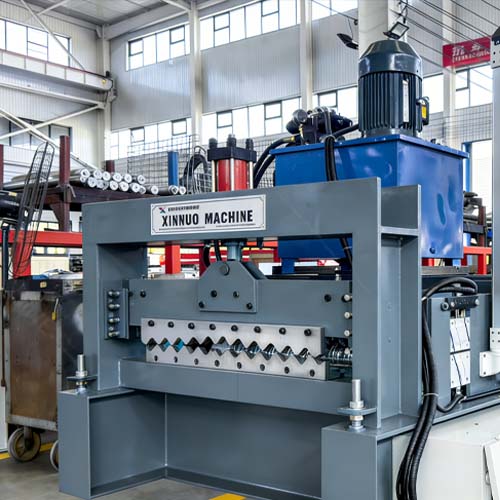

The forming rollers are manufactured from high-quality 45# forged steel with hard chrome plating treatment, which improves wear resistance, enhances forming precision, and extends machine service life. Precision-machined roller shafts and industrial-grade transmission systems ensure smooth operation and stable performance during high-speed production. The heavy-duty welded steel frame construction provides strong structural rigidity and minimizes vibration throughout continuous manufacturing processes. Combined with powerful motors and hydraulic systems, the machine maintains reliable operation and efficient production capacity under large-scale industrial conditions.

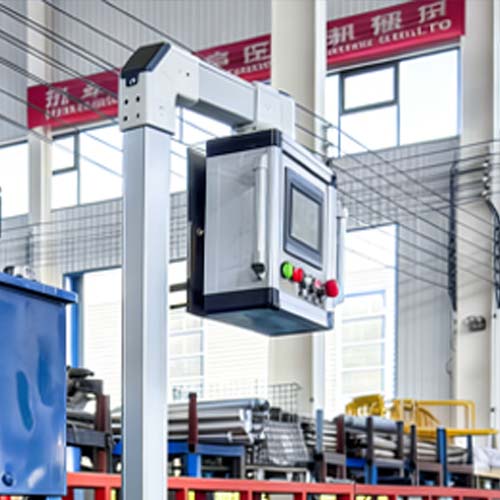

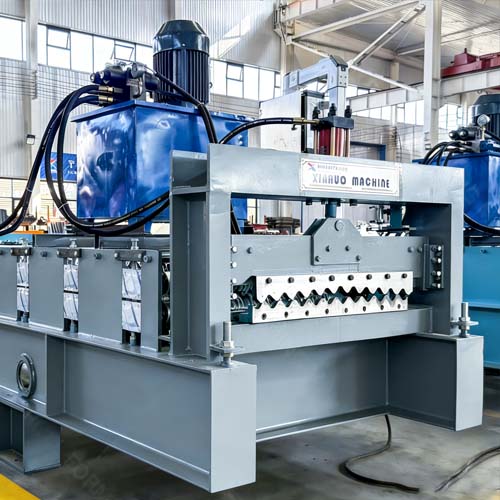

One of the major advantages of this metal corrugated machine is its PLC intelligent control system with touchscreen operation. Operators can conveniently set production length, batch quantity, and cutting parameters according to manufacturing requirements. Automatic length measurement and hydraulic cutting technology ensure precise cutting accuracy while reducing raw material waste. Advanced machine configurations may also support automatic stacking systems, servo feeding technology, production counting functions, and fault alarm systems, significantly improving manufacturing efficiency and reducing labor intensity in modern factories.
Corrugated metal sheets produced by this equipment are widely used in industrial roofing systems, warehouse construction, agricultural sheds, livestock farms, factories, workshops, logistics centers, commercial buildings, and grain silo wall structures. The corrugated profile significantly improves structural rigidity, drainage performance, and resistance to wind pressure and harsh environmental conditions. These characteristics make corrugated metal sheets highly suitable for long-term outdoor applications in industrial and agricultural environments exposed to rain, sunlight, humidity, and temperature fluctuations.
Compared with traditional manual sheet fabrication methods, the metal corrugated machine offers higher production efficiency, lower labor costs, and more stable product quality. Continuous cold roll forming technology ensures uniform corrugation, smooth surface finishing, and consistent profile geometry throughout the manufacturing process. Modern manufacturers widely adopt automatic corrugated metal production equipment because it supports efficient mass production while improving competitiveness in the global metal roofing and steel structure manufacturing industry.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
