Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

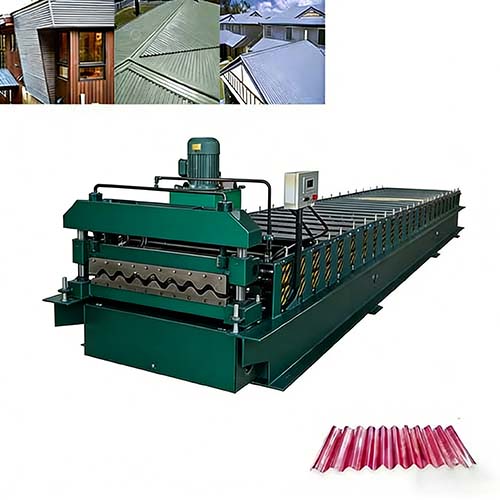

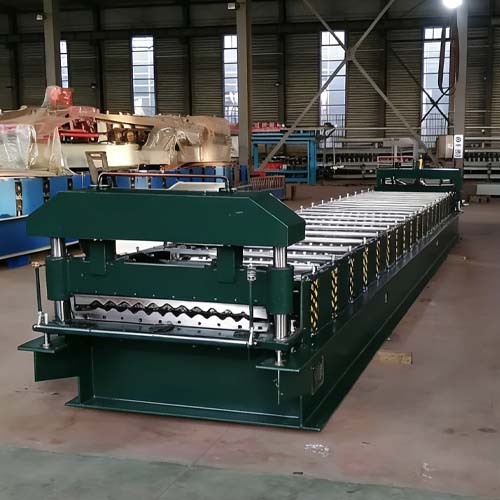

The Automatic Corrugated Sheet Machine is a professional roll forming production system designed for manufacturing corrugated metal roofing sheets and wall cladding panels for industrial buildings, warehouses, agricultural projects, factories, workshops, logistics centers, and steel structure construction applications. As the global demand for efficient and durable construction materials continues to rise, corrugated metal sheets have become one of the most widely used products because of their excellent strength, lightweight structure, corrosion resistance, and economical installation performance. This machine provides manufacturers with a reliable and highly automated solution for continuous production of high-quality corrugated sheets with stable operational performance and precise profile forming.

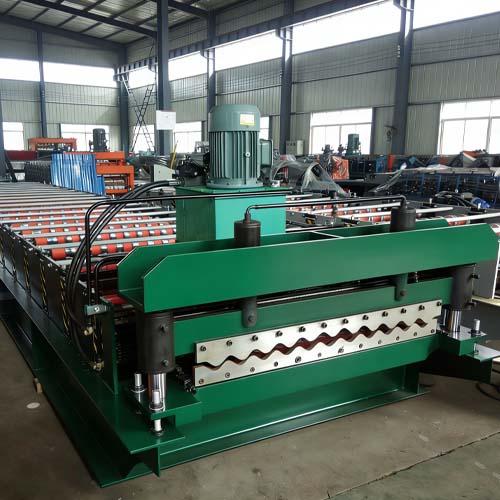

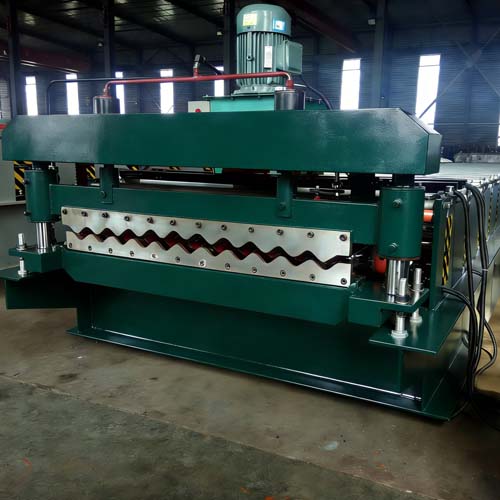

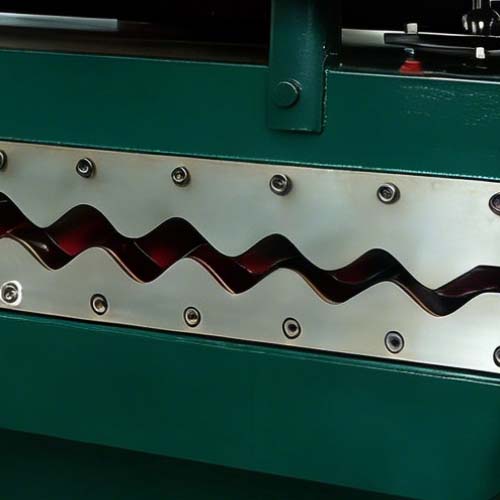

The complete production line usually consists of a hydraulic decoiler, feeding and guiding system, leveling platform, roll forming machine, hydraulic cutting device, PLC automatic control cabinet, drive transmission system, and finished product receiving table. During operation, steel coils are automatically uncoiled and smoothly fed into the forming section. The flat metal sheet passes through multiple forming roller stations where it is gradually transformed into a corrugated profile using continuous cold roll forming technology. This automated manufacturing process guarantees stable feeding speed, accurate corrugation dimensions, smooth surface quality, and consistent finished product performance during long-term industrial operation.
This corrugated sheet machine can process a wide range of materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials used in roofing and cladding applications. The standard processing thickness generally ranges from 0.3mm to 0.8mm depending on project requirements and profile designs. Feeding width, wave height, and corrugated profile patterns can also be customized according to regional construction standards and customer specifications. Various corrugated sheet designs can be produced for industrial roofing systems, wall cladding panels, warehouse roofs, fencing applications, and agricultural construction projects.

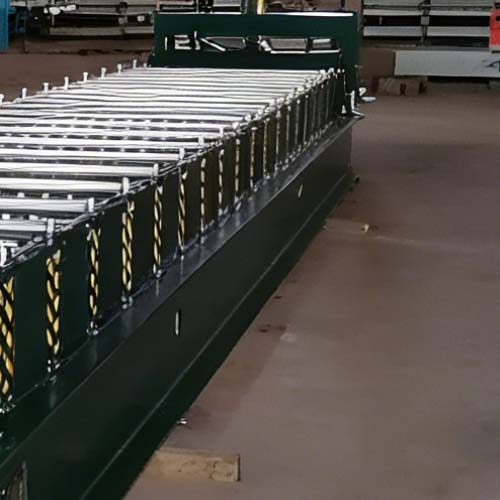

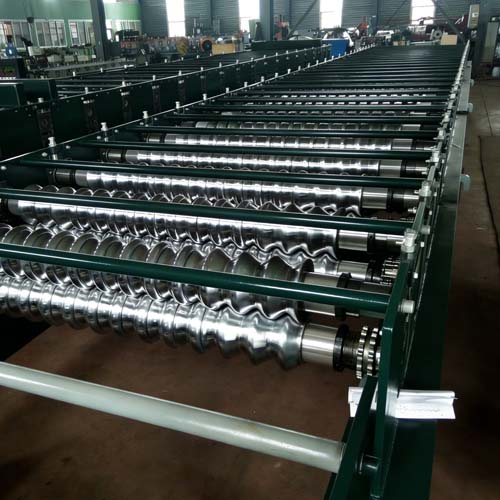

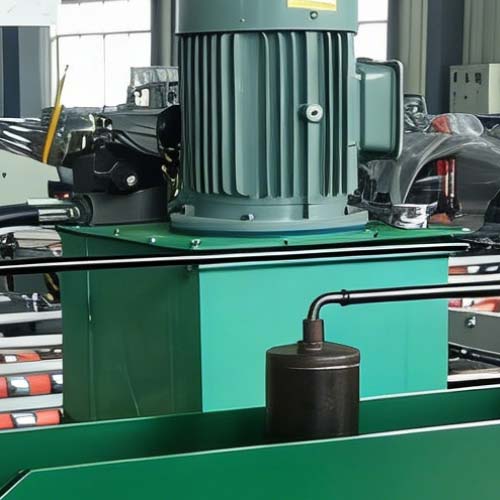

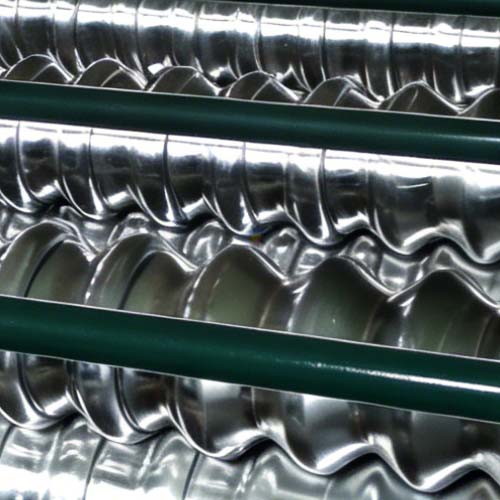

The forming rollers are manufactured from high-strength 45# forged steel with hard chrome surface treatment to improve roller durability, wear resistance, and profile precision. Precision-machined shafts and high-quality transmission systems ensure stable operation and smooth forming performance during continuous high-speed production. The heavy-duty welded machine frame structure effectively minimizes vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with reliable hydraulic systems and industrial-grade motors, the machine can achieve efficient production capacity and long operational lifespan.

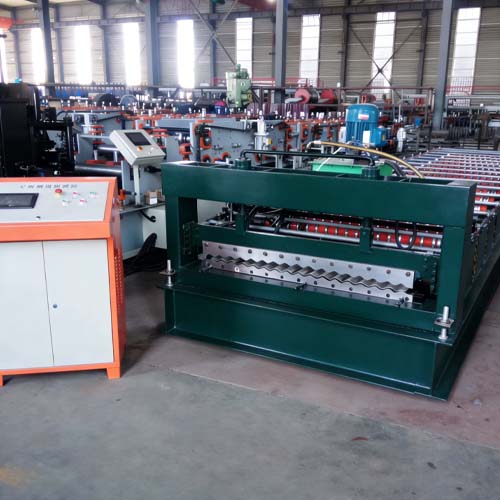

One of the key advantages of this automatic corrugated sheet machine is the advanced PLC intelligent control system equipped with a touchscreen interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems ensure precise sheet dimensions while reducing material waste and improving manufacturing efficiency. Optional automation configurations such as automatic stackers, servo motor feeding devices, production counting functions, and fault alarm systems can further improve factory automation levels and lower labor costs.
Corrugated metal sheets produced by this equipment are widely used in industrial factories, agricultural storage buildings, livestock farms, logistics warehouses, workshops, commercial facilities, and steel structure wall systems. The corrugated profile increases structural rigidity, enhances rainwater drainage capability, and improves resistance against strong wind pressure and severe outdoor weather conditions. These advantages make corrugated roofing panels highly suitable for long-term outdoor use in industrial and agricultural environments exposed to rain, humidity, sunlight, and temperature fluctuations.
Compared with conventional manual sheet fabrication methods, the automatic corrugated sheet machine delivers higher production efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, smooth sheet surfaces, and accurate profile dimensions throughout the manufacturing process. For modern roofing sheet manufacturers, investing in automated corrugated sheet production equipment is an effective way to expand production capacity and strengthen competitiveness in the international construction materials industry.
