Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

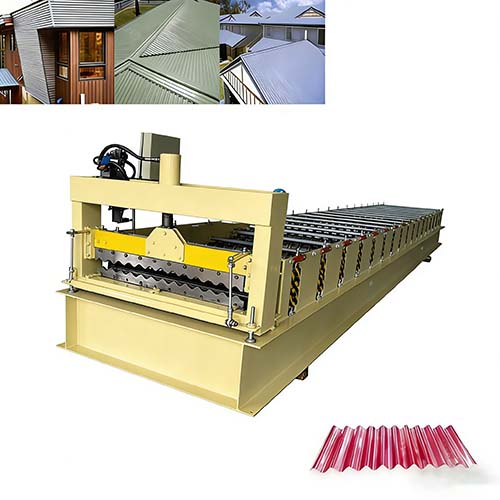

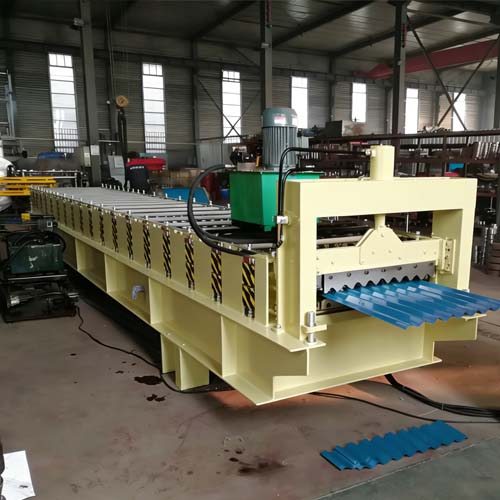

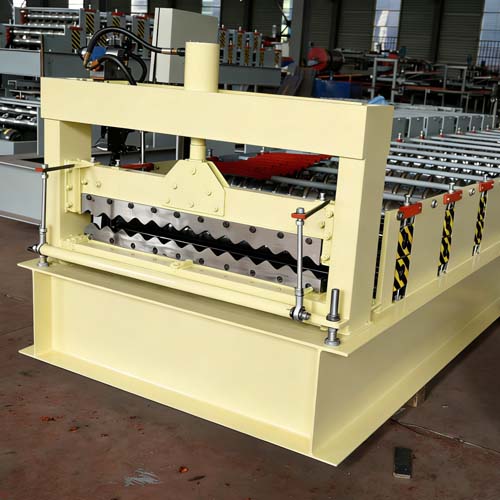

The Corrugated Roof Machine is a high-efficiency cold roll forming production line designed for manufacturing corrugated metal roofing sheets and wall cladding panels used in industrial buildings, warehouses, agricultural structures, workshops, logistics centers, factories, and commercial steel construction projects. With the continuous growth of global infrastructure and steel structure industries, corrugated roofing sheets have become one of the most popular construction materials because of their lightweight structure, high durability, excellent weather resistance, and economical installation cost. This machine provides manufacturers with a stable and fully automated solution for producing high-quality corrugated roofing panels with accurate forming precision and continuous industrial production capability.

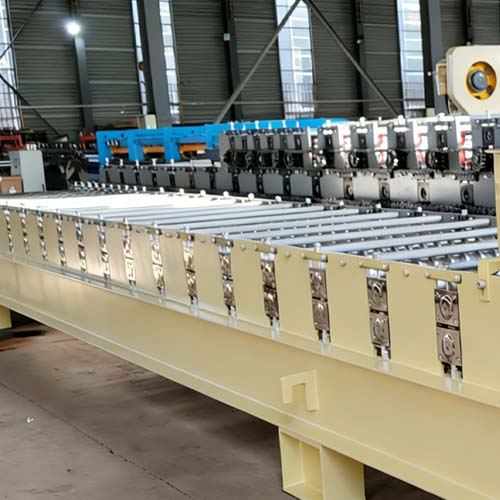

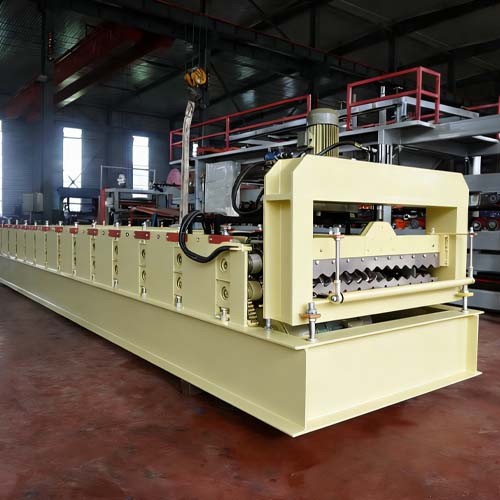

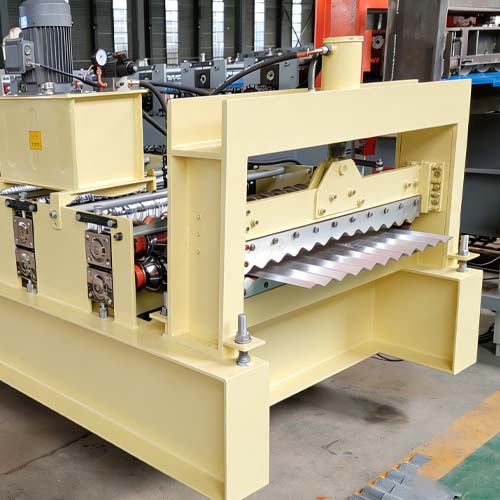

The complete production line generally consists of a hydraulic decoiler, feeding and guiding platform, leveling device, roll forming machine, hydraulic cutting system, PLC intelligent control cabinet, transmission mechanism, and finished product receiving table. During operation, metal coils are automatically uncoiled and smoothly fed into the forming section. The flat steel sheet passes through multiple precision roller stations where it is gradually formed into a corrugated roofing profile using advanced cold roll forming technology. The automated manufacturing process ensures smooth feeding, stable production speed, precise corrugation dimensions, and consistent product quality throughout long-term industrial operation.
This corrugated roof machine can process various metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials widely used in roofing and wall cladding applications. The standard processing thickness generally ranges from 0.3mm to 0.8mm depending on customer production requirements and profile configurations. Feeding width, corrugation height, and roofing profile patterns can also be customized according to regional construction standards and market demands. Different corrugated sheet profiles can be manufactured for industrial roofing systems, warehouse roofing panels, wall cladding sheets, fencing applications, and agricultural building projects.

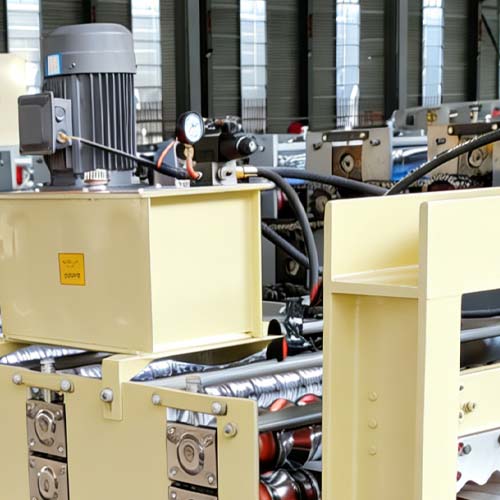

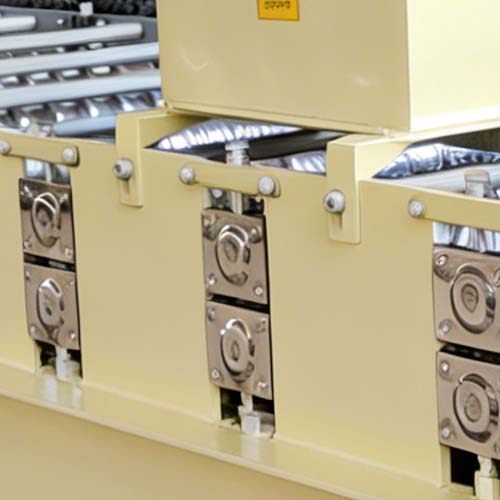

The forming rollers are manufactured from premium 45# forged steel with hard chrome plating treatment to improve surface hardness, wear resistance, and profile precision. Precision-machined shafts and industrial-grade transmission systems ensure stable machine operation and smooth forming performance during continuous high-speed production. The heavy-duty welded machine frame structure effectively minimizes vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with durable hydraulic systems and industrial motors, the machine can maintain efficient production capacity and long operational service life under demanding industrial conditions.

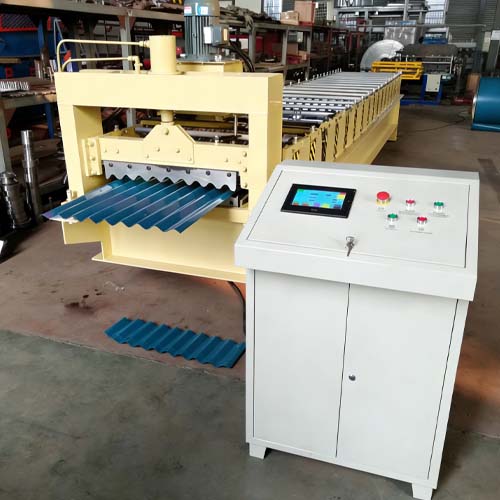

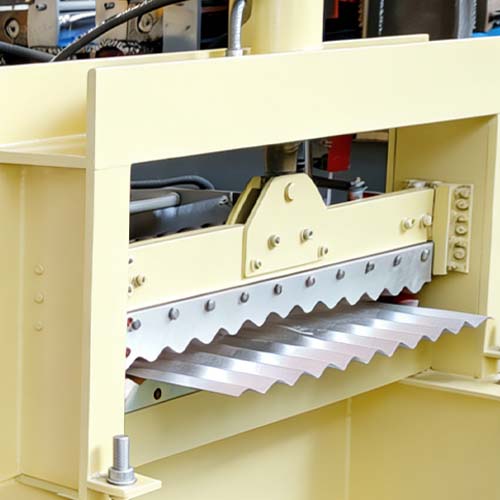

One of the most important advantages of this automatic corrugated roof machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while reducing material waste and improving manufacturing efficiency. Optional automation systems such as automatic stackers, servo feeding devices, production counters, and fault alarm functions can further improve production efficiency and reduce labor costs for modern factories.
Corrugated roofing sheets produced by this equipment are widely used in industrial factories, agricultural storage facilities, livestock farms, logistics warehouses, workshops, commercial buildings, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances rainwater drainage capability, and increases resistance against strong wind pressure and severe outdoor environmental conditions. These characteristics make corrugated roofing panels highly suitable for long-term outdoor use in industrial and agricultural environments exposed to rain, sunlight, humidity, and temperature fluctuations.
Compared with traditional sheet fabrication methods, the corrugated roof machine delivers significantly higher manufacturing efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, smooth sheet surfaces, and accurate profile dimensions throughout the manufacturing process. For modern roofing material manufacturers, investing in automated corrugated roofing sheet production equipment is an ideal solution for expanding manufacturing capacity and strengthening competitiveness in the international construction materials market.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
