Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

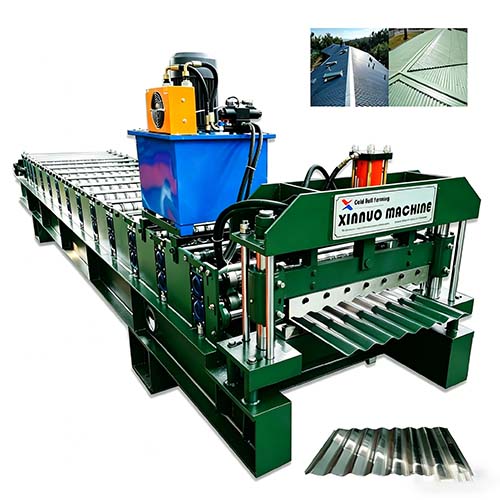

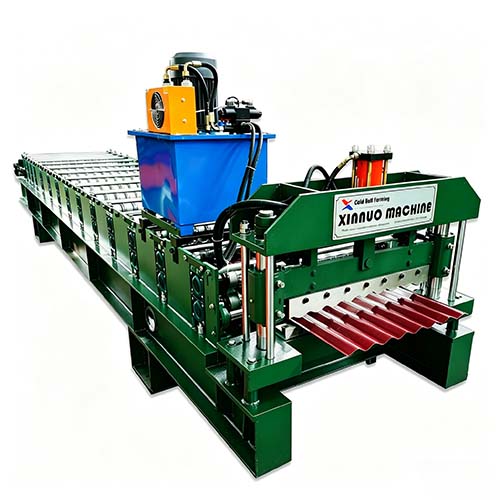

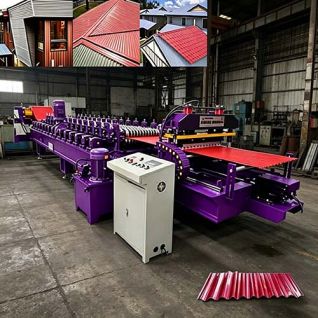

The Corrugated Sheet Forming Machine is an advanced automatic roll forming system designed for continuous manufacturing of corrugated metal roofing sheets and wall cladding panels. It is widely applied in industrial factories, warehouse buildings, agricultural facilities, logistics centers, commercial complexes, workshops, and prefabricated steel structure projects. In modern construction industries, corrugated metal sheets are widely used due to their excellent durability, lightweight characteristics, corrosion resistance, and cost-efficient installation. This machine is developed to support high-volume production with stable forming accuracy and reliable operational performance.

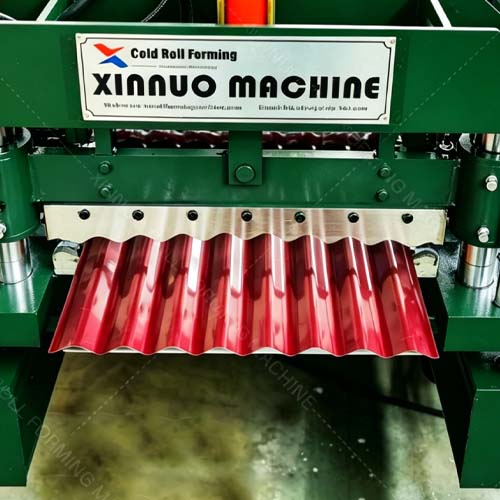

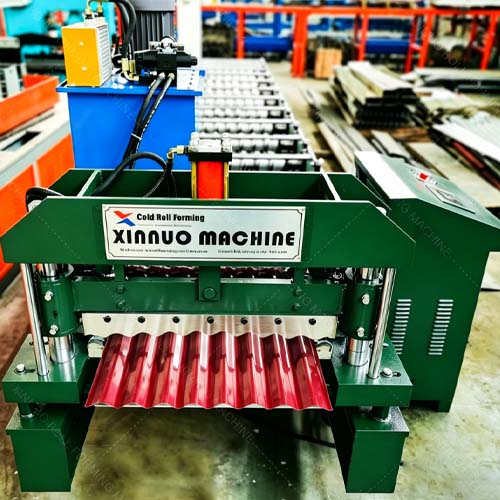

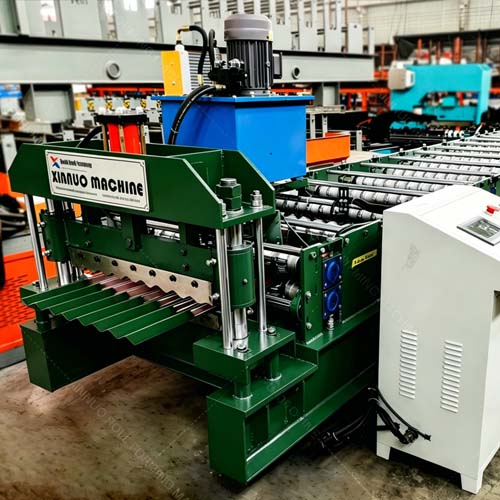

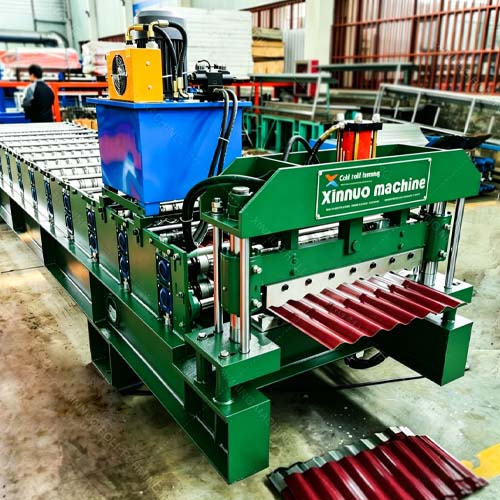

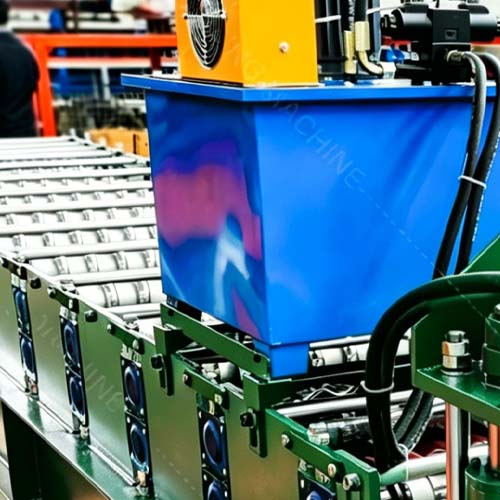

The equipment integrates multiple functional modules into one complete production line, including a hydraulic uncoiler, material feeding and guiding system, sheet leveling device, precision roll forming station, automatic hydraulic cutting system, PLC control cabinet, transmission system, and finished product output platform. During operation, metal coils are smoothly unwound and directed into the forming section. The sheet is progressively shaped through a series of precision rollers, forming a uniform corrugated profile with accurate wave spacing, smooth surface, and consistent dimensional quality. The entire process is fully automated and suitable for continuous industrial production.
This corrugated sheet forming machine is compatible with different types of metal materials such as galvanized steel coils, galvalume steel sheets, pre-painted steel (PPGI/PPGL), and aluminum sheets. It supports a standard thickness range from 0.3mm to 0.8mm, making it suitable for various roofing and cladding applications. The system can be customized to produce different corrugated profiles by adjusting wave height, pitch distance, and sheet width, allowing manufacturers to meet different architectural designs and regional construction requirements.

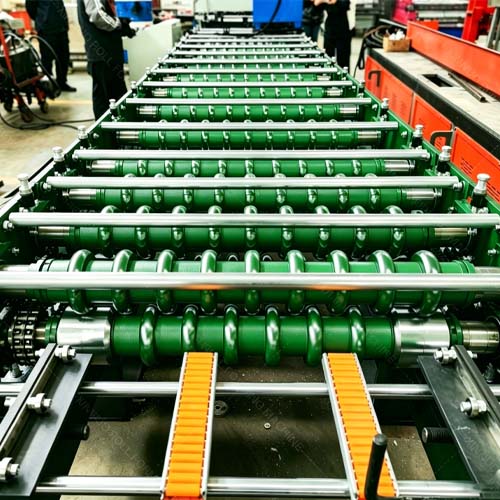

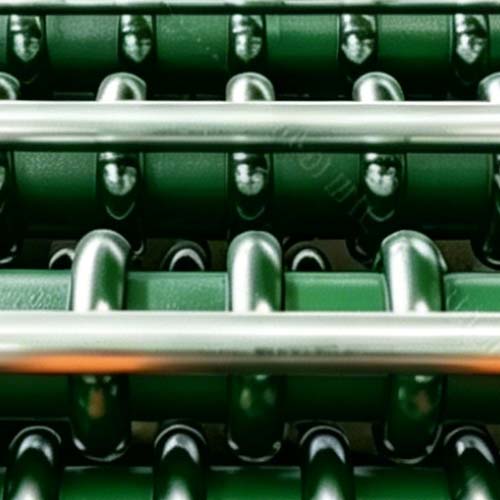

The machine frame is built using reinforced welded steel structures to ensure high rigidity and long-term stability during continuous operation. Roll forming rollers are manufactured from high-strength alloy steel and processed with precision machining and hard chrome surface treatment, ensuring excellent wear resistance, smooth surface finish, and consistent forming accuracy. The synchronized transmission system guarantees stable material feeding and reduces vibration, improving overall production quality.

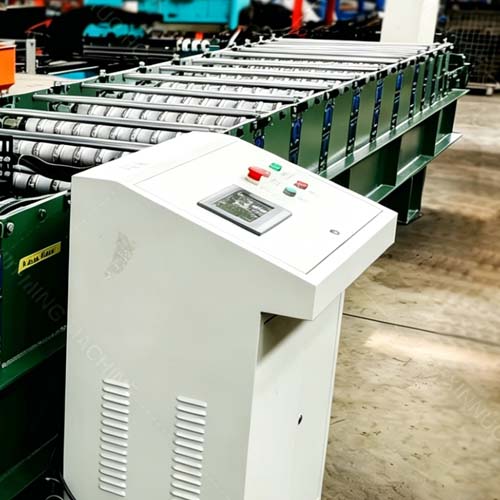

A major feature of this corrugated sheet forming machine is its intelligent PLC control system equipped with a touchscreen interface. Operators can easily set production parameters such as sheet length, quantity, and cutting precision. The system automatically controls feeding speed, forming process, and cutting actions, significantly reducing manual operation and improving production efficiency. Optional features such as automatic stacking systems, production counters, and safety alarm functions can be added to further enhance automation and operational safety.
Corrugated sheets produced by this equipment are widely used in industrial roofing systems, agricultural storage buildings, warehouse structures, temporary shelters, wall cladding systems, and large-span steel construction projects. The corrugated structure enhances structural strength, improves drainage performance, and increases resistance to wind pressure and harsh weather conditions, making it ideal for long-term outdoor applications.
Compared with traditional production methods, this corrugated sheet forming machine provides higher automation, improved efficiency, and more stable product quality. It enables continuous production with reduced labor requirements and consistent output performance. For modern metal roofing manufacturers, this equipment is an effective solution for increasing production capacity, optimizing manufacturing processes, and improving competitiveness in the global construction materials market.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
