Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

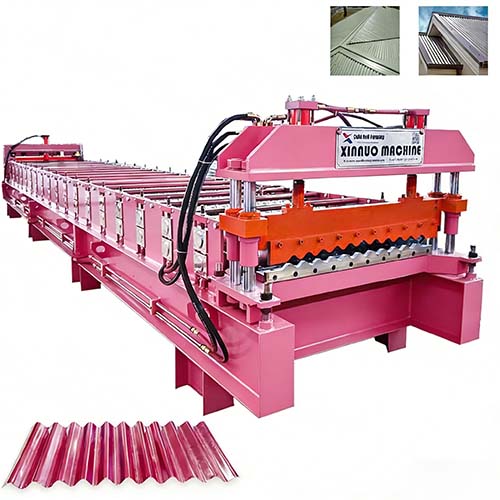

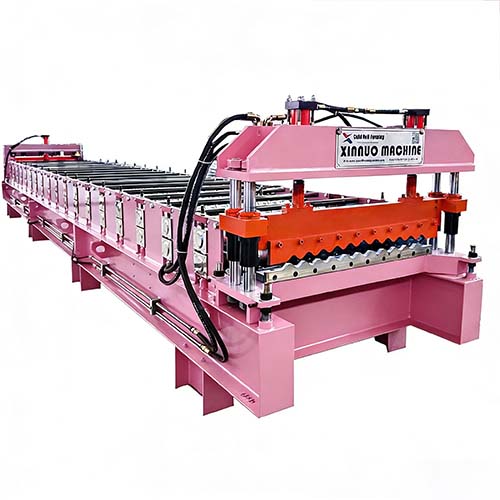

The Corrugated Roll Making Machine is a professional cold roll forming production line designed for manufacturing corrugated metal sheets used in roofing systems, wall cladding, industrial buildings, warehouses, agricultural sheds, and steel silo construction projects. With the continuous development of modern infrastructure and agricultural storage industries, corrugated metal sheets have become one of the most widely used building materials due to their high strength, corrosion resistance, lightweight structure, and cost-effective installation performance. This machine provides a stable and efficient solution for large-scale continuous production with high precision and reliable quality.

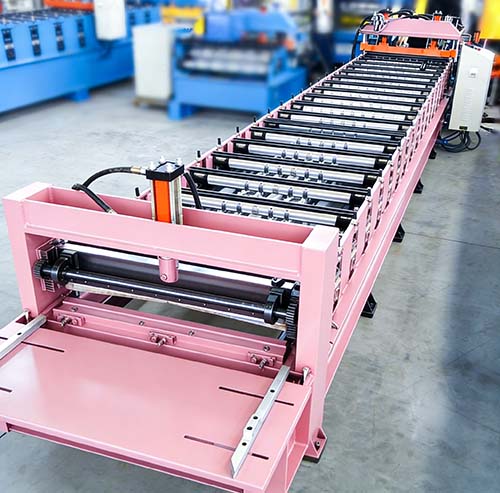

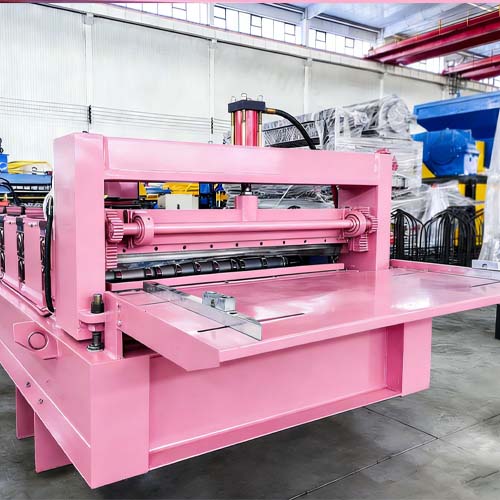

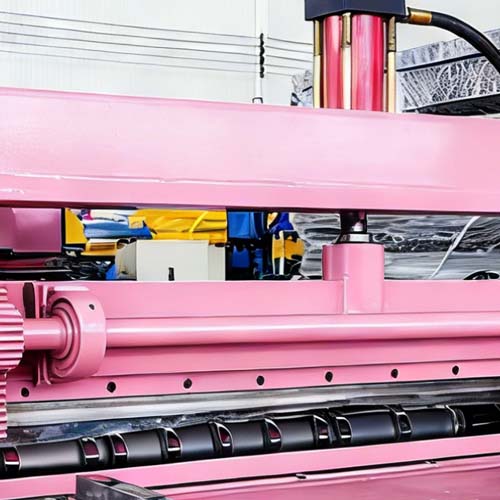

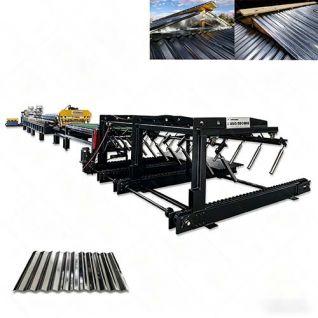

This production line generally includes a hydraulic decoiler, feeding and guiding system, roll forming main machine, hydraulic cutting unit, transmission system, and PLC intelligent control cabinet. Steel coils are automatically uncoiled and continuously fed into the forming section, where multiple roller stations gradually shape the flat metal sheet into a precise corrugated profile. The automated roll forming process ensures smooth operation, stable production speed, and consistent sheet dimensions throughout long-term manufacturing.

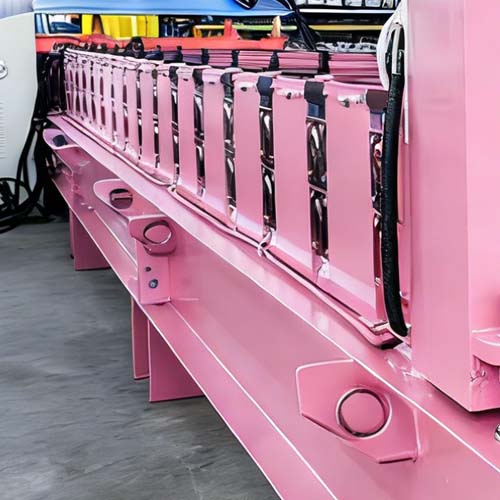

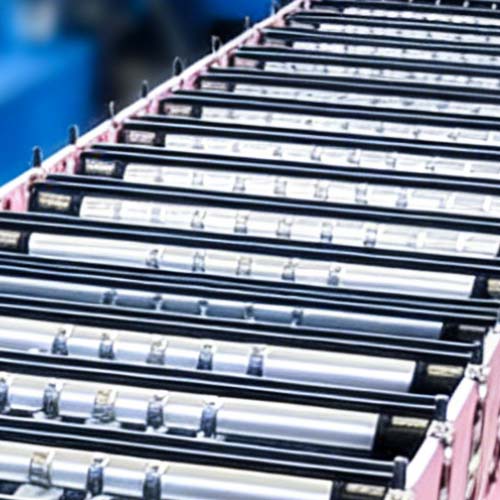

The corrugated roll making machine is suitable for processing galvanized steel, galvalume steel, color-coated steel (PPGI/PPGL), and other metal materials. The machine commonly supports material thickness ranges from 0.3mm to 0.8mm depending on customer production requirements. Forming rollers are manufactured from high-quality 45# forged steel with hard chrome plating treatment, providing excellent wear resistance, smooth surface finishing, and long operational life. The machine frame adopts a heavy-duty welded steel structure to guarantee strong rigidity and stable performance even during continuous high-speed production.

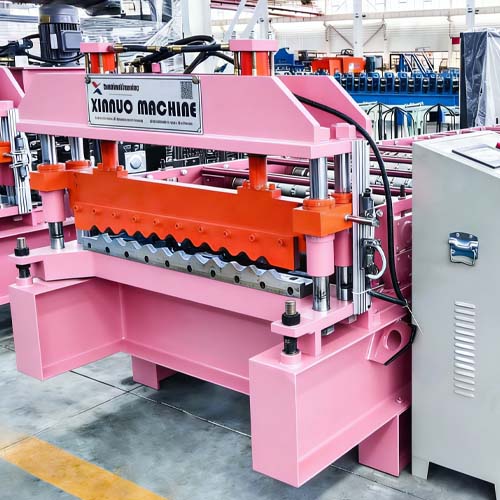

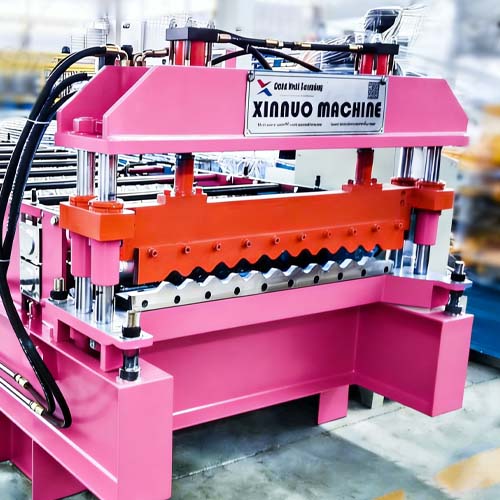

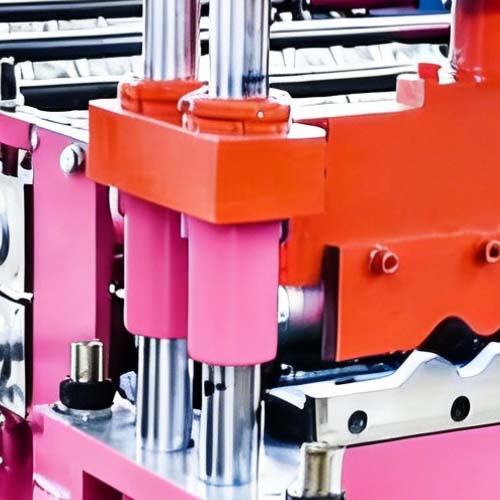

A key feature of this machine is the PLC intelligent control system with touchscreen operation. Operators can easily set production length, batch quantity, and cutting parameters according to manufacturing needs. The hydraulic cutting system ensures accurate cutting precision and minimizes material waste. Automatic length measurement and stable feeding technology further improve production efficiency and reduce manual operation errors. Some configurations may also support automatic stacking systems, helping manufacturers reduce labor intensity and improve downstream handling efficiency.
Corrugated sheets produced by this machine are widely used in industrial roofing, warehouse wall systems, agricultural buildings, workshop construction, and silo wall applications. The corrugated profile improves structural rigidity, enhances drainage performance, and increases resistance to wind pressure and harsh environmental conditions. This makes corrugated roofing sheets highly suitable for long-term outdoor applications such as grain storage silos, feed warehouses, and industrial facilities.
Compared with traditional manual sheet fabrication methods, the corrugated roll making machine offers higher production efficiency, better dimensional accuracy, and lower labor costs. Continuous roll forming technology ensures consistent product quality and stable profile geometry while reducing deformation of metal materials during processing. Modern manufacturers widely adopt automatic corrugated roll forming equipment because it supports efficient mass production and helps improve competitiveness in the global metal roofing and steel structure manufacturing industry.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
