Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

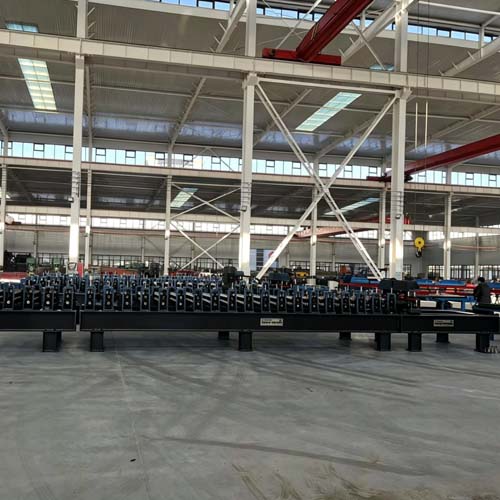

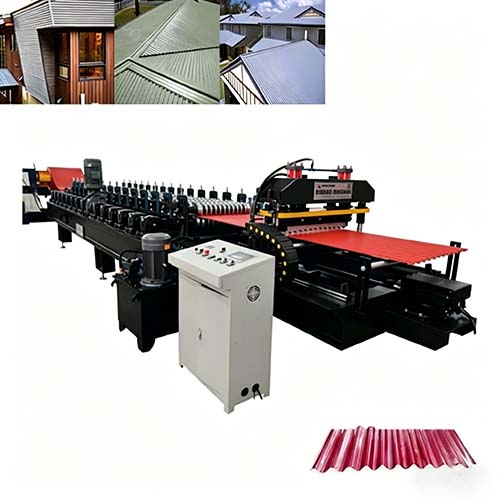

The Corrugated Roof Sheet Machine is a fully automated roll forming system designed for the efficient production of corrugated metal roofing sheets and exterior wall cladding panels. It is widely applied in industrial construction projects such as warehouses, steel structure factories, agricultural storage buildings, logistics centers, commercial facilities, workshops, and prefabricated building systems. In today’s construction industry, corrugated roofing materials are favored for their excellent strength-to-weight ratio, corrosion resistance, long service life, and simple installation process. This machine is engineered to meet large-scale production demands with high precision and stable performance.

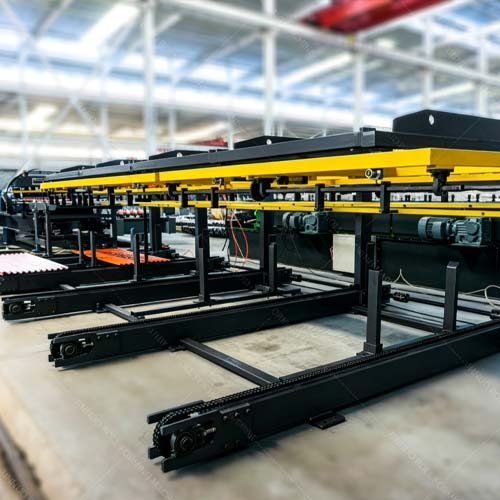

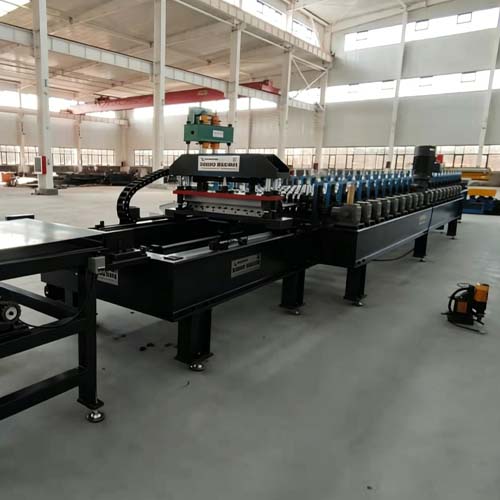

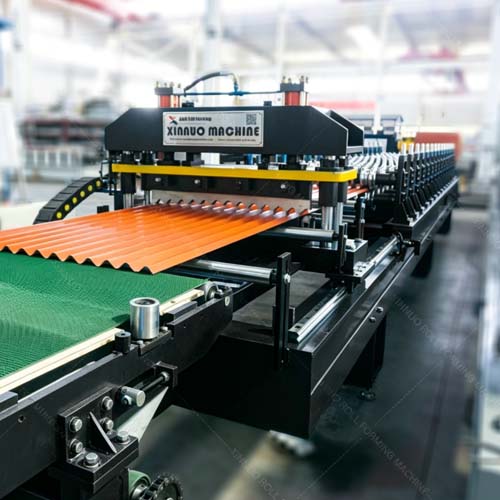

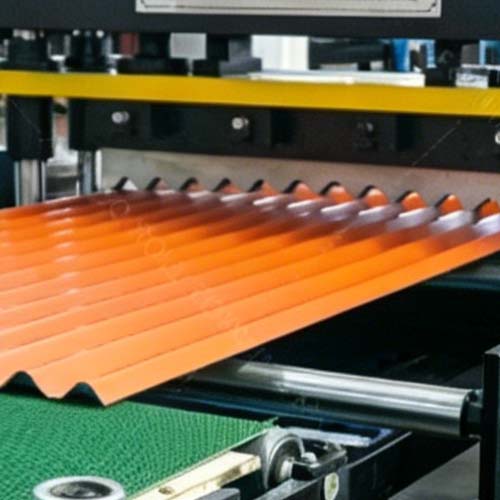

The complete equipment line consists of multiple coordinated sections, including a hydraulic coil loading device, uncoiling and leveling system, sheet feeding guide unit, precision roll forming station, automatic hydraulic cutting mechanism, intelligent PLC control system, power transmission system, and finished product output rack. The working process begins with steel coils being placed on the uncoiler, then smoothly guided into the forming system. Through a series of sequential roller presses, the flat metal sheet is gradually shaped into a consistent corrugated profile with accurate wave spacing and clean surface finish.
This corrugated roof sheet machine supports various raw materials such as galvanized steel coils, galvalume steel sheets, color-coated steel (PPGI/PPGL), and aluminum sheets. It typically processes material thicknesses ranging from 0.3mm to 0.8mm. The system can be adjusted to produce different corrugated profiles, including variations in wave height, pitch distance, and effective width. This flexibility allows manufacturers to meet diverse market demands and adapt to different regional roofing standards and construction requirements.

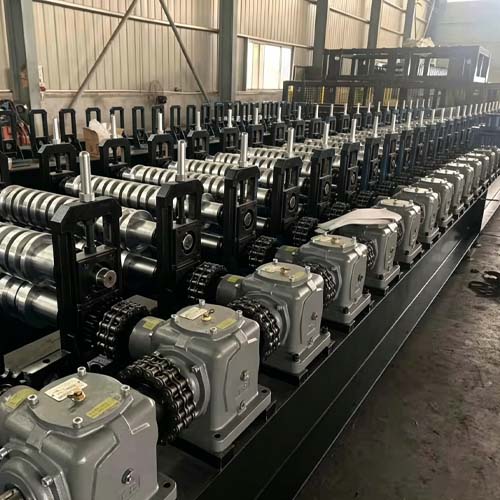

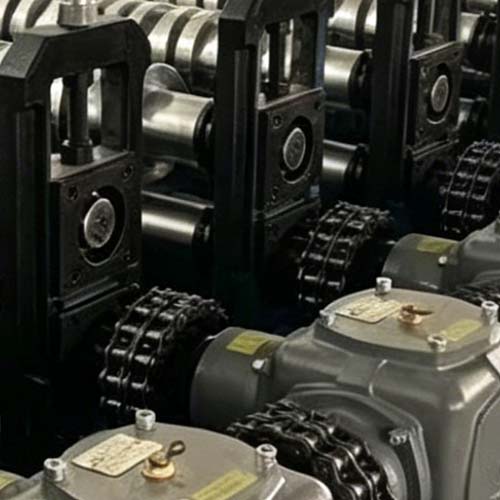

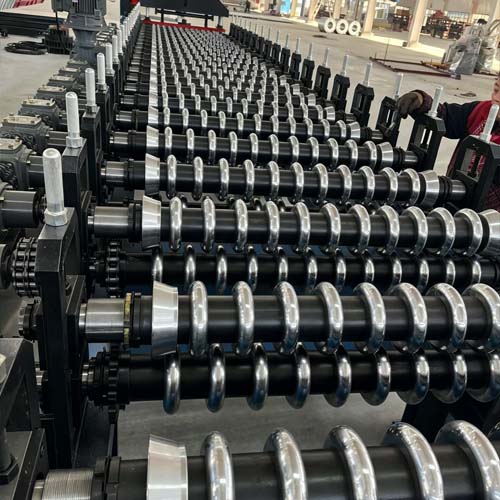

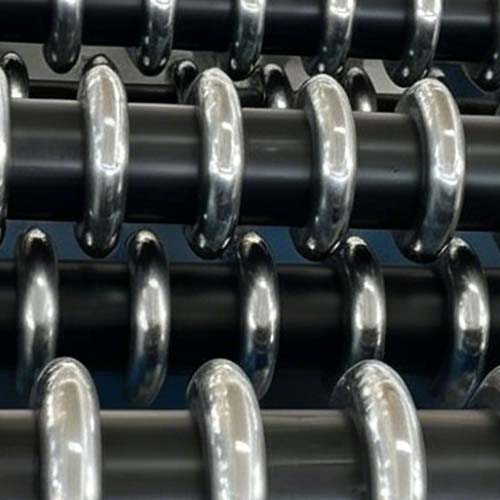

The machine body is constructed using reinforced welded steel frames to ensure strong structural stability during continuous operation. Roll forming components are manufactured from high-grade alloy steel and undergo precision machining and hard chrome surface treatment to improve durability, reduce wear, and maintain consistent forming accuracy over long production cycles. The synchronized drive system ensures stable sheet movement, reducing deformation risk and improving overall product quality.
The intelligent PLC control system is one of the key highlights of this corrugated roof sheet machine. It features a user-friendly touchscreen interface that allows operators to easily set production length, batch quantity, and cutting precision. The system automatically manages forming speed and cutting cycles, significantly reducing manual operation requirements. Safety protection functions, emergency stop control, and real-time production monitoring further enhance operational reliability and production efficiency.
Corrugated roof sheets produced by this equipment are widely used in industrial roofing systems, agricultural buildings, temporary shelters, storage facilities, wall cladding structures, and large-span steel constructions. The corrugated design improves structural rigidity, enhances drainage efficiency, and increases resistance against wind pressure and harsh weather conditions, making it suitable for long-term outdoor applications.
Compared with traditional manufacturing methods, this corrugated roof sheet machine delivers higher automation, improved production efficiency, and more consistent product quality. It enables continuous production with minimal labor input, helping manufacturers reduce operational costs and increase output capacity. For modern metal roofing manufacturers, this equipment is a reliable solution to expand production scale and strengthen competitiveness in both domestic and international markets.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
