Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

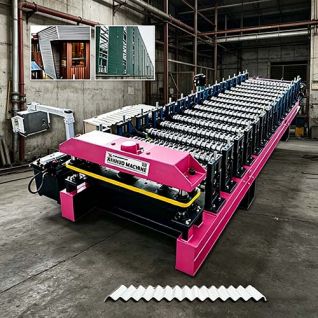

The Corrugated Roll Making Machine is a high-efficiency automatic roll forming production system designed for manufacturing corrugated metal roofing sheets and wall cladding panels widely used in industrial buildings, warehouses, agricultural facilities, workshops, logistics centers, commercial projects, and steel structure construction applications. With the continuous expansion of global infrastructure development, corrugated roofing sheets have become one of the most commonly used building materials due to their lightweight structure, high strength performance, excellent corrosion resistance, and long service life. This equipment provides manufacturers with a stable and efficient solution for continuous production of corrugated metal sheets with precise forming accuracy and reliable industrial performance.

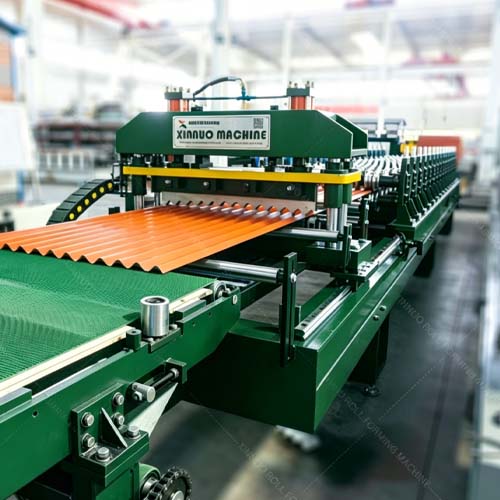

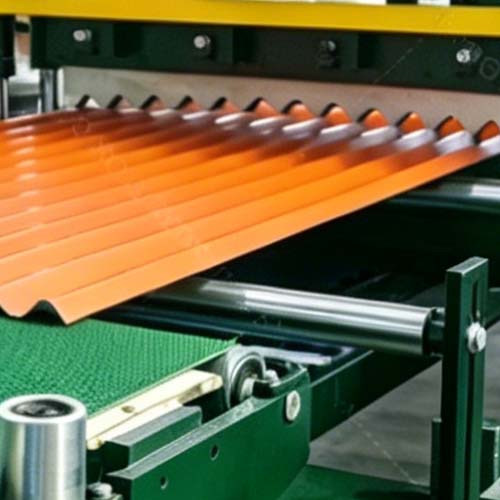

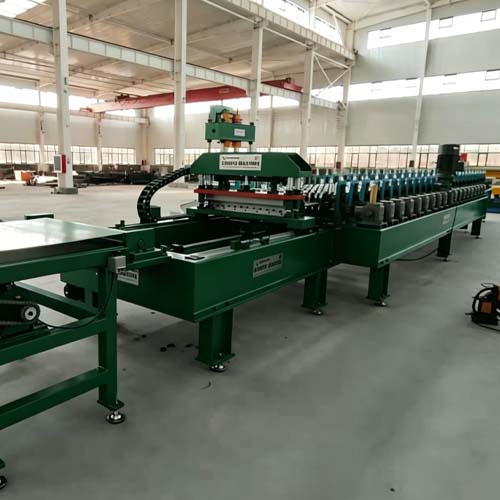

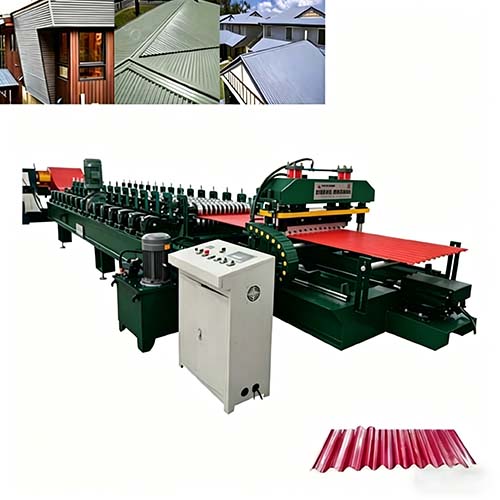

The complete corrugated roll making production line generally includes a hydraulic decoiler, feeding and guiding system, leveling device, roll forming machine, hydraulic cutting unit, PLC intelligent control cabinet, transmission system, and finished product receiving table. During operation, metal coils are automatically uncoiled and continuously fed into the forming section. The flat sheet passes through multiple precision roller stations where it is gradually shaped into a corrugated profile using advanced cold roll forming technology. This automated process ensures stable feeding speed, accurate corrugation geometry, smooth sheet surface quality, and consistent product output during long-term industrial manufacturing operations.
This corrugated roll making machine is suitable for processing various types of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials widely used in roofing and wall cladding systems. The standard material thickness generally ranges from 0.3mm to 0.8mm depending on production requirements and profile configurations. Feeding width, corrugation height, and sheet design patterns can also be customized according to customer specifications and regional construction standards. Different corrugated roofing profiles can be manufactured for industrial roofing systems, warehouse roofing panels, wall cladding applications, fencing systems, and agricultural construction projects.

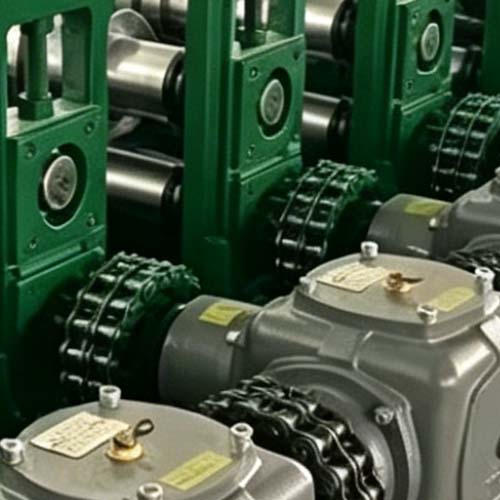

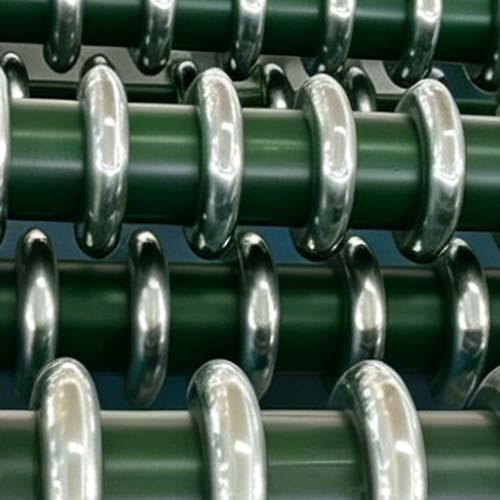

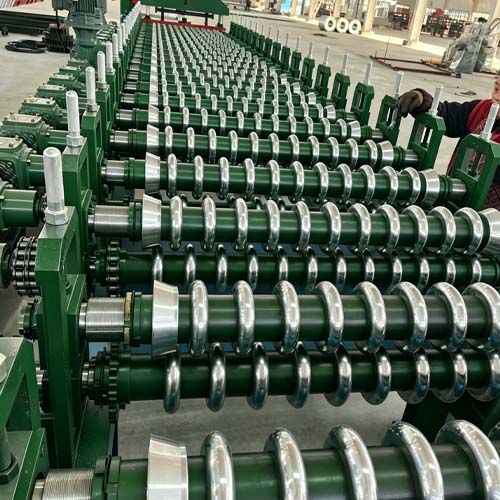

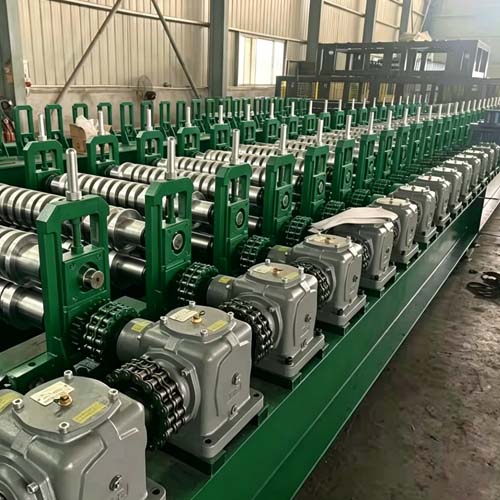

The forming rollers are manufactured from high-strength 45# forged steel with hard chrome plating treatment to improve hardness, wear resistance, and forming precision. Precision-machined shafts and industrial-grade transmission systems ensure stable machine operation and smooth forming performance during continuous high-speed production. The heavy-duty welded steel frame structure effectively minimizes vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with durable hydraulic systems and industrial motors, the machine can maintain efficient production capacity and long operational lifespan under demanding working conditions.
One of the key advantages of this automatic corrugated roll making machine is the advanced PLC intelligent control system equipped with a touchscreen interface. Operators can easily set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems ensure precise sheet dimensions while reducing raw material waste and improving production efficiency. Optional automation configurations such as automatic stacking systems, servo feeding devices, production counters, and fault alarm functions can further enhance production automation and reduce labor costs for modern manufacturing environments.
Corrugated roofing sheets produced by this equipment are widely used in industrial factories, livestock farms, agricultural storage facilities, logistics warehouses, workshops, commercial buildings, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances rainwater drainage capability, and increases resistance against strong wind pressure and harsh environmental conditions. These advantages make corrugated metal roofing panels highly suitable for long-term outdoor applications in industrial and agricultural environments exposed to rain, sunlight, humidity, and temperature fluctuations.
Compared with traditional sheet manufacturing methods, the corrugated roll making machine offers significantly higher production efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology ensures uniform corrugation patterns, smooth sheet surfaces, and accurate profile dimensions throughout the production process. For modern roofing material manufacturers, investing in automated corrugated roll making equipment is an effective solution for expanding production capacity and improving competitiveness in the global construction materials industry.
