Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

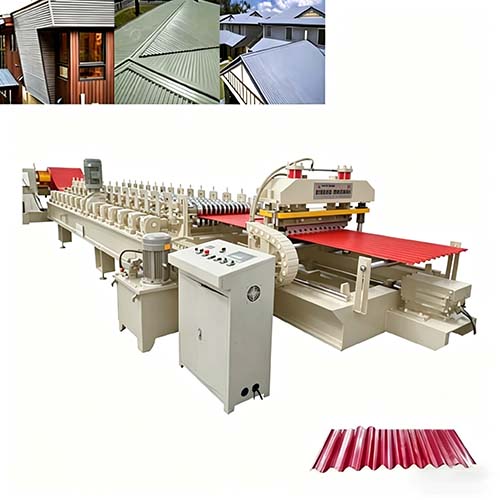

The Corrugated Iron Machine is a fully automatic roll forming production line designed for manufacturing corrugated iron roofing sheets and wall cladding panels used in industrial buildings, warehouses, agricultural facilities, workshops, logistics centers, commercial projects, and steel structure construction applications. With the continuous expansion of modern construction and infrastructure development, corrugated iron sheets have become one of the most widely used roofing materials due to their lightweight structure, strong load-bearing capacity, excellent corrosion resistance, and long service life. This machine provides manufacturers with a stable and efficient solution for continuous production of corrugated iron sheets with high precision forming and reliable industrial performance.

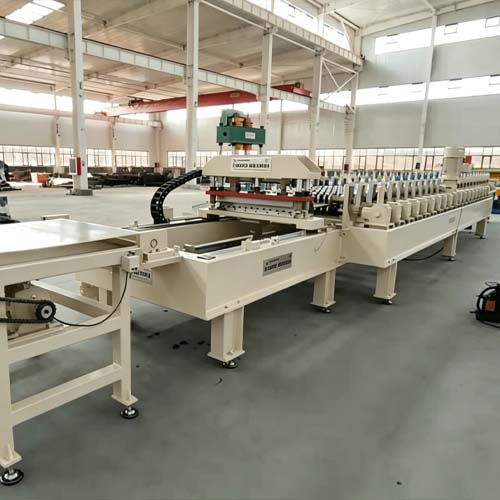

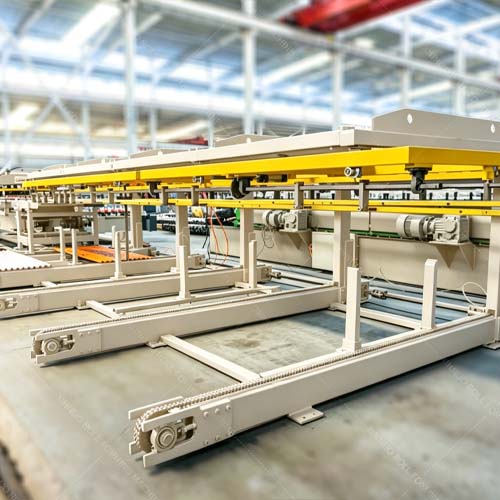

The complete corrugated iron production line generally includes a hydraulic decoiler, feeding and guiding system, leveling device, roll forming machine, hydraulic cutting unit, PLC intelligent control system, transmission mechanism, and finished product receiving table. During operation, steel coils are automatically uncoiled and continuously fed into the forming section. The flat iron sheet passes through multiple precision roller stations where it is gradually shaped into a corrugated roofing profile using advanced cold roll forming technology. This fully automated process ensures stable feeding speed, accurate corrugation geometry, smooth sheet surface quality, and consistent product output during long-term industrial manufacturing.
This corrugated iron machine can process various types of metal materials including galvanized iron coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), and other coated steel materials commonly used in roofing and wall cladding systems. The standard material thickness generally ranges from 0.3mm to 0.8mm depending on production requirements and profile configurations. Feeding width, corrugation height, and sheet profile designs can also be customized according to customer specifications and regional construction standards. Different corrugated iron sheet profiles can be produced for industrial roofing systems, warehouse roofing panels, wall cladding applications, fencing systems, and agricultural construction projects.

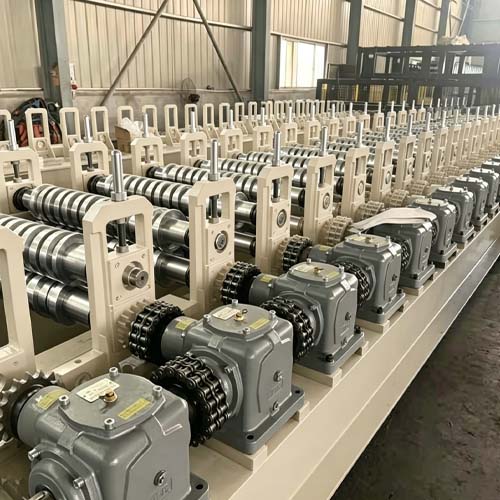

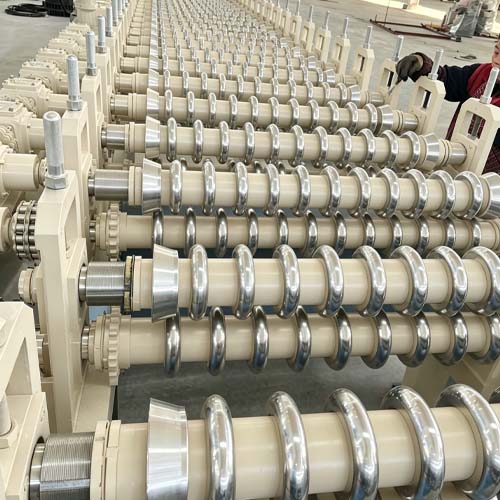

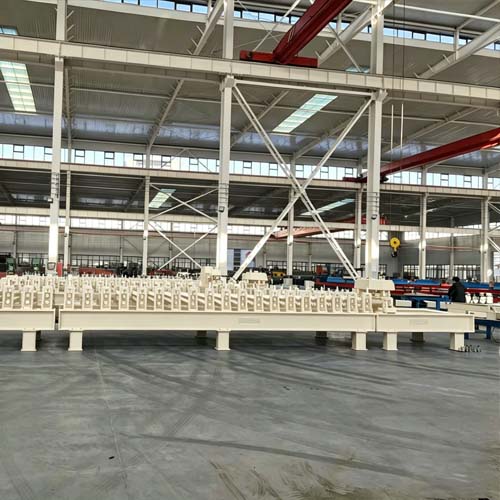

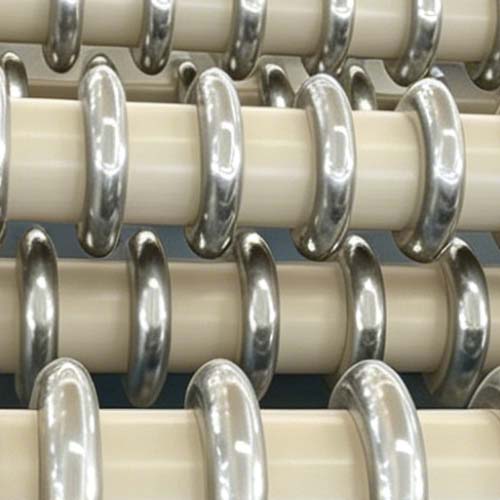

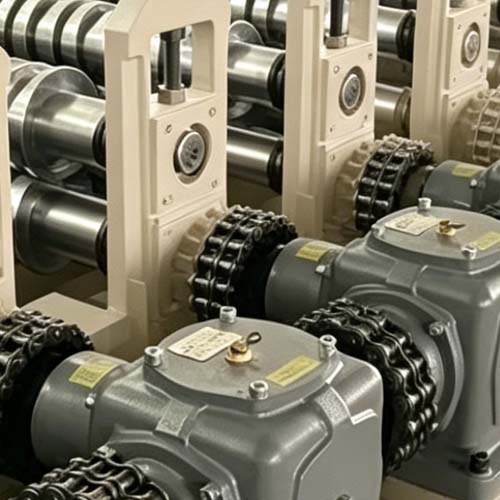

The forming rollers are manufactured from high-quality 45# forged steel with hard chrome plating treatment to improve hardness, wear resistance, and forming precision. Precision-machined shafts and industrial-grade transmission systems ensure stable machine operation and smooth forming performance during continuous high-speed production. The heavy-duty welded steel frame structure effectively minimizes vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with durable hydraulic systems and reliable industrial motors, the machine can maintain efficient production capacity and long operational service life under demanding working conditions.

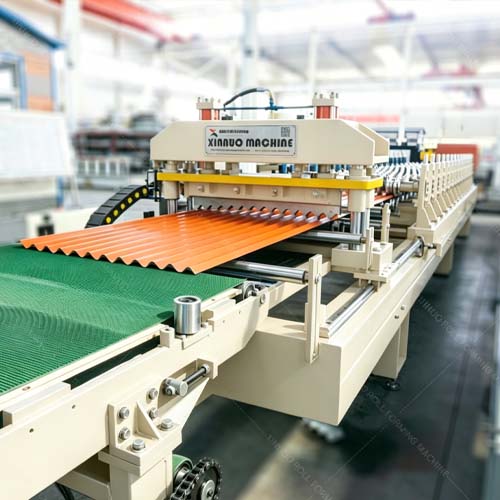

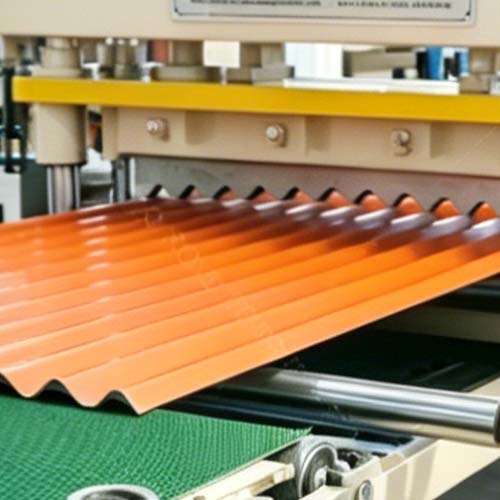

One of the main advantages of this automatic corrugated iron machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while reducing material waste and improving production efficiency. Optional automation configurations such as automatic stacking systems, servo feeding devices, production counters, and fault alarm functions can further enhance production automation and reduce labor costs for modern manufacturing facilities.
Corrugated iron sheets produced by this equipment are widely used in industrial factories, livestock farms, agricultural storage buildings, logistics warehouses, workshops, commercial facilities, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances rainwater drainage performance, and increases resistance against strong wind pressure and severe environmental conditions. These characteristics make corrugated iron roofing sheets highly suitable for long-term outdoor applications in industrial and agricultural environments exposed to rain, sunlight, humidity, and temperature fluctuations.
Compared with traditional sheet manufacturing methods, the corrugated iron machine offers significantly higher production efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology ensures uniform corrugation patterns, smooth sheet surfaces, and accurate profile dimensions throughout the production process. For modern roofing material manufacturers, investing in automated corrugated iron sheet production equipment is an effective solution for expanding manufacturing capacity and improving competitiveness in the global construction materials industry.
