Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

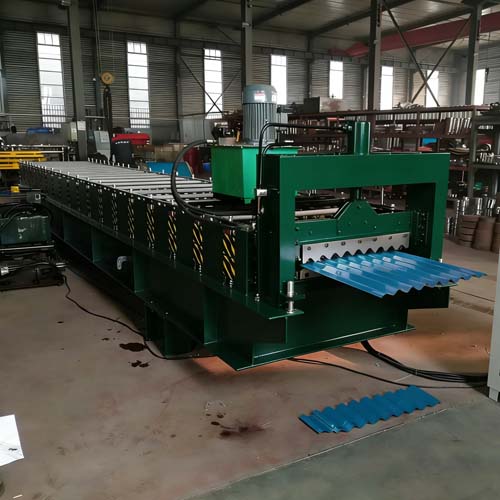

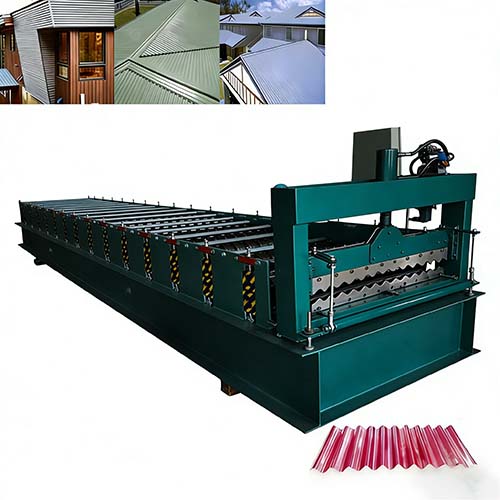

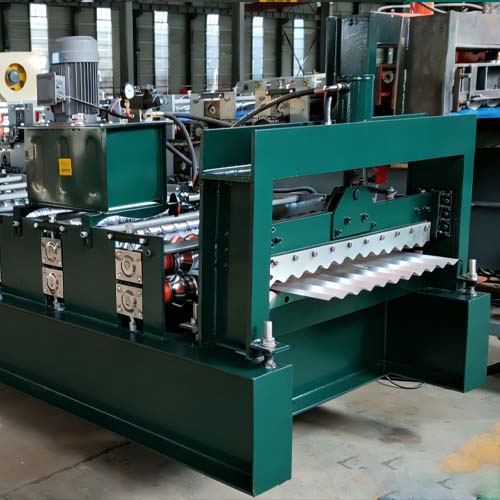

The Industrial Corrugated Iron Machine is a professional cold roll forming production line designed for manufacturing corrugated iron roofing sheets and wall cladding panels used in industrial buildings, warehouses, agricultural facilities, factories, workshops, logistics centers, and commercial construction projects. As steel structure construction continues to expand globally, corrugated iron sheets have become one of the most important roofing materials because of their lightweight design, high durability, corrosion resistance, and economical installation advantages. This machine provides manufacturers with an efficient and automated solution for producing high-quality corrugated iron sheets with stable production performance and accurate profile forming.

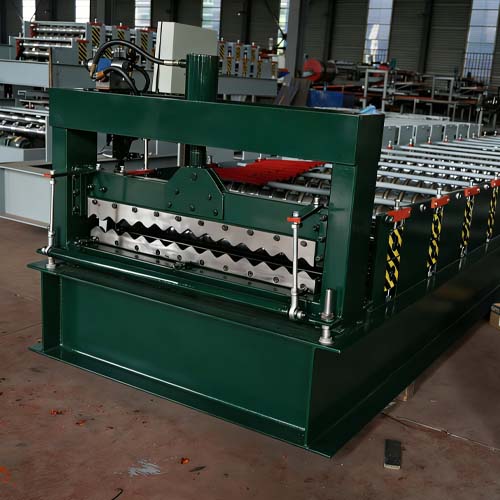

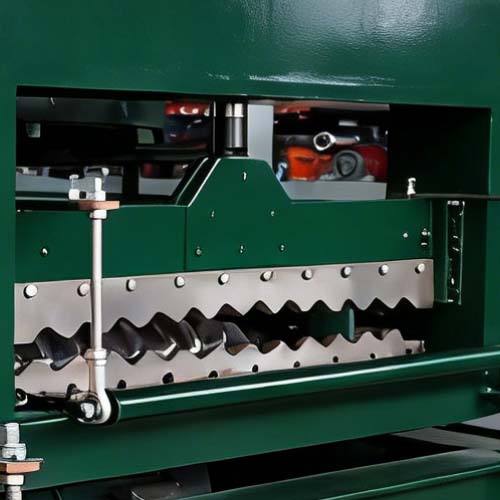

The complete corrugated iron sheet production line generally includes a hydraulic decoiler, feeding and leveling platform, sheet guiding system, roll forming machine, hydraulic cutting station, PLC intelligent control cabinet, transmission mechanism, and finished product receiving table. During operation, steel coils are automatically uncoiled and continuously fed into the forming section. Through multiple precision roller stations, the flat iron sheet is gradually formed into a corrugated roofing profile using continuous cold roll forming technology. The automated production process ensures stable feeding speed, smooth surface quality, precise corrugation dimensions, and consistent product performance during long-term industrial manufacturing.
This corrugated iron machine can process a wide range of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials used in roofing and cladding applications. The standard processing thickness generally ranges from 0.3mm to 0.8mm depending on project requirements and profile configurations. Feeding width, corrugation height, and roofing sheet patterns can also be customized according to regional construction standards and customer specifications. Various corrugated sheet profiles can be produced for industrial roofing systems, warehouse roofs, wall cladding panels, fencing applications, and agricultural building projects.

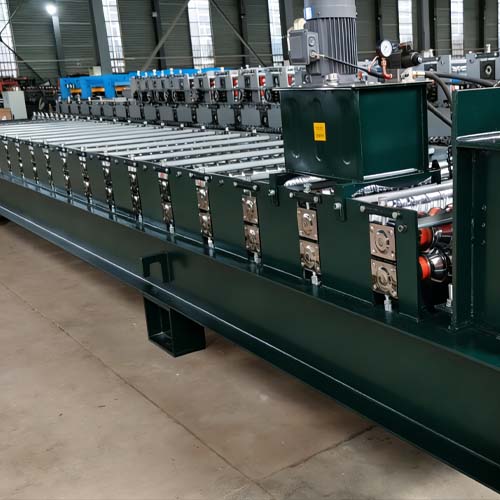

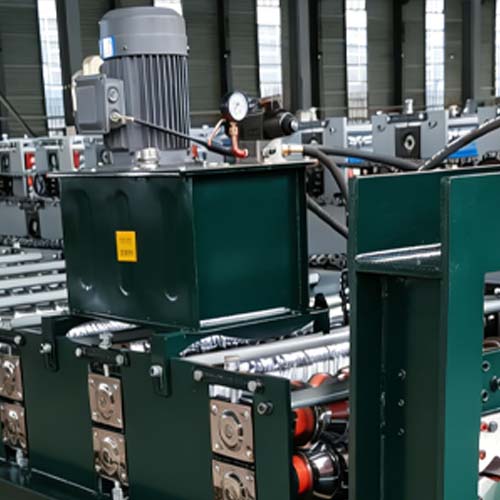

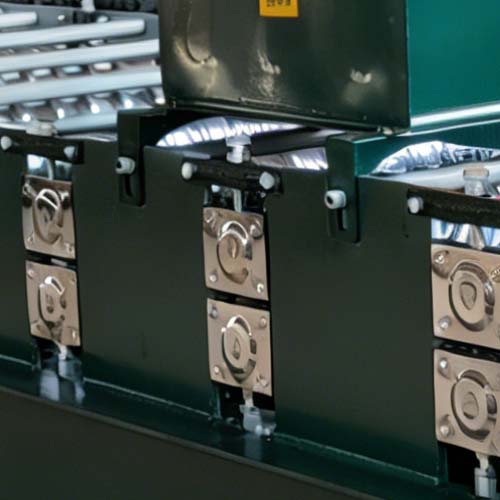

The forming rollers are manufactured from premium 45# forged steel with hard chrome plating treatment to improve roller hardness, wear resistance, and profile precision. Precision-machined shafts and industrial-grade transmission systems ensure smooth machine operation and stable forming performance during continuous high-speed production. The heavy-duty welded machine frame structure effectively minimizes vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with durable hydraulic systems and reliable industrial motors, the equipment can maintain efficient production capacity and long operational service life.

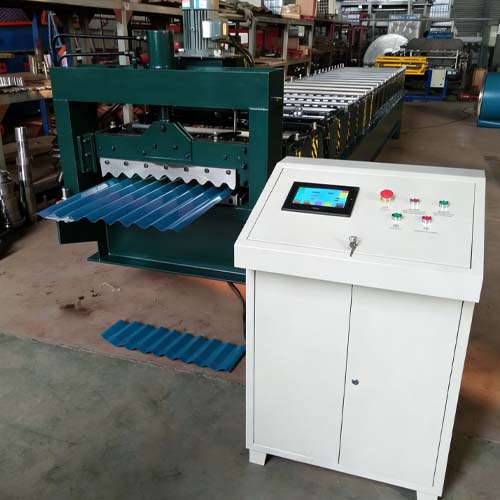

One of the key features of this automatic corrugated iron machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee accurate sheet dimensions while reducing raw material waste and improving manufacturing efficiency. Optional automation configurations such as automatic stackers, servo feeding systems, production counters, and fault alarm functions can further improve production efficiency and reduce labor requirements for modern factories.
Corrugated iron sheets produced by this machine are widely used in industrial factories, livestock farms, agricultural storage facilities, logistics warehouses, workshops, commercial buildings, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances water drainage capability, and increases resistance against strong winds and harsh outdoor weather conditions. These advantages make corrugated roofing panels highly suitable for long-term outdoor use in industrial and agricultural environments exposed to rain, sunlight, humidity, and temperature changes.
Compared with traditional sheet processing methods, the industrial corrugated iron machine provides significantly higher manufacturing efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, smooth sheet surfaces, and accurate profile dimensions throughout the manufacturing process. For modern roofing material manufacturers, investing in automated corrugated iron forming equipment is an effective solution for increasing production capacity and improving competitiveness in the international construction materials market.
