Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

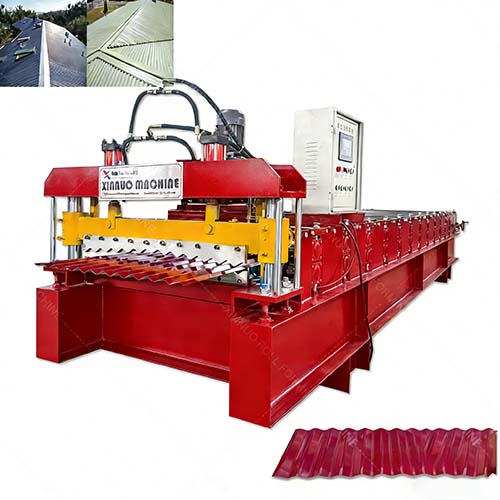

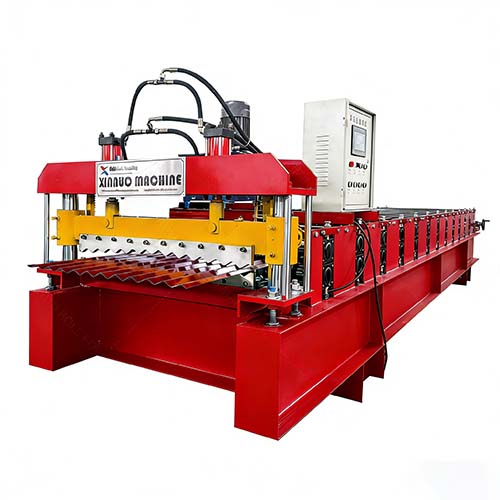

The Automatic Corrugated Iron Machine is an advanced roll forming production system specially designed for producing corrugated iron sheets for industrial roofing, wall cladding, agricultural buildings, warehouses, factories, workshops, and steel silo construction applications. As demand for durable and cost-effective roofing materials continues to increase worldwide, corrugated iron sheets remain one of the most popular choices because of their strong structural performance, corrosion resistance, lightweight design, and easy installation. This machine provides manufacturers with a highly automated and efficient production solution capable of delivering stable product quality and continuous high-speed operation.

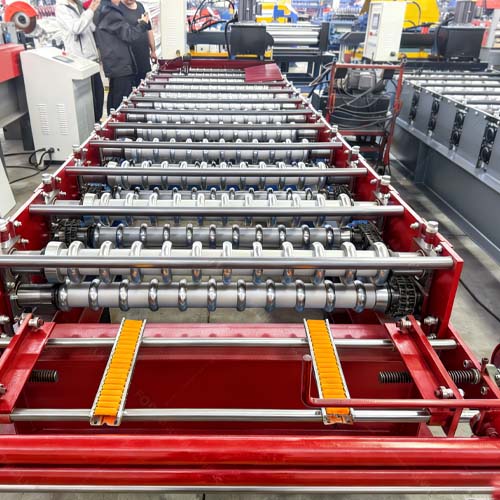

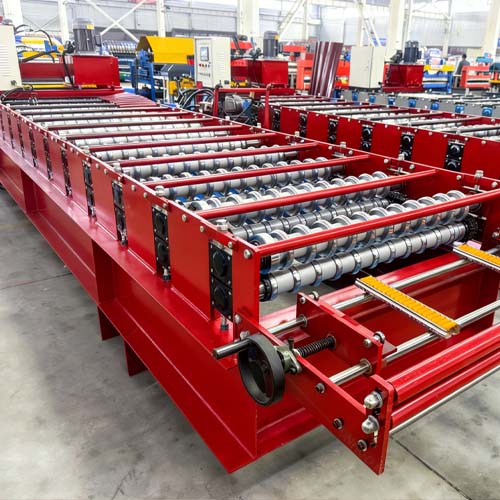

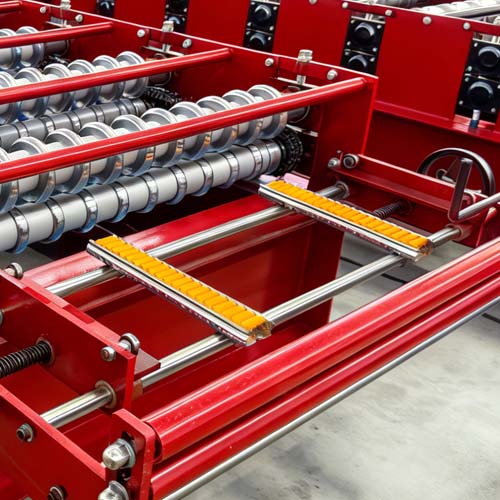

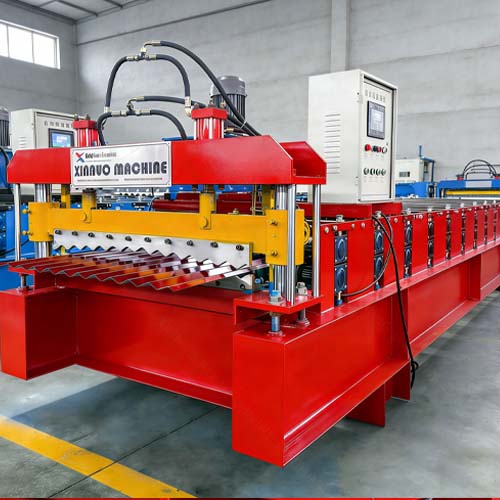

The complete production line is usually composed of a hydraulic decoiler, feeding platform, guiding system, roll forming unit, hydraulic cutting device, PLC control cabinet, transmission mechanism, and product receiving table. During operation, steel coils are smoothly uncoiled and guided into the forming section. A series of precision rollers gradually process the flat metal sheet into a corrugated profile through continuous cold rolling technology. The entire forming process is stable and efficient, ensuring accurate dimensions, smooth corrugation patterns, and consistent sheet quality during mass production.
This corrugated iron sheet machine can process various raw materials including galvanized steel coils, color-coated steel coils (PPGI/PPGL), galvalume steel, and aluminum materials. The machine commonly supports sheet thicknesses from 0.3mm to 0.8mm, while feeding width and corrugation profiles can be customized according to customer requirements and local market demands. Different wave shapes and roofing patterns can be produced for roofing panels, wall sheets, warehouse roofing systems, and industrial cladding applications.

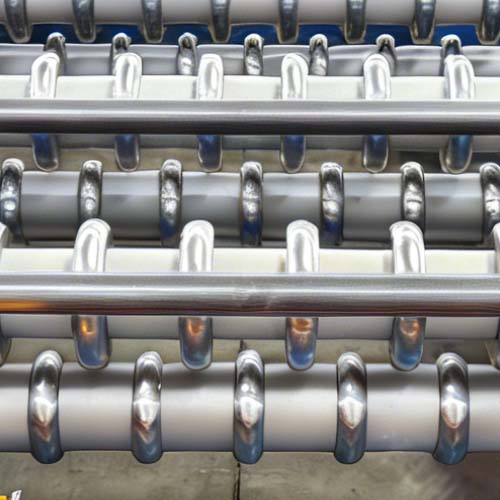

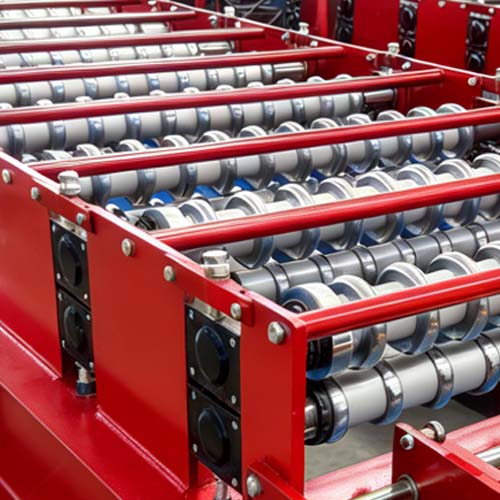

The roll forming rollers are manufactured from premium 45# forged steel with hard chrome surface treatment. This design improves roller hardness, enhances wear resistance, and extends the service life of the machine. Precision-machined shafts and durable transmission components ensure stable performance during continuous operation. The machine frame is constructed using heavy-duty welded steel structures, which greatly reduce vibration and maintain forming accuracy during high-speed production.

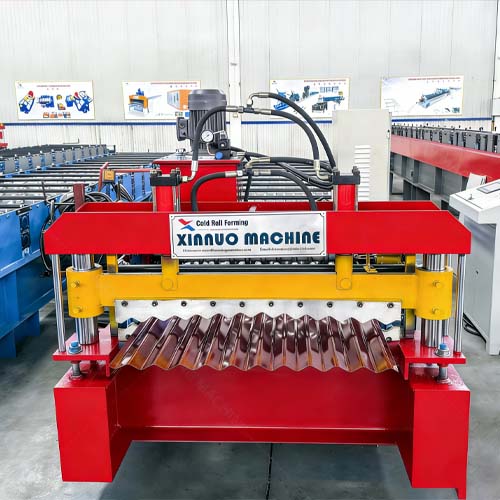

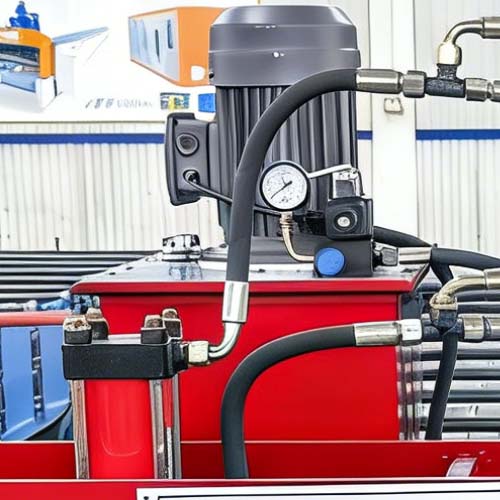

An important advantage of this automatic corrugated iron machine is the intelligent PLC control system equipped with a touchscreen interface. Operators can conveniently set sheet length, cutting quantity, and production parameters directly from the control panel. Automatic measuring and hydraulic cutting systems guarantee high cutting precision and reduce material waste. Some advanced machine configurations also include automatic stacking systems, servo feeding technology, fault alarm systems, and production counting functions, helping manufacturers improve productivity while lowering labor costs.
Corrugated iron sheets produced by this machine are widely applied in industrial roof construction, agricultural storage buildings, factories, logistics centers, livestock farms, workshops, and commercial buildings. The corrugated profile increases structural strength and improves drainage capability while providing excellent resistance against wind pressure and harsh outdoor environments. Because of these advantages, corrugated iron roofing sheets are highly suitable for long-term use in areas exposed to rain, humidity, sunlight, and temperature changes.
Compared with traditional manual production methods, the automatic corrugated iron machine significantly improves manufacturing efficiency and product consistency. Continuous cold roll forming technology ensures uniform corrugation depth, accurate profile dimensions, and smooth surface quality throughout the production process. For modern roofing sheet manufacturers, automated corrugated iron forming equipment has become an essential investment for achieving large-scale production capacity and maintaining competitiveness in the international metal roofing and construction materials market.
