Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

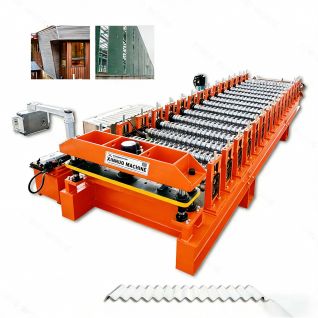

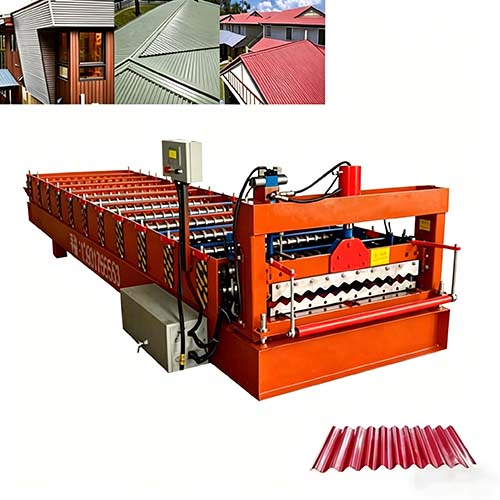

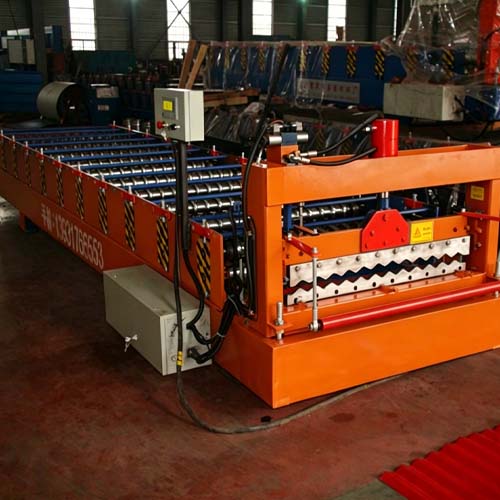

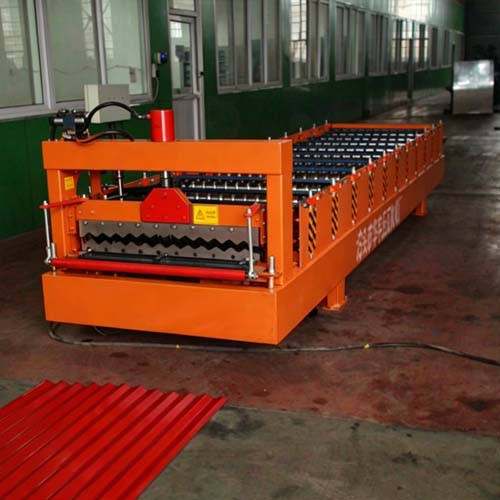

The Corrugated Roof Sheet Machine is a professional automatic roll forming production system developed for manufacturing corrugated metal roofing sheets and wall cladding panels used in industrial buildings, warehouses, workshops, agricultural facilities, logistics centers, factories, and commercial steel structure construction projects. As modern infrastructure and industrial construction industries continue to grow rapidly worldwide, corrugated roofing sheets have become one of the most widely used construction materials because of their lightweight structure, high strength, excellent weather resistance, and economical installation performance. This machine provides manufacturers with an efficient and reliable solution for producing high-quality corrugated roof sheets through continuous automated production.

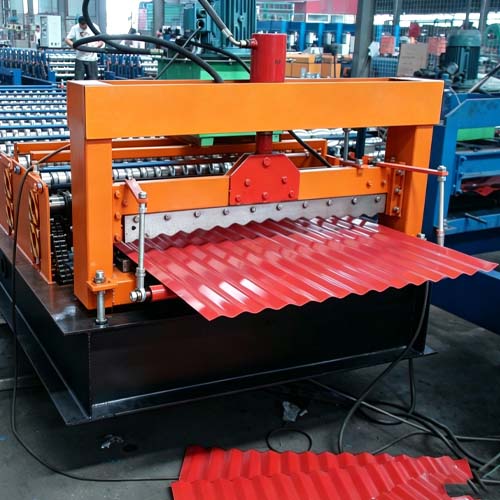

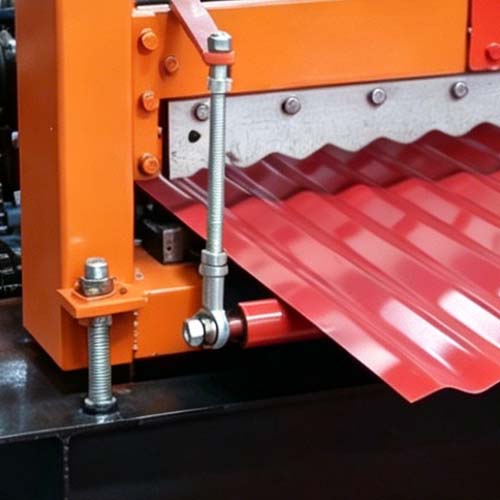

The complete production line generally consists of a hydraulic decoiler, material feeding system, sheet guiding and leveling platform, roll forming machine, hydraulic cutting station, PLC automatic control cabinet, transmission mechanism, and finished product receiving table. During operation, steel coils are automatically uncoiled and smoothly fed into the forming section. The flat metal sheet passes through multiple precision roller stations where it is gradually formed into a corrugated roof profile using advanced cold roll forming technology. The automated manufacturing process ensures stable feeding speed, smooth sheet surfaces, accurate corrugation dimensions, and consistent finished product quality during long-term industrial operation.
This corrugated roof sheet machine is suitable for processing different kinds of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials widely used in roofing and wall cladding systems. The standard material thickness generally ranges from 0.3mm to 0.8mm depending on production requirements and roofing profile configurations. Feeding width, corrugation height, and sheet profile patterns can also be customized according to local construction standards and customer specifications. Various corrugated roofing sheet designs can be produced for industrial roofing systems, wall cladding panels, warehouse roofs, fencing systems, and agricultural building projects.

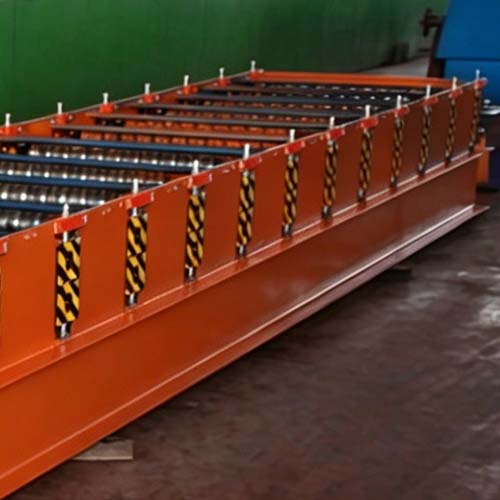

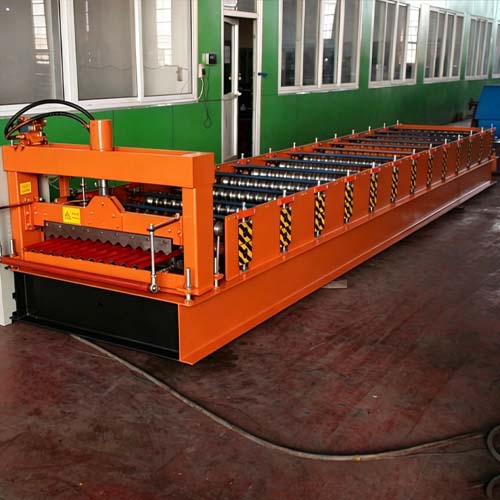

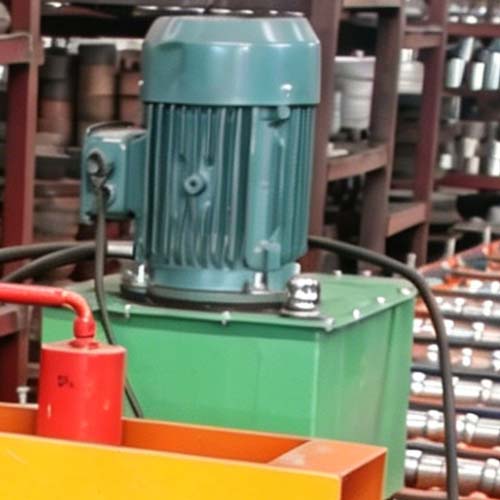

The forming rollers are manufactured from premium-grade 45# forged steel with hard chrome plating treatment to improve roller hardness, wear resistance, and profile precision. Precision-machined shafts and industrial-grade transmission systems ensure stable operation and smooth forming performance during continuous high-speed production. The heavy-duty welded machine frame structure effectively minimizes vibration and maintains accurate profile forming throughout industrial manufacturing processes. Combined with durable hydraulic systems and reliable industrial motors, the equipment can maintain efficient production capacity and long operational service life.

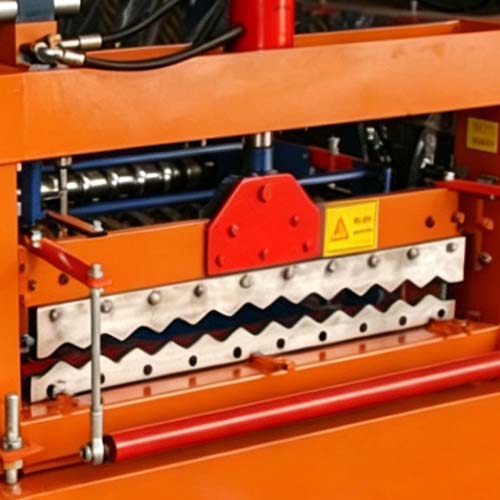

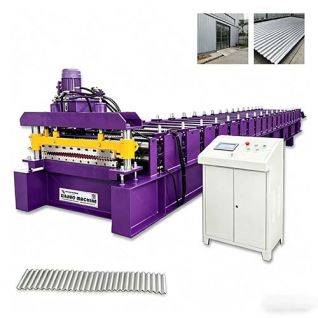

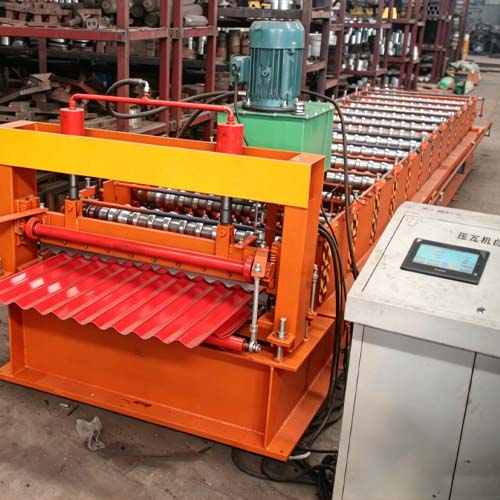

One of the key features of this automatic corrugated roof sheet machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can easily adjust production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while reducing raw material waste and improving manufacturing efficiency. Optional automation configurations such as automatic stacking systems, servo motor feeding devices, production counters, and fault monitoring systems can further improve factory automation and reduce labor costs for modern manufacturing facilities.
Corrugated roofing sheets produced by this machine are widely used in industrial factories, livestock farms, agricultural storage facilities, logistics warehouses, workshops, commercial buildings, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances rainwater drainage capability, and increases resistance against strong wind pressure and severe environmental conditions. These advantages make corrugated roofing panels highly suitable for long-term outdoor use in industrial and agricultural environments exposed to rain, humidity, sunlight, and temperature fluctuations.
Compared with conventional sheet fabrication methods, the corrugated roof sheet machine offers significantly higher manufacturing efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, smooth surface finishes, and accurate profile dimensions throughout the production process. For modern roofing material manufacturers, investing in automated corrugated roof sheet production equipment is an effective solution for increasing production capacity and improving competitiveness in the international construction materials industry.
