Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com
Grain Silo Roll Forming Machine have been recognized for their robust design, 1mm-3mm thickness capability, a variety of pre- or post-punch / cut options, mechanical or hydraulic press system designs. They are reliable and accurate. Available destacking, stacking, and curving also make them extremely flexible.
Silo Roll Forming Machine technical details
| Grain Silo Roll Forming Machine | ||
| Components | Items | Specifications |
|
Roll Forming Machine part |
Forming station | 20 rollers |
| Material of rollers | Bearing steel GCR15, with chrome coated and quenching treatment. | |
| Diameter of shaft | 110 mm solid, with tempering heat treatment. | |
| Material of shafts | 45# steel with tempering treatment | |
| Main Power | 15 Kw (K serious main motor power) | |
| Main frame system | 450mm H beam structure with tempering heat treatment,wall panel thickness 25 mm heavy duty. | |
| Transmission | By 1.0 inch double hanging drive chain | |
| Bearing | 6214 ball bearing | |
| Curving machine | Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts. | |
| Curving Radius: ≥8m | ||
| Side Perforation Part | 2 groups, cylinder diameter 80mm, manual adjustment of punching position | |
| Horizontal head perforation part | Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick. | |
| Cutting System | Cutting Cut off method |
Hydraulic cutting |
| Drive | Driven by two Ø 110 cylinders | |
| Cutting die material | Cr12,processing technology: rough material milling machine processing – vacuum heat treatment HRC58-60 – flat grinding processing end face – wire cutting processing outline – engraving machine fine carving shape. | |
| Electric control system | Parameter settings | Through Touch Screen |
| PLC and Transducer | DELTA From Taiwan | |
| Control box | Vertical independent electric control cabinet | |
| Control type | By 7 inch touch screen | |
| Touch screen language | Chinese, English, Spanish | |
| Voltage | 380V,50HZ,3phase or customized | |
| Length measurement | Omron counter | |

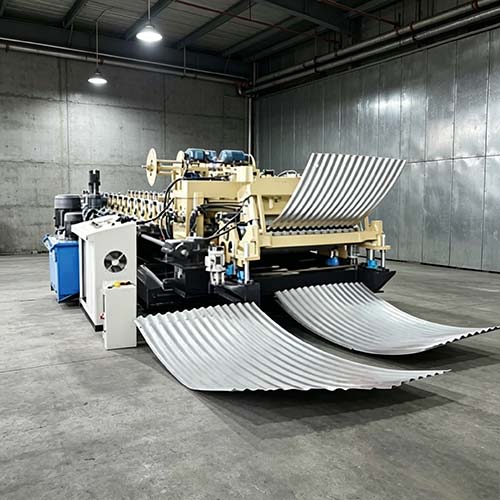

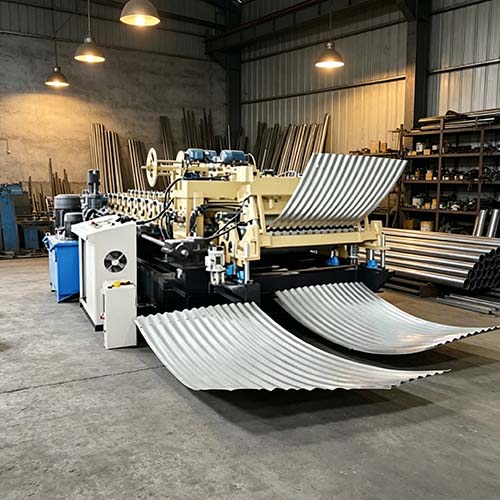

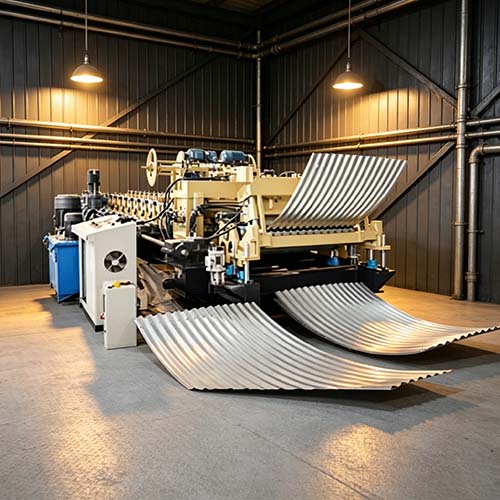

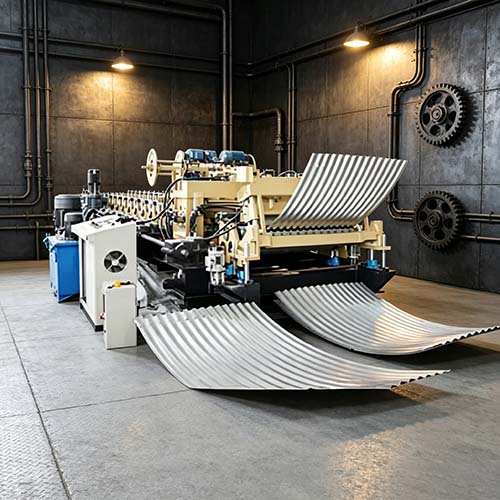

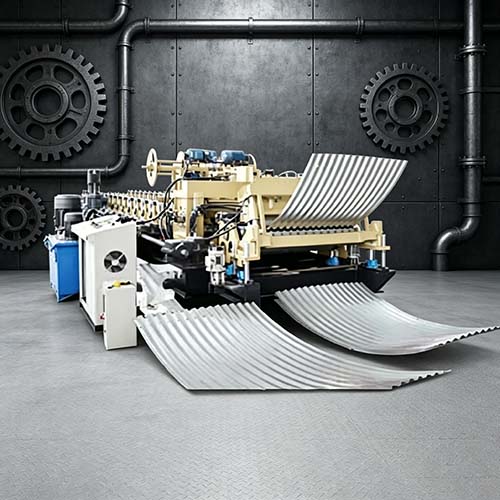

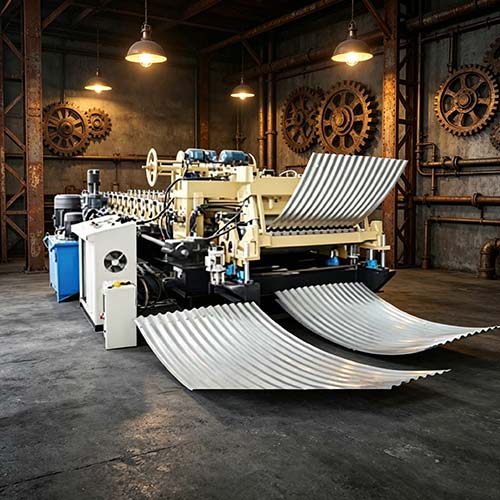

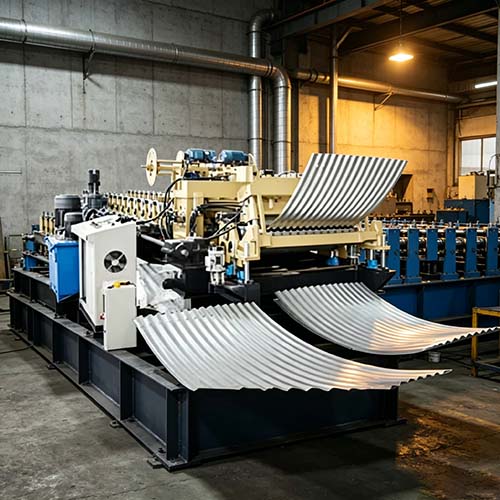

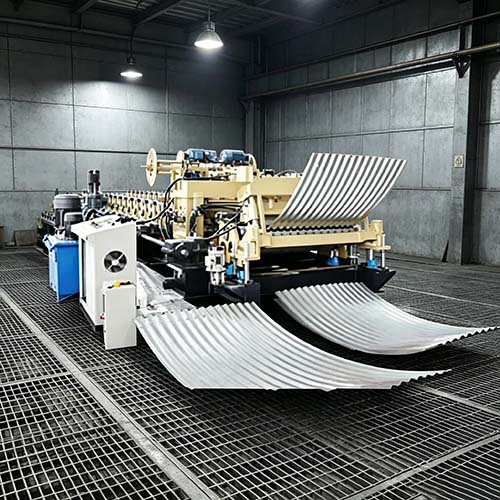

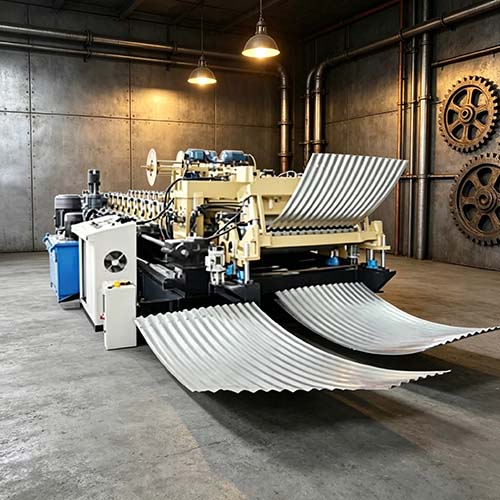

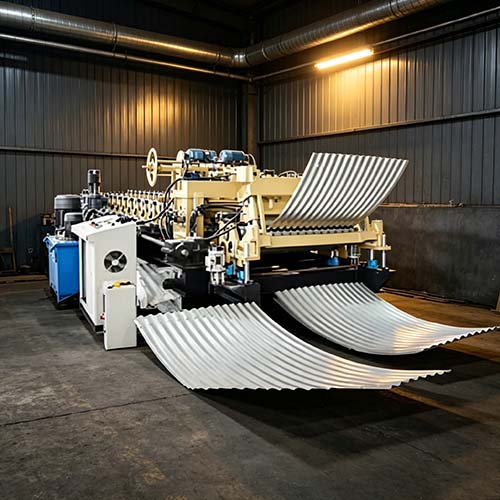

Grain Silo Roll Forming Machine more photos showing
