Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

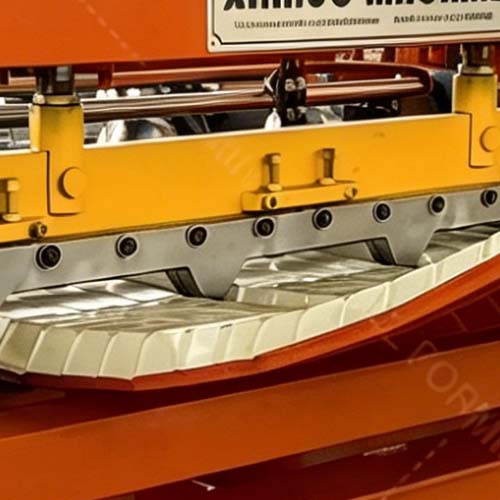

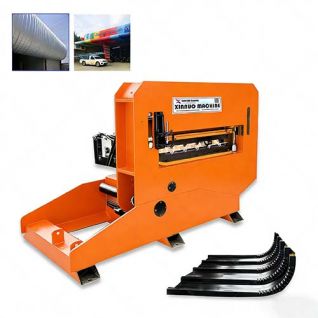

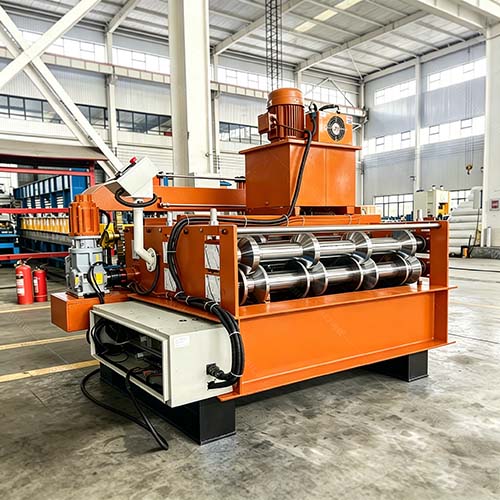

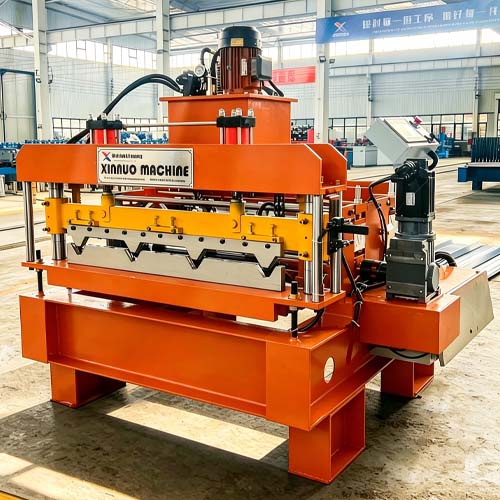

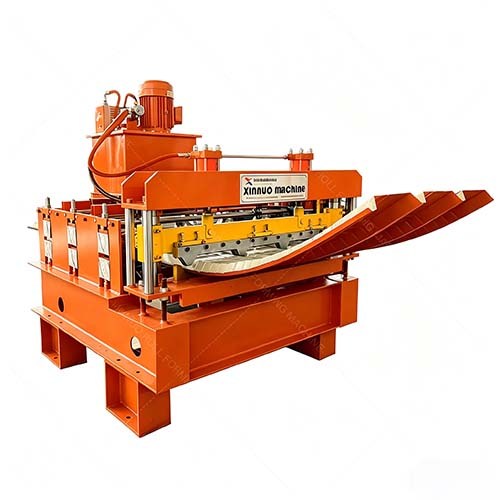

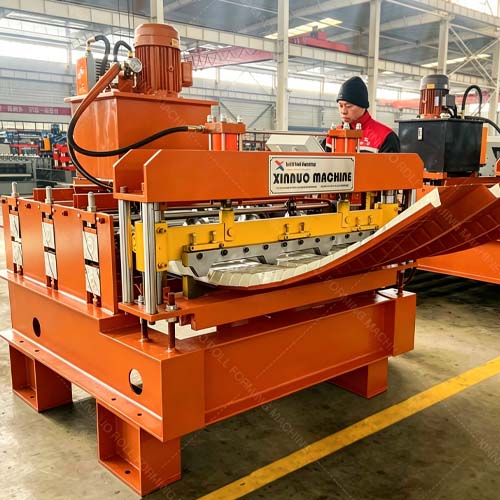

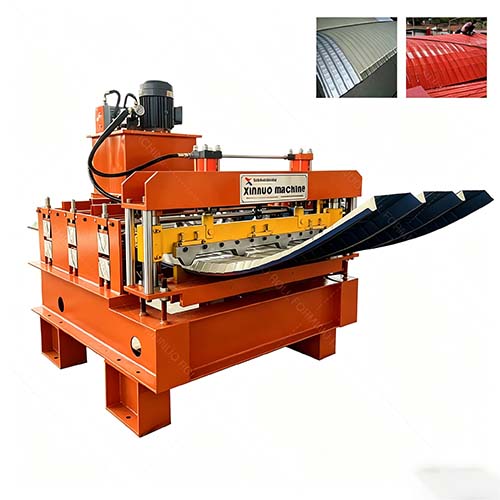

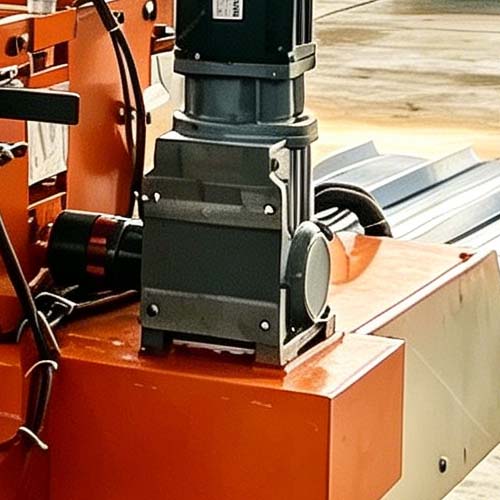

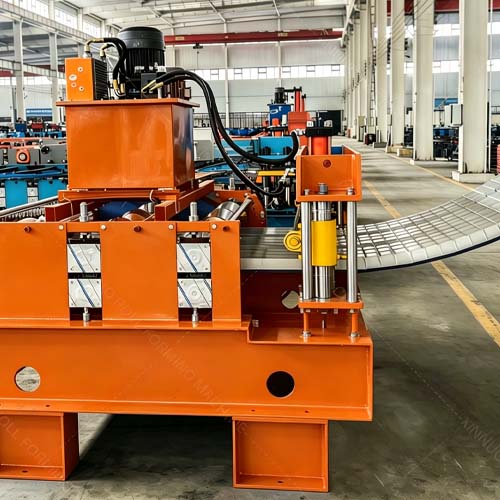

roof panel curving machine reference picture:
roof panel curving machine specification:
|
No.
|
roof panel curving machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
3Rows
|
|
3
|
Dimensions
|
2.6*1.5*1.6m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|

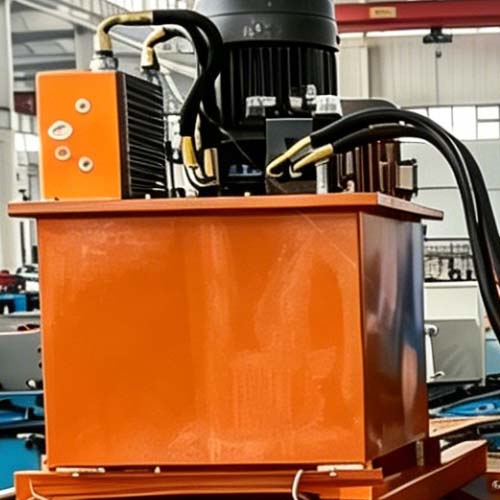

Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
3-5m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 2500kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
roof panel curving machine after Sales Service
After Sales Service :
About our company:
We are Tianjin Xinnuo Machinery Co, Ltd. Our company mainly engaged in producing all kinds of cold roll forming machines. We start to export roll forming machine since 2000 year.We could design roll forming machine according to customer’s different drawing size. Our machines belong to OEM products.
Roll foming machine’s Advantage as below:
| Warranty | 2 Years and lifetime service |
| Electrical parts brand | Simens,Taiwan Delta,Omron,Schneider |
| Export experience | Exported to 85+ countries |
| After sales service | 12 hours online service |
| Certification | CE,ISO9001,SGS |
| Our team | 5 CAD engineers,10 technicians and 30 sales |
