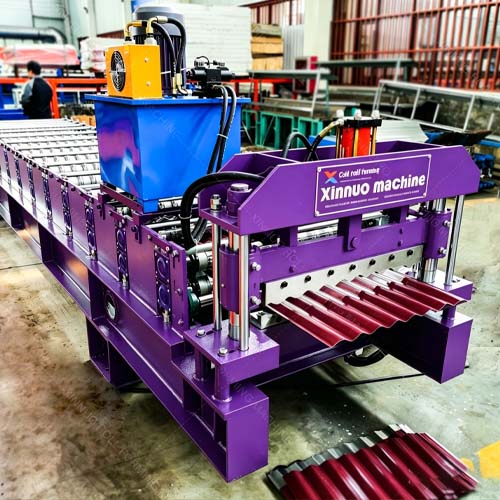

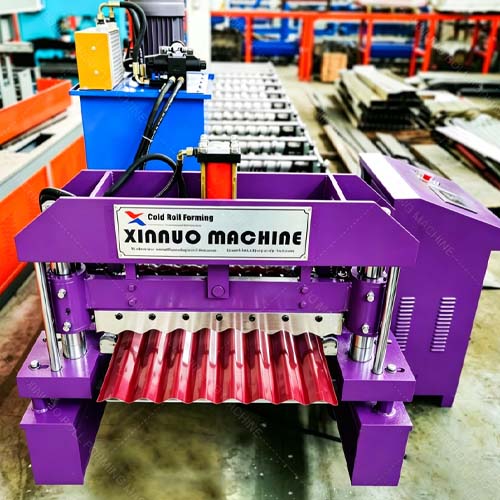

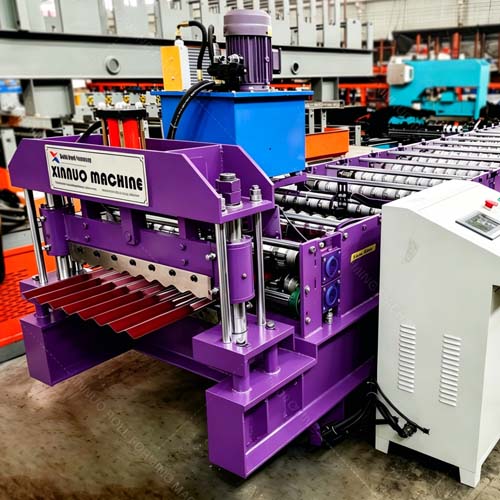

Metal Corrugated Machine for High-Efficiency Roofing Sheet Manufacturing Line

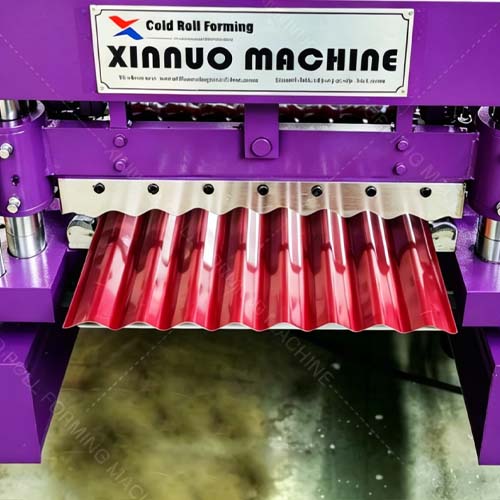

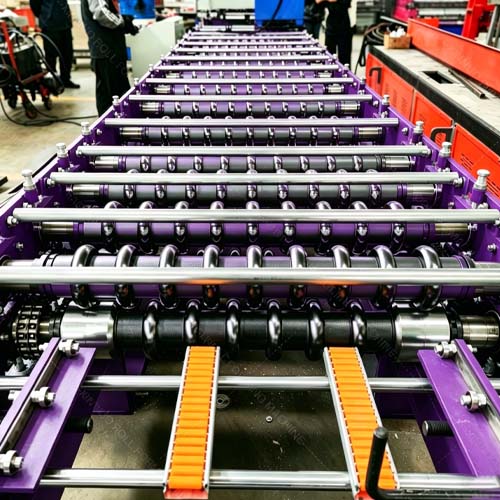

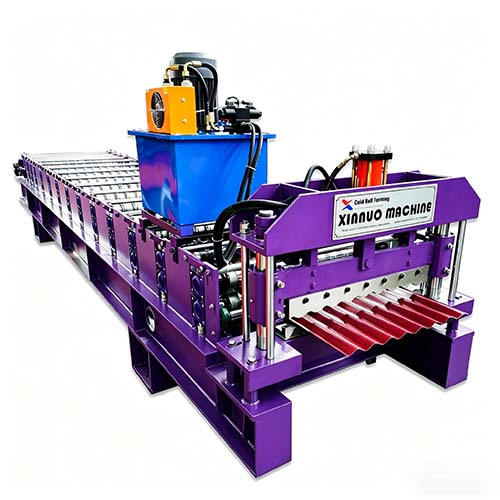

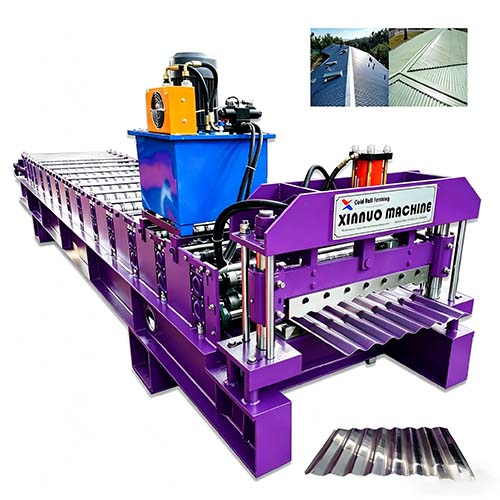

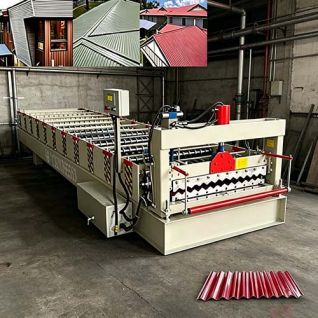

The production system consists of multiple integrated components, including a hydraulic uncoiler, sheet feeding and guiding unit, leveling mechanism, precision roll forming section, automatic hydraulic cutting device, PLC intelligent control system, transmission system, and finished product collection platform. During operation, metal coils are automatically unwound and steadily guided into the forming line. The flat metal sheet is progressively shaped through a series of roller stations that apply controlled pressure to form a consistent corrugated profile with uniform wave structure and smooth surface quality.

This metal corrugated machine is suitable for processing a variety of raw materials such as galvanized steel coils, galvalume steel sheets, color-coated steel sheets (PPGI/PPGL), and aluminum materials. It supports a typical material thickness range from 0.3mm to 0.8mm, making it suitable for both light and medium-duty roofing applications. The machine can be customized to produce different corrugated profiles according to project requirements, including variations in wave height, pitch spacing, and sheet width. These features make it suitable for different construction standards and architectural design needs across global markets.

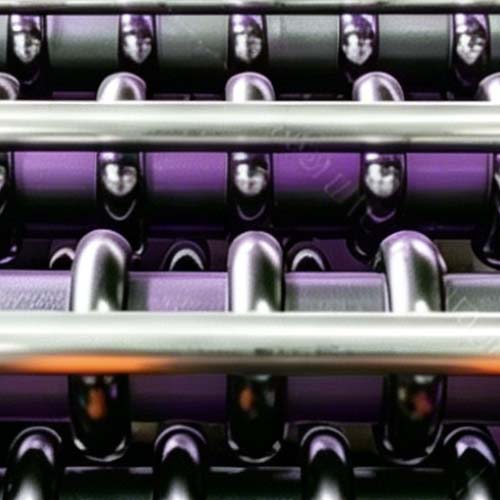

The machine structure is built with a reinforced welded steel frame to ensure high rigidity and long-term operational stability. Roll forming components are manufactured from high-strength alloy steel and undergo precision machining with hard chrome surface treatment to enhance wear resistance and maintain forming accuracy during continuous production. The synchronized transmission system ensures stable sheet movement, reduces vibration, and improves overall product consistency.

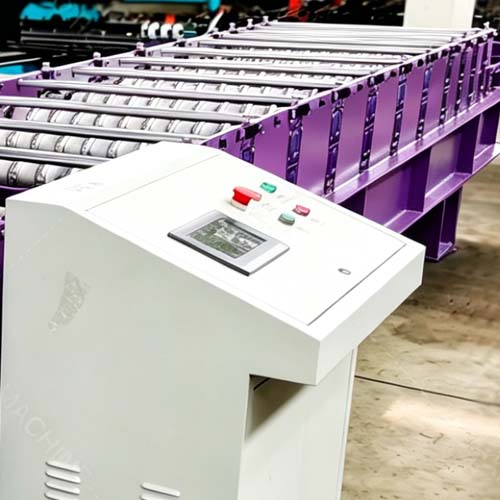

A key feature of this metal corrugated machine is its intelligent PLC control system equipped with a touchscreen interface. Operators can easily configure production parameters such as sheet length, batch quantity, and cutting accuracy. The system automatically coordinates feeding speed, forming process, and cutting operation, significantly reducing manual intervention and improving production efficiency. Safety protection functions, emergency stop systems, and real-time monitoring further enhance operational reliability.

Corrugated metal sheets produced by this equipment are widely used in industrial roofing systems, agricultural buildings, storage facilities, wall cladding structures, temporary shelters, and large-span steel construction projects. The corrugated structure enhances load-bearing capacity, improves water drainage efficiency, and increases resistance against wind pressure and severe weather conditions, making it suitable for long-term outdoor applications.

Compared with traditional manufacturing methods, this metal corrugated machine provides higher automation, greater production efficiency, and more stable product quality. It enables continuous operation with reduced labor costs and improved output consistency. For modern roofing material manufacturers, this equipment offers an effective solution to expand production capacity, optimize manufacturing processes, and strengthen competitiveness in the global construction materials industry.
