Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

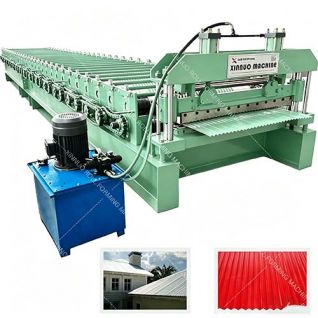

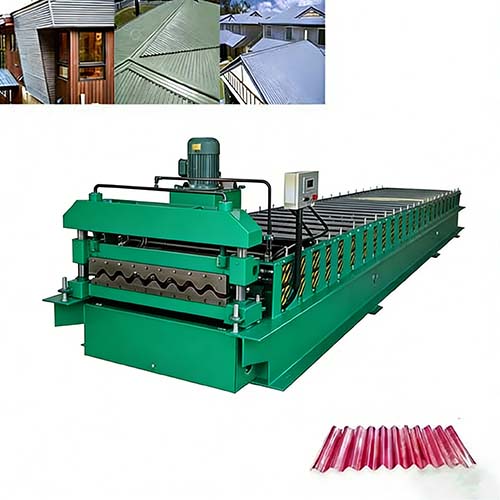

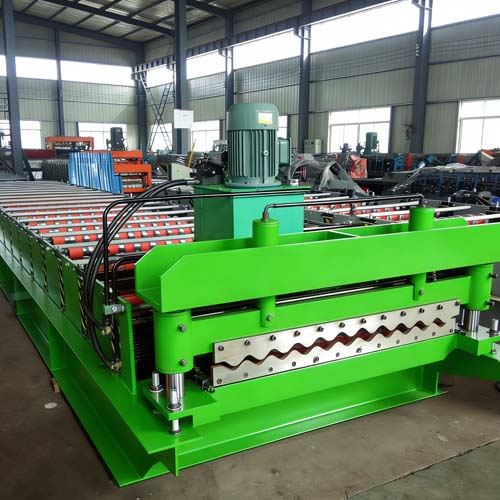

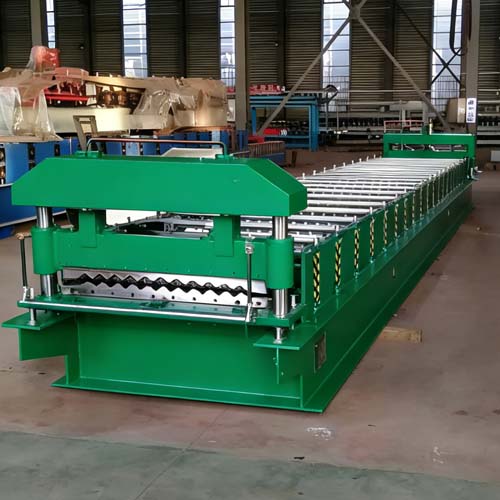

The Corrugated Sheet Rolling Machine is a modern automatic roll forming system developed for manufacturing corrugated metal roofing sheets and wall cladding panels used in industrial buildings, warehouses, agricultural facilities, workshops, logistics centers, factories, and steel structure construction projects. As the demand for durable and economical roofing materials continues to increase worldwide, corrugated metal sheets have become one of the most commonly used construction materials because of their lightweight structure, excellent corrosion resistance, strong load-bearing capability, and long service life. This machine provides manufacturers with an efficient and reliable solution for producing high-quality corrugated sheets through continuous automated production.

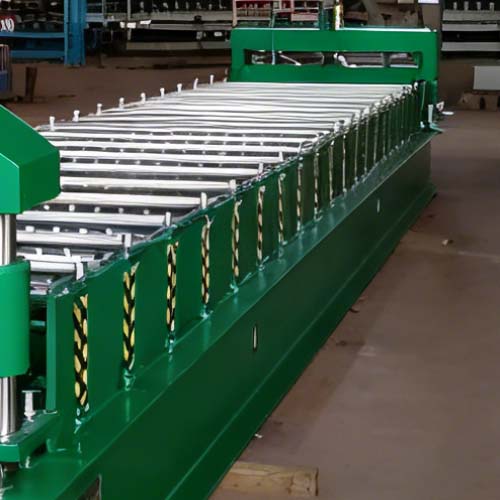

The complete production line generally includes a hydraulic decoiler, feeding and guiding system, leveling platform, rolling and forming machine, hydraulic cutting station, PLC intelligent control cabinet, transmission mechanism, and finished sheet receiving table. During operation, steel coils are automatically uncoiled and smoothly fed into the rolling section. The flat metal sheet passes through multiple precision roller stations where it is gradually rolled and formed into a corrugated profile using advanced cold rolling technology. This fully automated manufacturing process ensures stable feeding speed, accurate corrugation dimensions, smooth surface quality, and consistent product performance during long-term industrial production.
This corrugated sheet rolling machine is suitable for processing galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum materials, and other coated metal materials commonly used in roofing and cladding systems. The standard processing thickness generally ranges from 0.3mm to 0.8mm depending on customer production requirements and profile configurations. Feeding width, corrugation height, and profile patterns can also be customized according to local construction standards and market demands. Different corrugated sheet profiles can be manufactured for roofing systems, industrial siding panels, warehouse roofing, fencing applications, and agricultural construction projects.

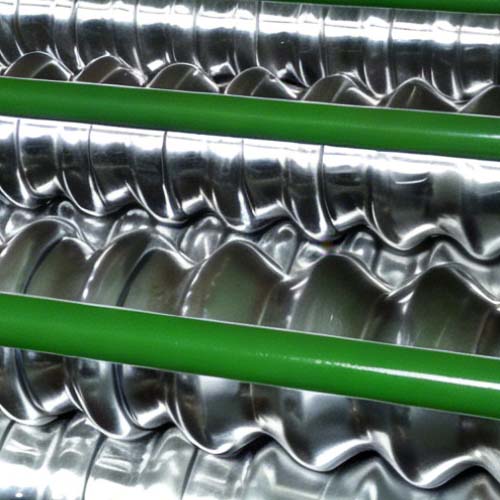

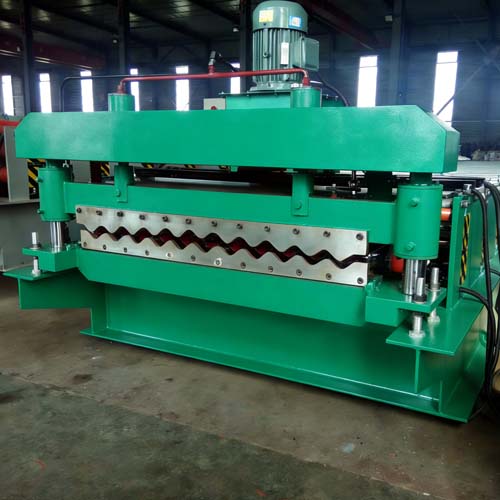

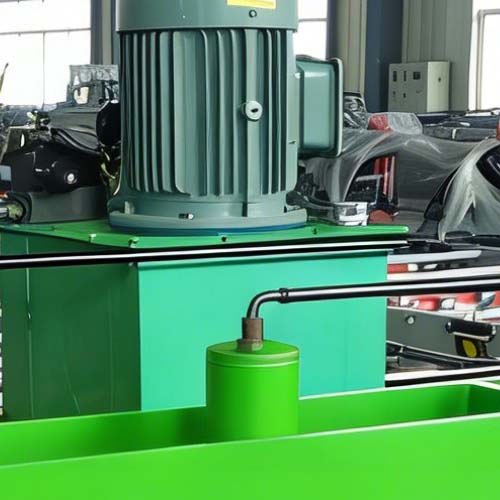

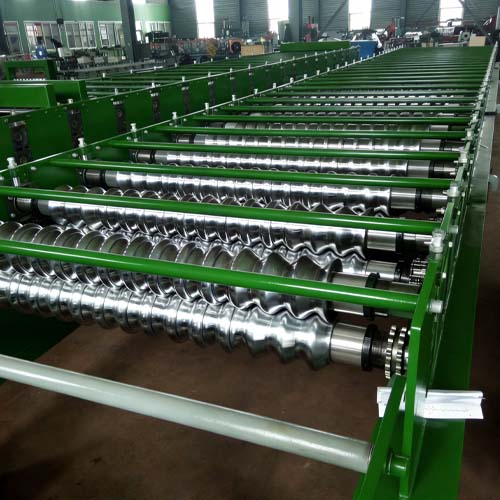

The rolling and forming rollers are manufactured from premium 45# forged steel with hard chrome plating treatment, which improves roller hardness, wear resistance, and forming precision. Precision-machined shafts and industrial-grade transmission systems ensure smooth operation and stable forming performance during continuous high-speed production. The heavy-duty welded steel machine frame effectively minimizes vibration and maintains accurate profile forming throughout industrial manufacturing processes. Combined with durable hydraulic systems and reliable industrial motors, the machine can maintain efficient production capacity and long operational service life.

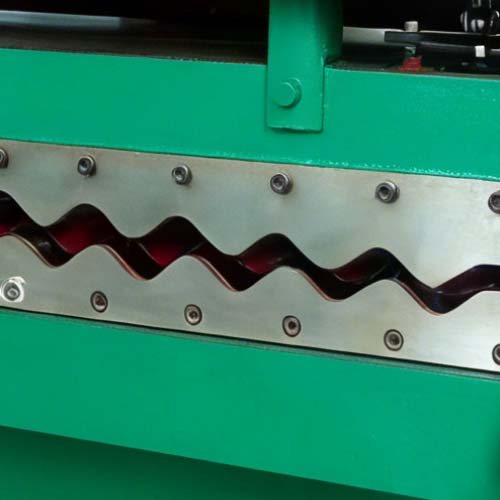

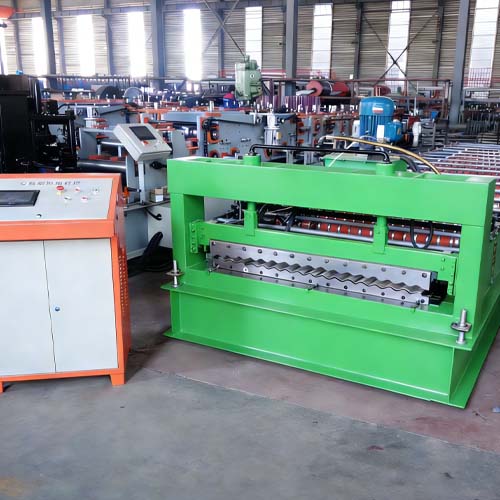

One of the major advantages of this automatic corrugated sheet rolling machine is its advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can easily adjust production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while minimizing material waste and improving manufacturing efficiency. Optional automation systems such as automatic stackers, servo motor feeding devices, production counters, and fault alarm functions can further improve factory automation and reduce labor costs.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
