Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

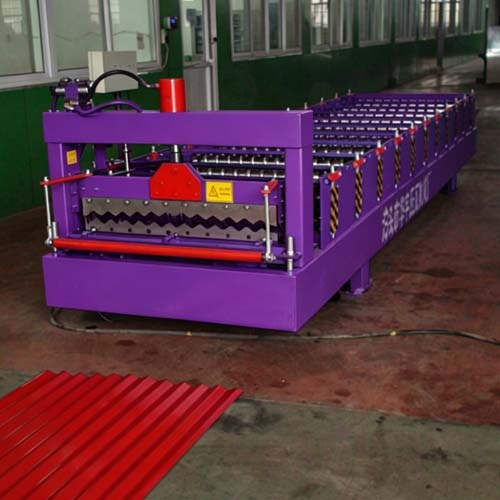

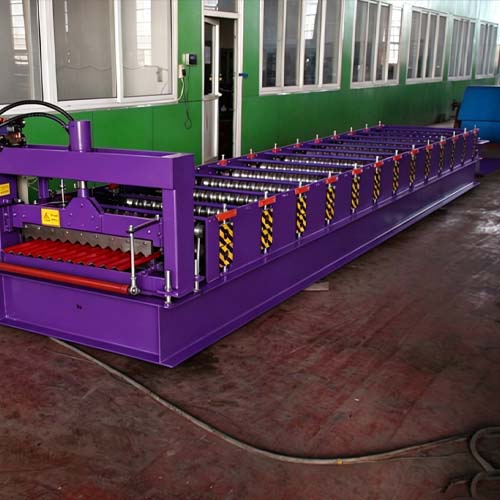

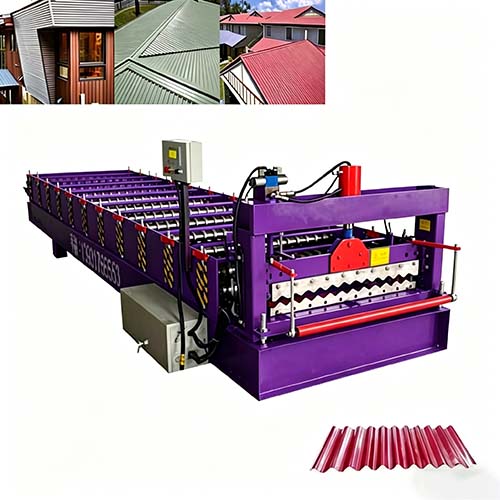

The Corrugated Roofing Sheet Forming Machine is an advanced automatic roll forming production system designed for manufacturing corrugated metal roofing sheets and wall cladding panels widely used in industrial buildings, warehouses, agricultural facilities, workshops, logistics centers, factories, and commercial steel structure projects. With the continuous expansion of global infrastructure development, corrugated roofing sheets have become one of the most popular construction materials due to their lightweight structure, excellent durability, strong corrosion resistance, and cost-efficient installation performance. This machine provides manufacturers with a stable and efficient solution for continuous production of high-quality corrugated roofing panels with precise forming accuracy and reliable industrial performance.

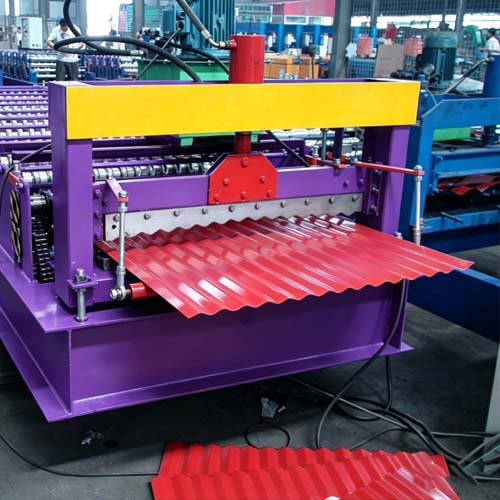

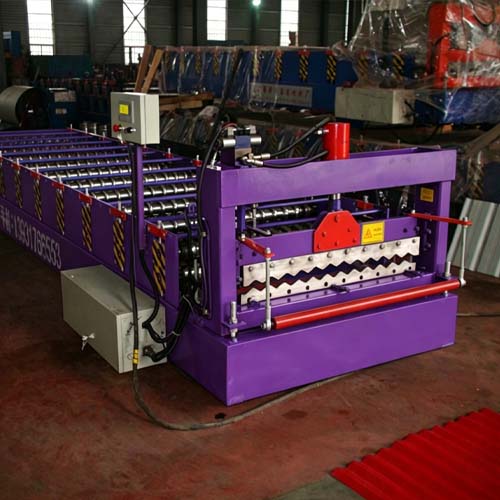

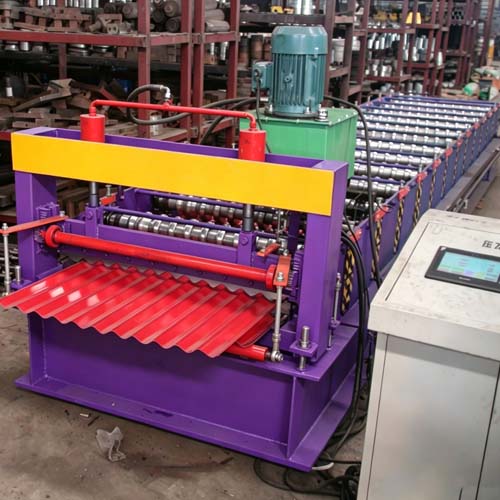

The complete corrugated roofing sheet forming production line generally consists of a hydraulic decoiler, feeding and leveling system, sheet guiding platform, roll forming machine, hydraulic cutting unit, PLC intelligent control cabinet, transmission mechanism, and finished product receiving table. During operation, steel coils are automatically uncoiled and smoothly fed into the forming section. The flat metal sheet gradually passes through multiple precision roller stations where it is continuously shaped into a corrugated roofing profile using advanced cold roll forming technology. This automated production process ensures stable feeding speed, smooth surface finish, accurate corrugation dimensions, and consistent product quality throughout long-term industrial manufacturing.
This corrugated roofing sheet forming machine can process a wide range of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated metal materials commonly used in roofing and wall cladding applications. The standard processing thickness usually ranges from 0.3mm to 0.8mm depending on production requirements and profile configurations. Feeding width, corrugation height, and roofing sheet designs can also be customized according to customer specifications and regional construction standards. Various corrugated roofing profiles can be manufactured for industrial roofing systems, warehouse roofs, wall cladding panels, fencing systems, and agricultural building projects.

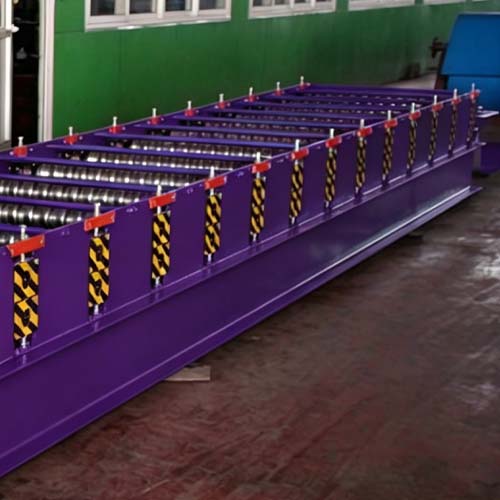

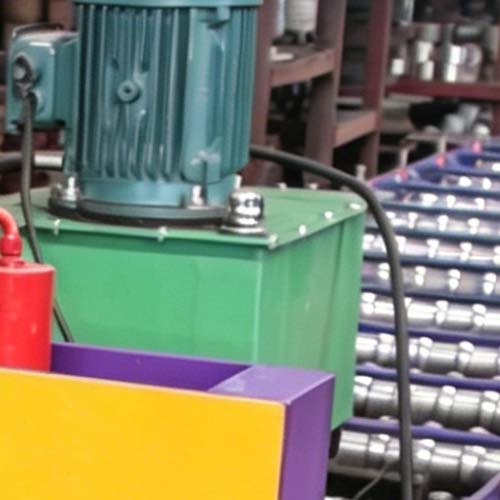

The forming rollers are manufactured from premium 45# forged steel with hard chrome plating treatment to improve roller hardness, wear resistance, and forming precision. Precision-machined shafts and industrial-grade transmission systems ensure stable machine operation and smooth forming performance during continuous high-speed production. The heavy-duty welded steel machine frame effectively reduces vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with reliable hydraulic systems and industrial motors, the machine can maintain efficient production capacity and long operational service life under demanding industrial conditions.

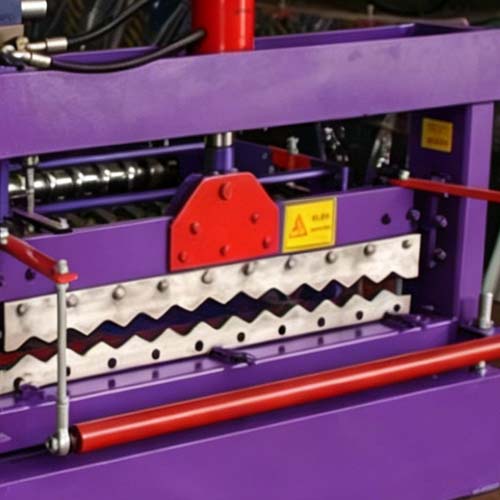

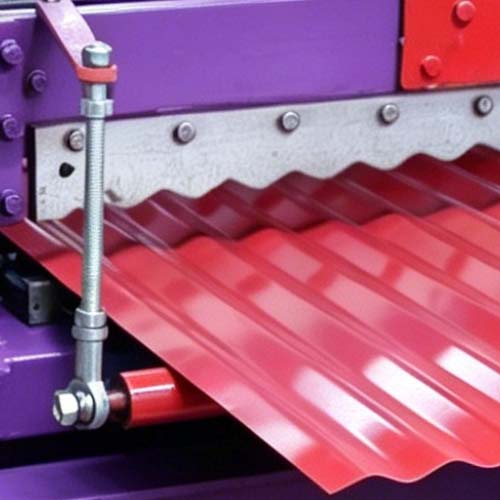

One of the key advantages of this automatic corrugated roofing sheet forming machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can easily set production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while reducing material waste and improving manufacturing efficiency. Optional automation systems such as automatic stackers, servo feeding devices, production counters, and fault alarm functions can further enhance production efficiency and reduce labor costs in modern manufacturing facilities.
