Corrugated Roof Sheet Making Machine Suppliers – Automatic Roofing Sheet Production Solution

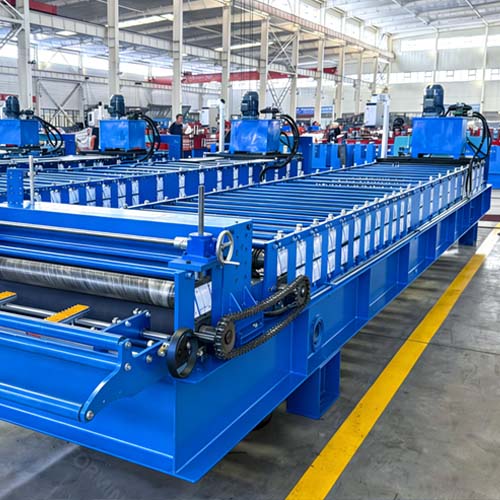

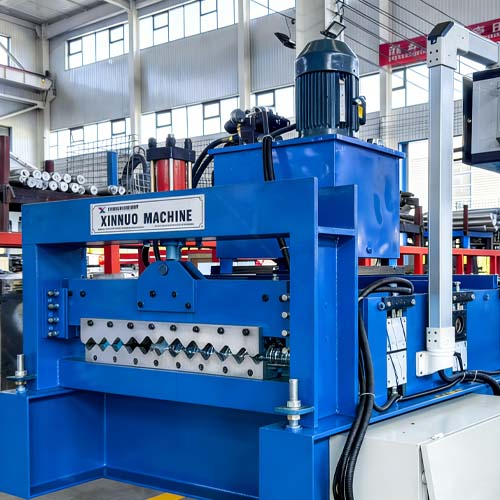

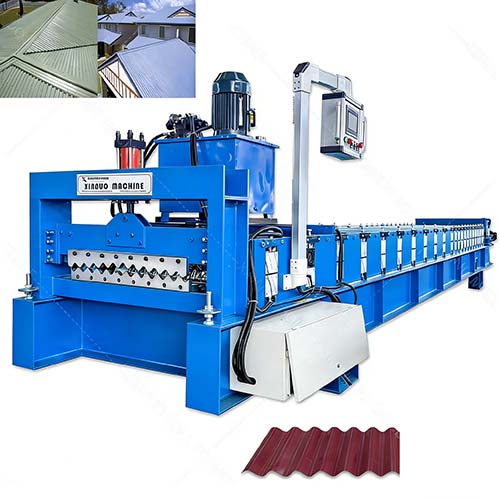

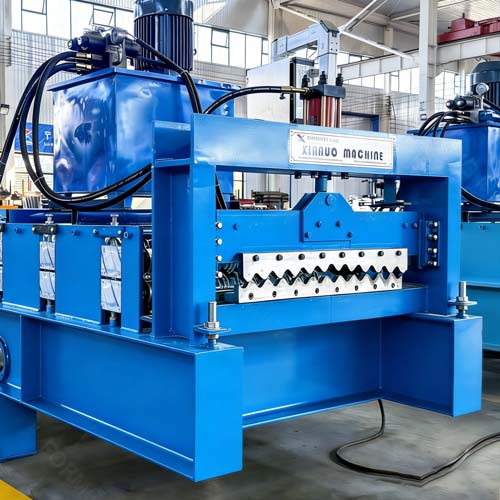

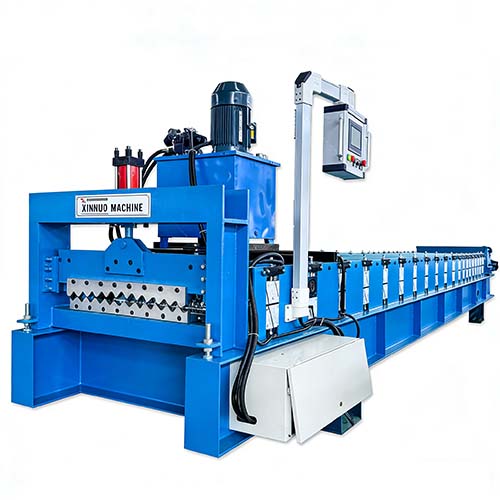

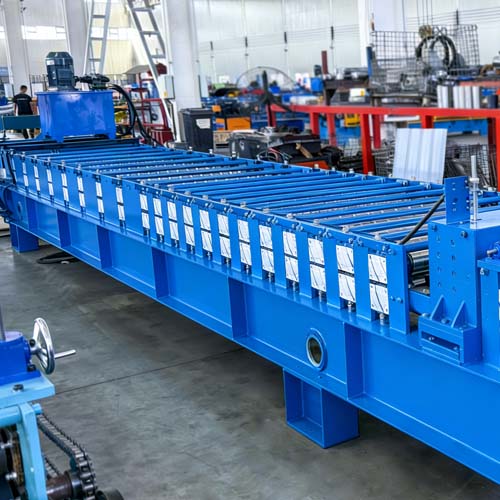

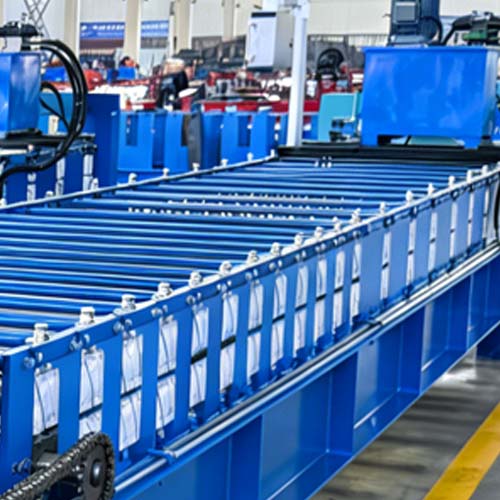

The production line generally includes a hydraulic decoiler, feeding and guiding system, roll forming main machine, hydraulic cutting device, PLC intelligent control cabinet, transmission system, and output receiving table. During operation, metal coils are automatically uncoiled and continuously fed into the roll forming section. Multiple precision roller stations gradually shape the flat steel sheet into a corrugated roofing profile through continuous cold roll forming technology. The automated production process ensures stable forming speed, smooth material feeding, consistent corrugation depth, and accurate sheet dimensions during long-term industrial manufacturing operations.

This corrugated roof sheet making machine is suitable for processing galvanized steel coils, galvalume steel coils, pre-painted steel coils (PPGI/PPGL), aluminum coils, and other metal sheet materials. The standard material thickness range is generally between 0.3mm and 0.8mm depending on production requirements and roofing profile designs. Feeding width and corrugation shape can also be customized according to regional market standards and customer specifications. Different profile designs can be produced for industrial roof systems, warehouse roofing, wall cladding panels, fencing sheets, and agricultural building applications.

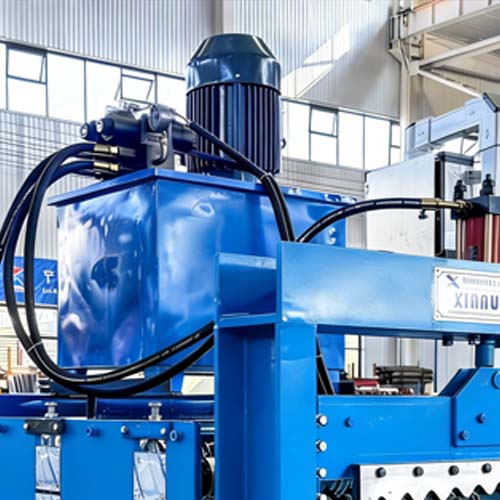

The forming rollers are manufactured from high-quality 45# forged steel with hard chrome plating treatment, which improves wear resistance, enhances forming precision, and extends machine service life. Precision-machined roller shafts and industrial-grade transmission systems ensure smooth operation and stable performance during high-speed production. The heavy-duty welded steel frame construction provides strong structural rigidity and minimizes vibration throughout continuous manufacturing processes. Combined with high-performance motors and hydraulic systems, the machine maintains reliable operation and efficient production capacity under large-scale industrial production conditions.

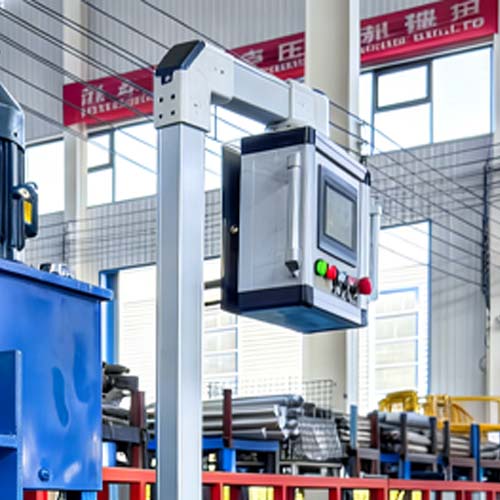

One of the major advantages offered by professional corrugated roof sheet making machine suppliers is the integration of advanced PLC intelligent control systems with touchscreen operation. Operators can easily set production length, batch quantity, and cutting parameters according to manufacturing requirements. Automatic length measurement and hydraulic cutting technology ensure precise cutting accuracy while minimizing raw material waste. Advanced machine configurations may also support automatic stacking systems, servo feeding technology, production counting functions, and fault alarm systems, greatly improving manufacturing efficiency and reducing labor intensity.
