Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com

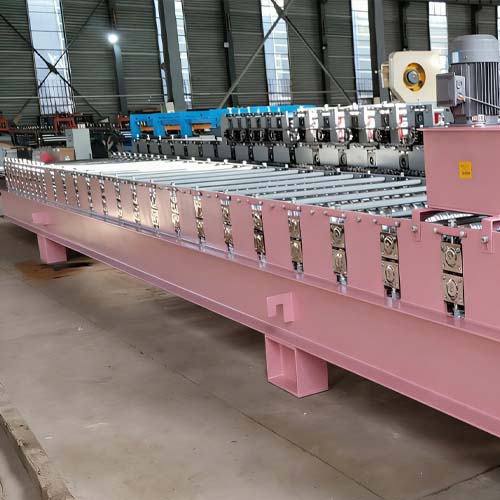

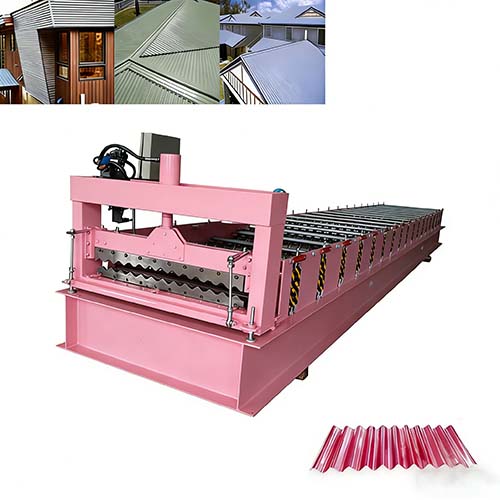

The Corrugated Roll Forming Machine is a fully automated production system designed for manufacturing corrugated metal roofing sheets and wall cladding panels used in industrial factories, warehouses, agricultural facilities, workshops, logistics centers, commercial buildings, and steel structure construction projects. With the rapid development of modern infrastructure and industrial construction worldwide, corrugated roofing sheets have become one of the most widely used building materials because of their lightweight structure, strong durability, corrosion resistance, and economical installation performance. This machine offers manufacturers a reliable and efficient solution for producing high-quality corrugated roofing panels with stable forming precision and continuous industrial production capability.

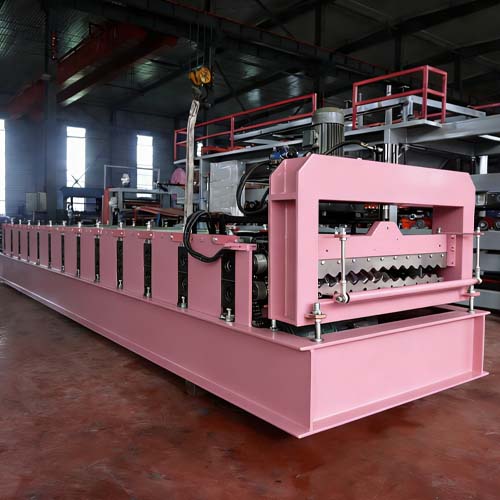

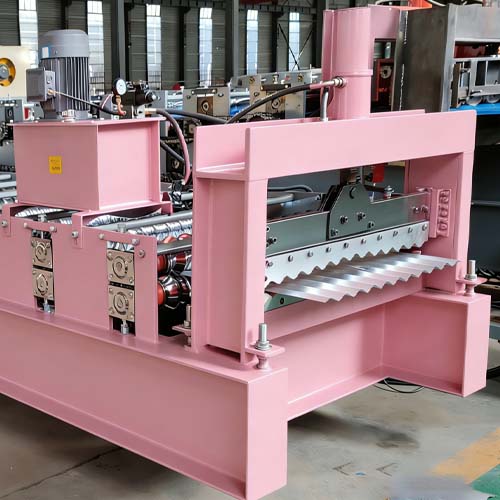

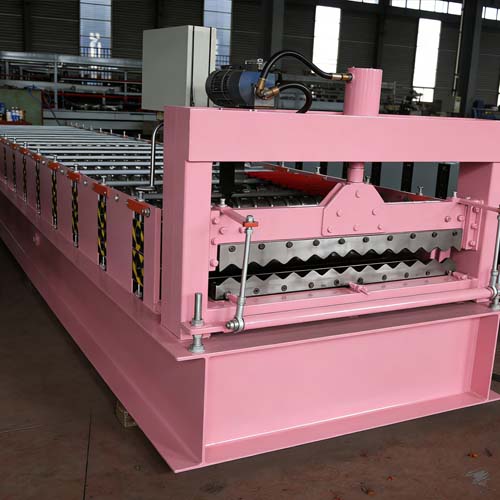

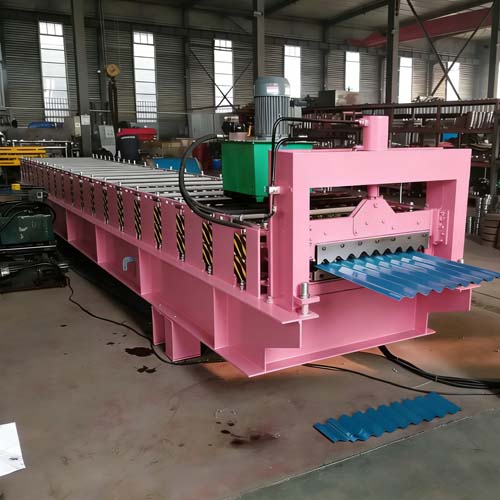

The complete corrugated roll forming production line generally consists of a hydraulic decoiler, feeding and guiding system, leveling platform, roll forming machine, hydraulic cutting station, PLC intelligent control cabinet, transmission mechanism, and finished product receiving table. During operation, steel coils are automatically uncoiled and smoothly fed into the forming section. The flat metal sheet passes through multiple precision roller stations where it is gradually shaped into a corrugated roofing profile using advanced cold roll forming technology. The automated manufacturing process ensures stable feeding speed, accurate corrugation dimensions, smooth sheet surfaces, and consistent product quality throughout long-term industrial operation.
This corrugated roll forming machine can process different types of metal materials including galvanized steel coils, galvalume steel sheets, pre-painted steel coils (PPGI/PPGL), aluminum sheets, and other coated steel materials widely used in roofing and cladding systems. The standard processing thickness generally ranges from 0.3mm to 0.8mm depending on production requirements and profile configurations. Feeding width, corrugation height, and profile patterns can also be customized according to regional construction standards and customer specifications. Various corrugated sheet designs can be manufactured for industrial roofing systems, wall cladding panels, warehouse roofs, fencing applications, and agricultural building projects.

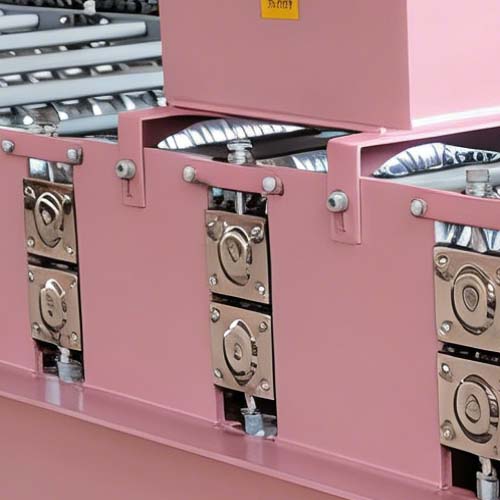

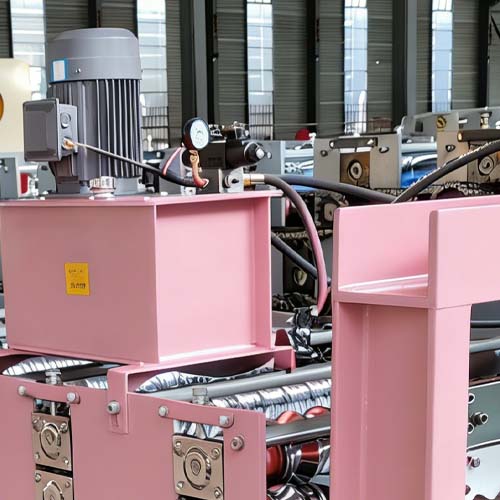

The forming rollers are manufactured from high-strength 45# forged steel with hard chrome plating treatment to improve surface hardness, wear resistance, and forming precision. Precision-machined shafts and industrial-grade transmission systems ensure smooth operation and stable forming performance during continuous high-speed production. The heavy-duty welded steel machine frame structure effectively minimizes vibration and maintains excellent profile accuracy throughout industrial manufacturing processes. Combined with reliable hydraulic systems and industrial motors, the equipment can maintain efficient production capacity and long operational service life.

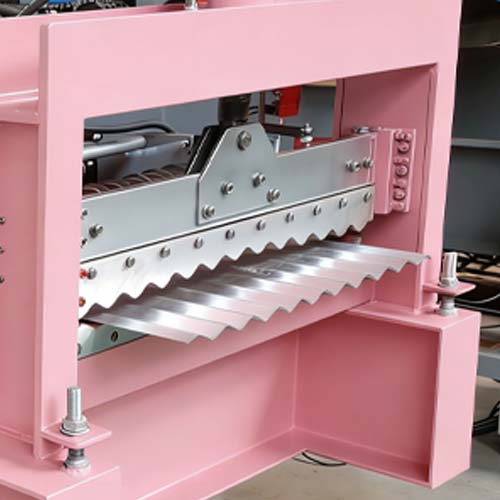

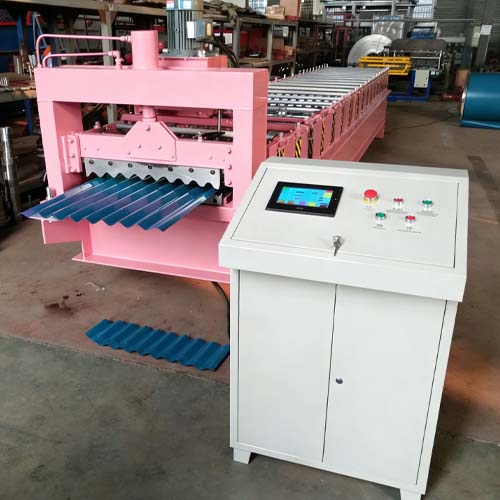

One of the main advantages of this automatic corrugated roll forming machine is the advanced PLC intelligent control system equipped with a touchscreen operating interface. Operators can conveniently adjust production length, sheet quantity, and cutting parameters through the digital control panel. Automatic measuring and hydraulic cutting systems guarantee precise sheet dimensions while reducing raw material waste and improving production efficiency. Optional automation systems such as automatic stackers, servo motor feeding devices, production counters, and fault alarm functions can further improve manufacturing efficiency and reduce labor costs for modern factories.
Corrugated roofing sheets produced by this equipment are widely used in industrial factories, agricultural storage facilities, livestock farms, logistics warehouses, workshops, commercial centers, and steel structure wall systems. The corrugated profile improves structural rigidity, enhances rainwater drainage capability, and increases resistance against strong winds and severe environmental conditions. These advantages make corrugated roofing panels highly suitable for long-term outdoor use in industrial and agricultural environments exposed to rain, humidity, sunlight, and temperature fluctuations.
Compared with traditional sheet fabrication methods, the corrugated roll forming machine provides significantly higher manufacturing efficiency, lower operating costs, and more stable product quality. Continuous cold roll forming technology guarantees uniform corrugation patterns, accurate profile dimensions, and smooth surface finishes throughout the manufacturing process. For modern roofing sheet manufacturers, investing in automated corrugated roll forming equipment is an ideal solution for expanding production capacity and improving competitiveness in the international construction materials industry.
Xinnuo Machinery Co., Ltd., established in 1995, is a professional manufacturer of grain silo machines and roll forming production lines with nearly 30 years of experience. With advanced CNC facilities and a strong R&D team, we provide high-quality, customized solutions for global customers. Our machines are widely used in modern grain storage systems, ensuring high efficiency, stability, and long service life.
