Develivery time:50-60 days
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty
WhatsApp：+86 18832797029
e-mail：yuankuoduan@gmail.com
Silo making machine include Silo Corrugated Panel Roll Forming Machine, Hydraulic decoiler –Shovel head device(Auxiliary feeding +Leveling) –Pre Cutting–Roll Forming Machine–ltting & Waste Wire Collecting–Movable Pallet- -Servo Movable Punching–Movable Pallet- -CNC Bending- -Hydraulic Cutting- -Receive Table.
Galvanized steel grain bin corrugated sheet Silo Making Machine technical details
| galvanized steel grain bin corrugated sheet silo making machine | ||
| Components | Items | Specifications |
|
Roll Forming Machine part |
Forming station | 20 rollers |
| Material of rollers | Bearing steel GCR15, with chrome coated and quenching treatment. | |
| Diameter of shaft | 110 mm solid, with tempering heat treatment. | |
| Material of shafts | 45# steel with tempering treatment | |
| Main Power | 15 Kw (K serious main motor power) | |
| Main frame system | 450mm H beam structure with tempering heat treatment,wall panel thickness 25 mm heavy duty. | |
| Transmission | By 1.0 inch double hanging drive chain | |
| Bearing | 6214 ball bearing | |
| Curving machine | Bending arc computer PLC automatic type change, 3-axis form, equipped with 2 * 5-ton lifts. | |
| Curving Radius: ≥8m | ||
| Side Perforation Part | 2 groups, cylinder diameter 80mm, manual adjustment of punching position | |
| Horizontal head perforation part | Cylinder: 110mm diameter * 2, the head hole punches 1 row of holes at a time, the punching range, 0.8-1.2 mm thick. | |
| Cutting System | Cutting Cut off method |
Hydraulic cutting |
| Drive | Driven by two Ø 110 cylinders | |
| Cutting die material | Cr12,processing technology: rough material milling machine processing – vacuum heat treatment HRC58-60 – flat grinding processing end face – wire cutting processing outline – engraving machine fine carving shape. | |
| Electric control system | Parameter settings | Through Touch Screen |
| PLC and Transducer | DELTA From Taiwan | |
| Control box | Vertical independent electric control cabinet | |
| Control type | By 7 inch touch screen | |
| Touch screen language | Chinese, English, Spanish | |
| Voltage | 380V,50HZ,3phase or customized | |
| Length measurement | Omron counter | |

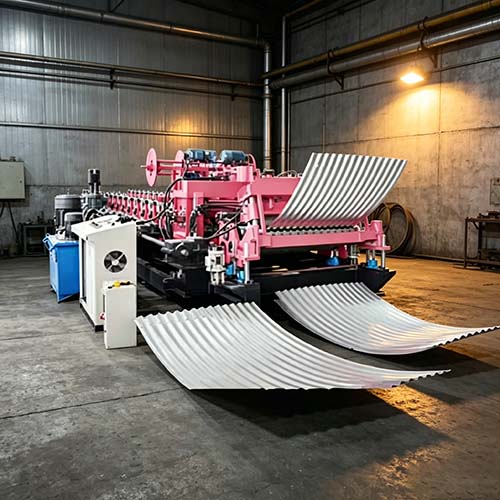

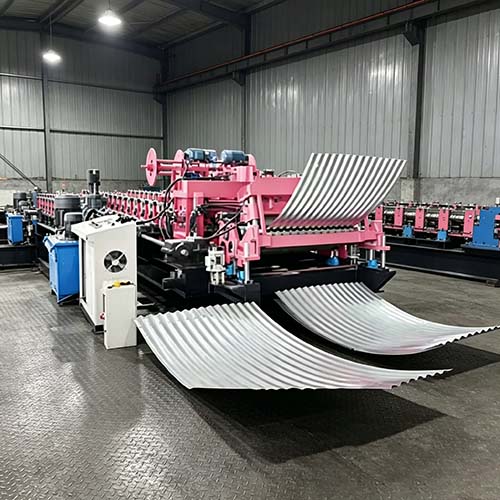

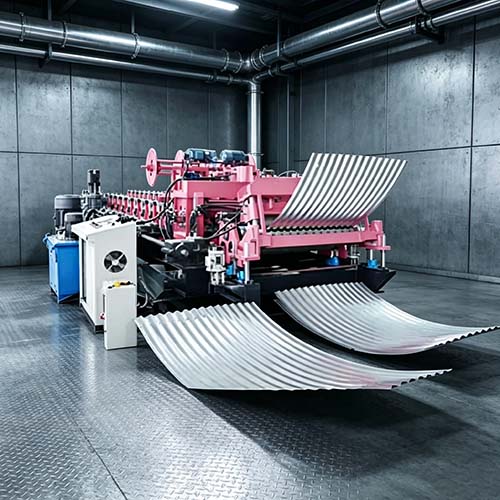

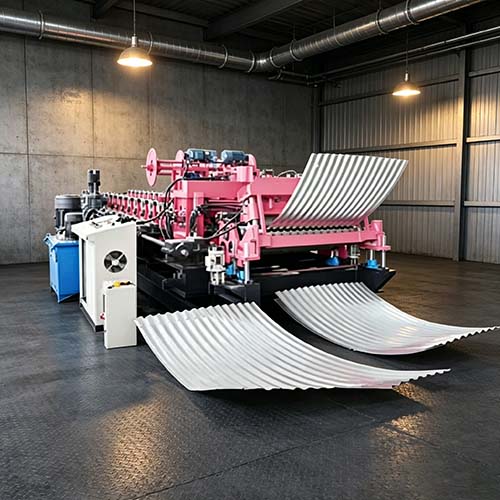

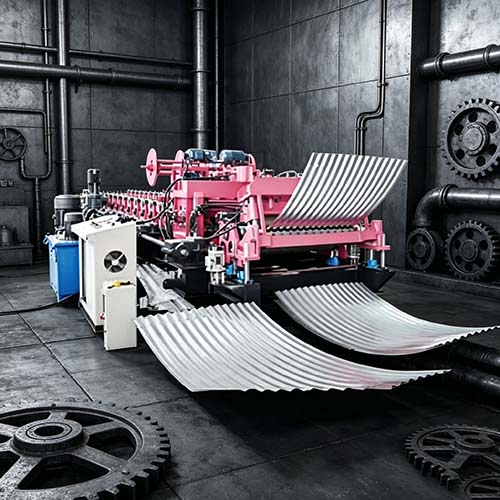

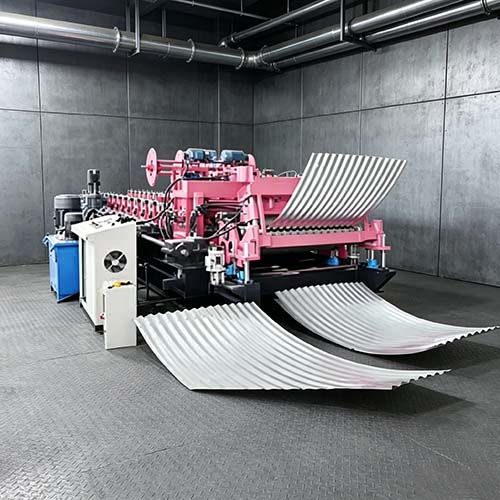

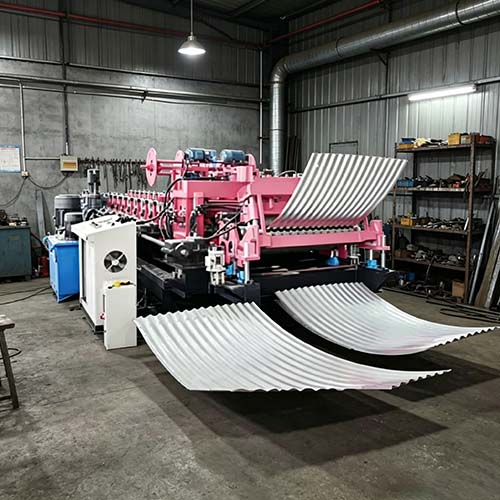

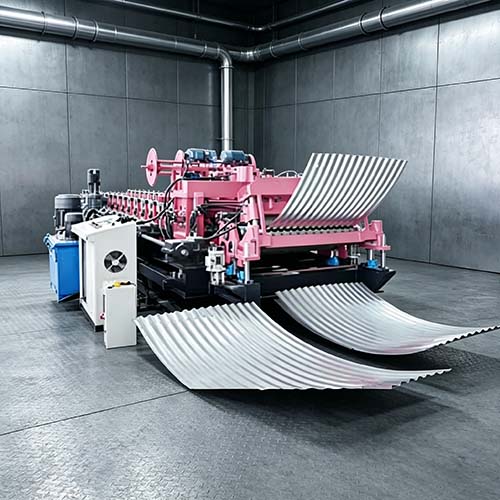

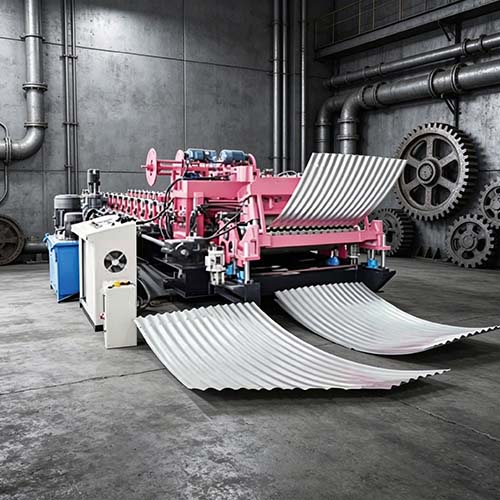

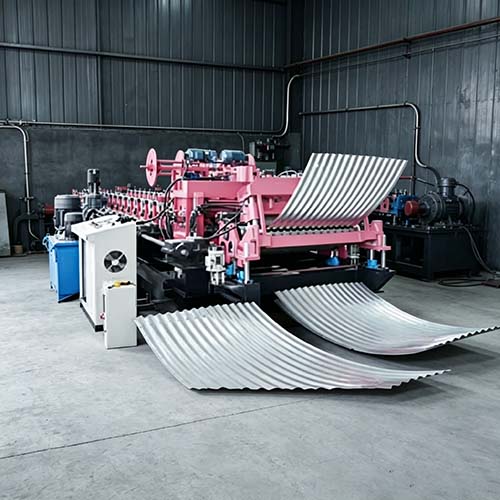

Galvanized steel grain bin corrugated sheet silo making machine more photos showing
