Precision Roof-to-Wall Integration: Eliminating Silo Moisture Ingress



Precision Roof-to-Wall Integration: Eliminating the Weakest Link in Grain Silo Moisture Protection

Technical Reliability Brief by Xinnuo Machinery Engineering Team | July 18, 2026

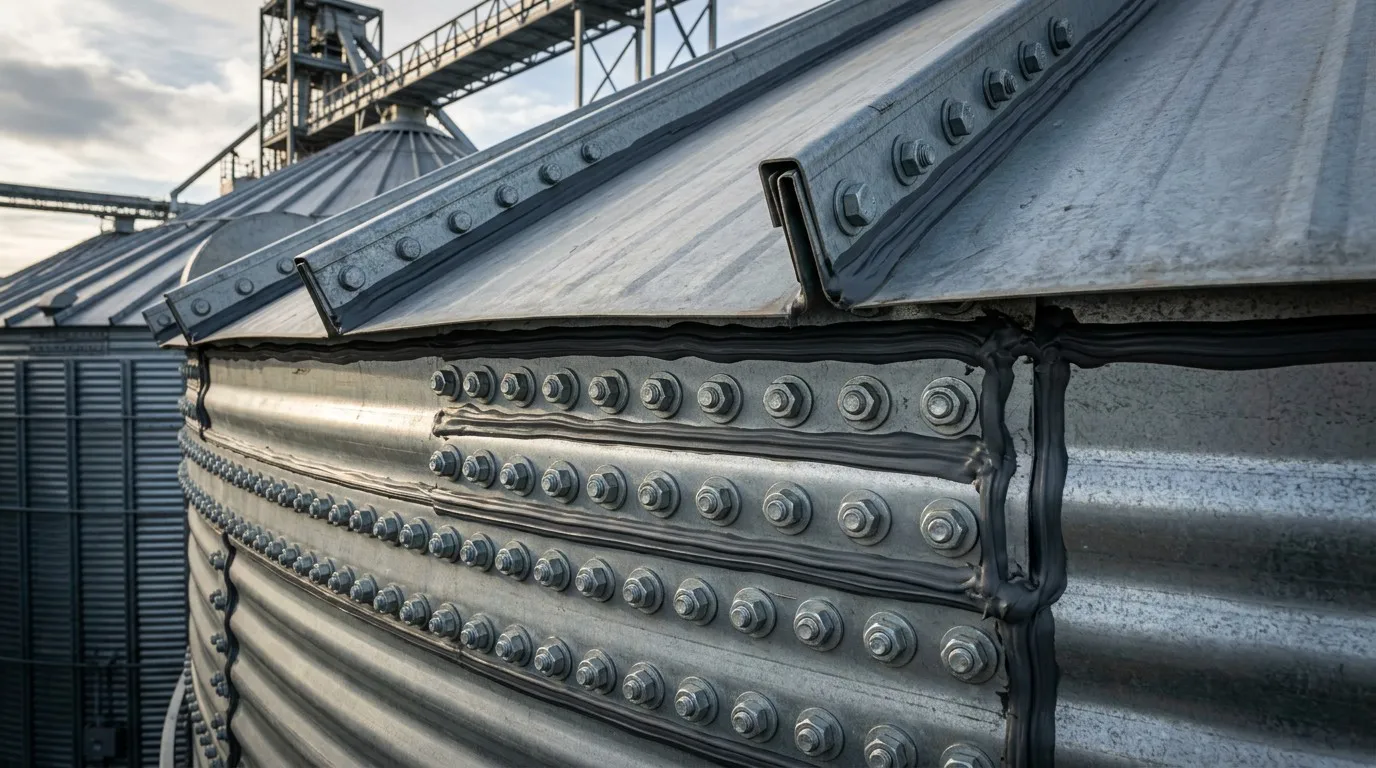

Precision Roof-to-Wall Connection of a Steel Grain Silo Produced by CNC Machinery

In the high-stakes environment of long-term grain preservation, the structural integrity of a silo is only as reliable as its tightest seal. While the body panels manage massive lateral pressures, the junction where the roof meets the side wall is often the "Achilles' heel" of the entire system. If this connection is not engineered with absolute precision, thermal expansion and heavy environmental loads will eventually create gaps—allowing rain, snow, and pests to bypass your defenses. Achieving a weather-tight seal requires a **grain silo machine** that treats geometric integration as a primary safety requirement.

At Xinnuo Machinery, we focus on the technical details that others ignore. Here is how our precision manufacturing eliminates moisture ingress at the silo's most vulnerable point.

1. The Interlocking Drip-Edge: Engineering Against Gravity

A superior roof-to-wall seal is not built with just sealants; it is built with superior geometry. Our roll forming production lines are designed to produce specialized "eave-panels" with a proprietary interlocking drip-edge profile. This geometry ensures that even during torrential tropical rains, water is naturally shed away from the seam and the vertical wall. By ensuring a sub-millimeter fit between the roof panel and the top ring of the silo wall, we create a mechanical barrier that protects the harvest from the top down.

2. CNC Bolt-Pattern Synchronization: Preventing Joint Fatigue

The transition between the roof's radial ribs and the silo's vertical stiffeners must be a unified structural point. If the bolt holes are misaligned by even 1mm, the roof cannot distribute the load of heavy snow or high wind evenly, leading to joint fatigue and eventual leaks. Xinnuo’s integrated CNC systems synchronize the punching of the roof-eave components with the sidewall panels. This "Seamless Pattern Match" ensures that when the silo is bolted on-site, the connection is rock-solid and airtight, maintaining its integrity under extreme environmental stress.

Xinnuo Machinery: Engineering Security into Every Seam

With 30 years of industrial experience, Xinnuo Machinery has spent decades perfecting the nuances of steel infrastructure. we understand that for our B2B partners in over 139 countries, a single leak can ruin a national strategic reserve or a commercial milling batch. Our machines are designed to produce silos that offer Total Weather Resilience. We don't just sell machines; we provide the engineering assurance that your grain stays dry, no matter what happens in the sky.

Build with Seal-Point Perfection. Build with Xinnuo.

Sealing Engineering FAQ

Q: Why is the roof-to-wall connection a vulnerable point?

A: It is where different geometric planes meet. Imprecision here leads to gaps during thermal expansion, allowing water and pests to enter the silo.

Q: How does Xinnuo Machinery ensure a leak-proof seal?

A: Our machines produce precision-punched eave panels with an interlocking drip-edge design, ensuring 100% moisture protection through superior geometry.

Seal Your Investment from the Top Down

Consult with Xinnuo Machinery for a high-precision, weather-tight grain silo manufacturing solution.

Consult with a Sealing Expert
