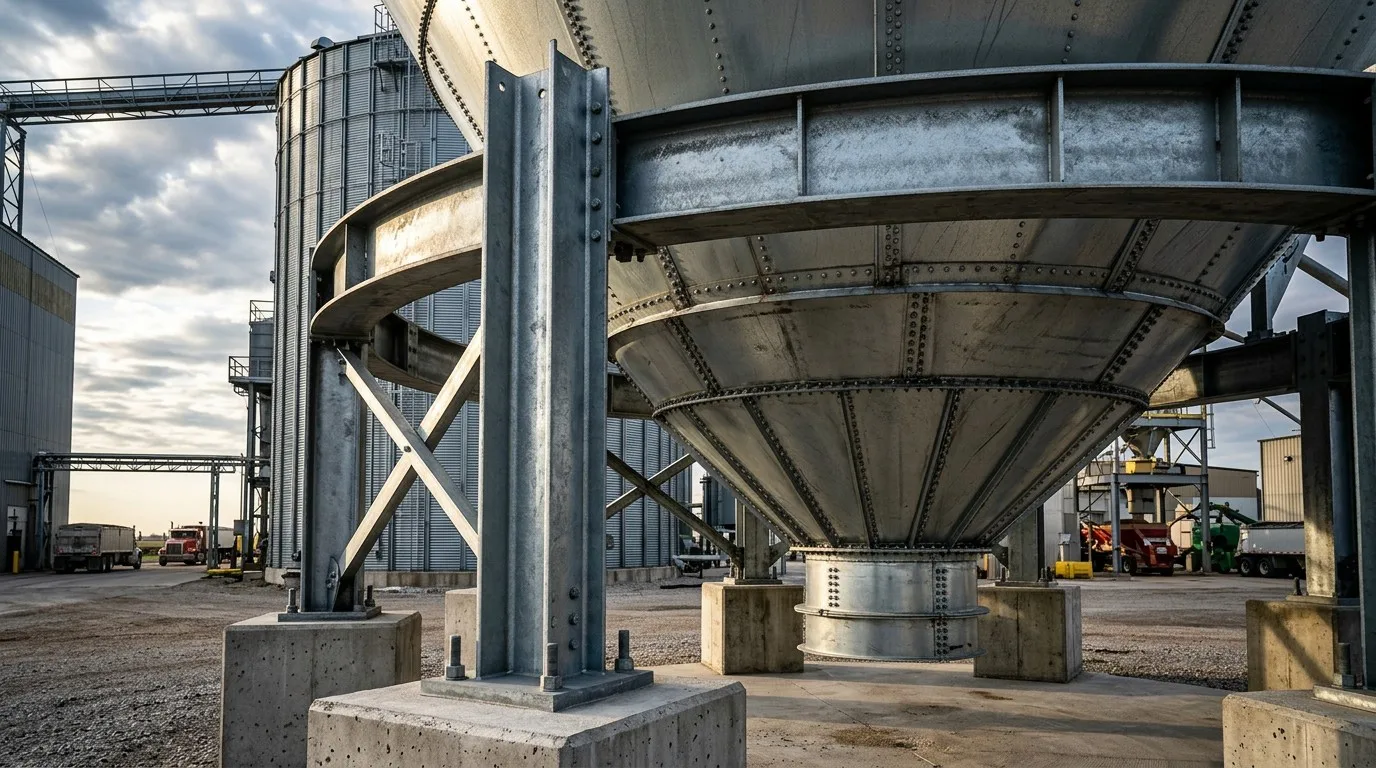

Elevated Strength: Engineering Heavy-Duty Support Structures for Hopper-Bottom Grain Silos
Structural Integrity Analysis by Xinnuo Machinery Technical Division | July 18, 2026
In the world of industrial storage, the hopper-bottom (conical) silo is a masterpiece of efficiency, allowing for total, gravity-driven discharge. However, from an engineering perspective, it is also one of the most demanding structures to build. Unlike flat-bottom silos that rest directly on a concrete foundation, a hopper silo is "suspended" in the air. This concentration of thousands of tons of grain onto a limited number of steel legs requires a grain silo machine capable of producing the highest-strength structural components in the industry.
At Xinnuo Machinery, we focus on the critical interface where steel meets the ground. Here is how we engineer stability into elevated grain storage systems.
1. The Compression Ring: The Structural Heart
The transition between the vertical silo wall and the conical bottom is the point of maximum stress. This area requires a massive, reinforced compression ring. Our roll forming production lines are designed to produce specialized heavy-gauge segments that form this ring with absolute geometric precision. By ensuring that the ring distributes the load perfectly across all support legs, we prevent localized buckling and ensure the silo maintains its cylindrical integrity under the dynamic pressures of loading and unloading.
2. Leg Engineering & Lateral Stability
Support legs for hopper silos aren't just pillars; they are engineered profiles that must resist both vertical compression and lateral sway from wind or seismic forces. Xinnuo’s grain silo machines utilize heavy-duty roll forming to produce C-channel and box-section legs from thick galvanized steel. By integrating CNC-matched bolting points, we ensure that the legs, cross-bracing, and the silo body work as a single, unified structural unit. This precision is vital for large-capacity elevated silos, providing the Factor of Safety required for high-risk industrial environments.
Xinnuo Machinery: Engineering Confidence at Every Height
Established in 1995, Xinnuo Machinery has spent 30 years perfecting the structural science of elevated storage. We understand that in the B2B sector, the safety of your facility is the safety of your business. Our grain silo production lines are trusted in over 139 countries precisely because they deliver the engineering depth needed for high-load, high-throughput terminals.
We provide the technology that allows you to reach higher and store smarter with Elevated Structural Excellence.
Support Engineering FAQ
A: Because they are elevated, thousands of tons of load are concentrated on the legs and ring. Precision engineering prevents buckling and ensures stability.
A: We produce heavy-duty legs and rings with CNC-matched bolt patterns, ensuring perfect load transfer and structural integrity under maximum load.
Secure Your Elevated Storage Project
Consult with Xinnuo Machinery for a high-strength, support-engineered grain silo manufacturing solution.
Consult with a Structural Engineer
