Engineering for Strength: The Role of Vertical Stiffeners in Grain Silo Structural Safety
Structural Engineering Spotlight by Xinnuo Machinery R&D Team | July 18, 2026
In the architectural design of a large-scale steel silo, the corrugated panels are often the most visible feature. However, the true "backbone" that allows these structures to reach heights of 30 meters or more is the vertical stiffener system. For B2B industrial partners, understanding the engineering of these components is crucial. Without high-precision **grain silo stiffener machines**, even the highest-grade steel panels would eventually buckle under the crushing weight of thousands of tons of grain.
At Xinnuo Machinery, we focus on the physics of load distribution. Here is why the precision-forming of vertical stiffeners is the silent guardian of silo structural safety.
1. Managing the Vertical Compression Load

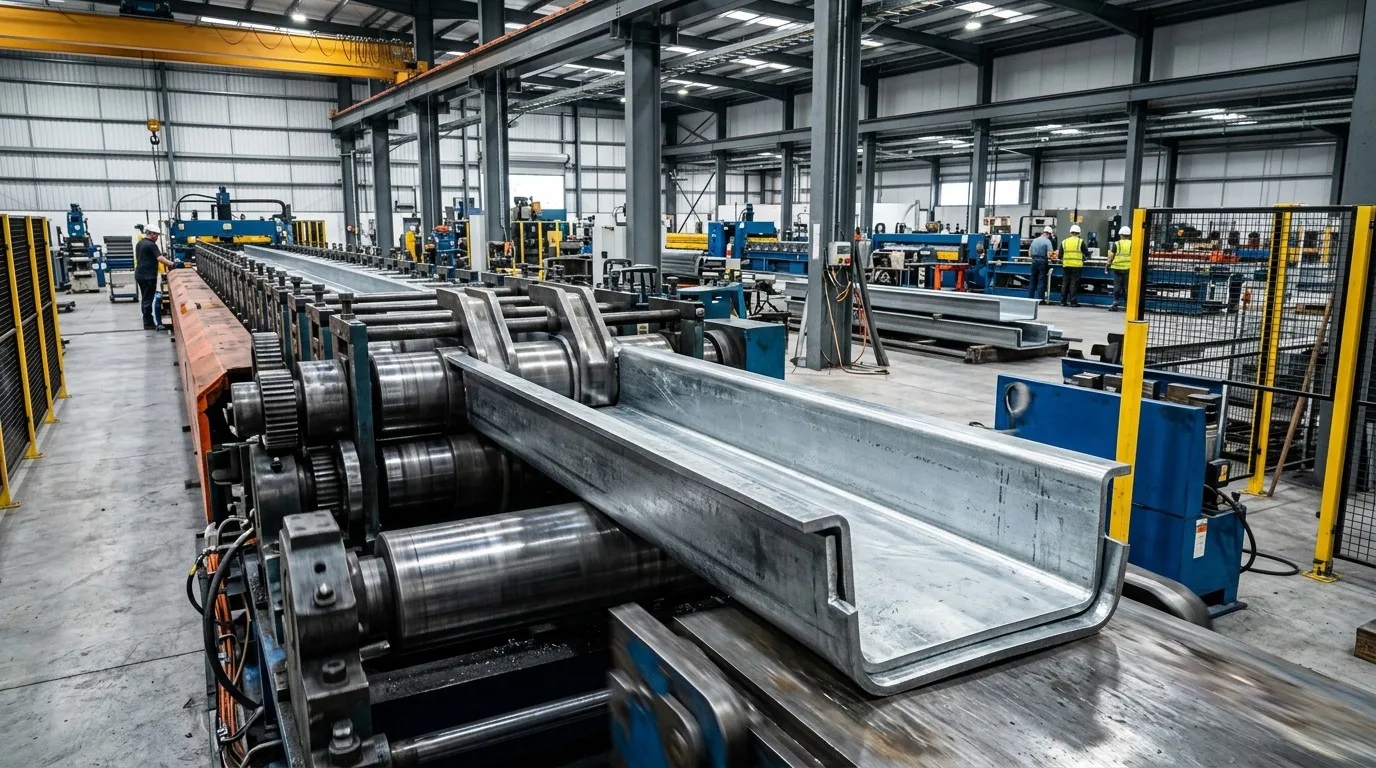

When a silo is filled, the grain exerts not just outward horizontal pressure, but also a massive vertical friction load on the walls. Corrugated panels are designed to hold the grain in, but the vertical stiffeners are designed to keep the structure standing. Our stiffener roll forming lines produce heavy-duty, cold-formed U-profiles and W-profiles that are engineered to absorb this downward force. By using high-tensile steel and ensuring perfectly uniform thickness across the profile, we provide the compression strength needed to prevent structural collapse.
2. Perfect Alignment: The Key to Load Transfer
A stiffener is only effective if it is perfectly integrated with the silo's panels. If the bolt holes in a stiffener are misaligned by even 1mm, the vertical load will not transfer efficiently, creating dangerous stress concentrations. Xinnuo’s automated CNC production lines utilize dual-axis encoders to synchronize punching and forming, ensuring that every stiffener is a perfect 1:1 match for the panel's bolt pattern. This "Seamless Load Transfer" is vital for the long-term integrity of the foundation and the silo's service life.
Xinnuo Machinery: Engineering Resilience into Every Frame
For 30 years, Xinnuo Machinery has been at the forefront of heavy-duty cold-bending technology. Our grain silo stiffener machines are built with reinforced frames and precision-polished rollers to handle galvanized steel up to 4.0mm thick. We understand that in industrial storage, structural safety is the foundation of brand reputation. That’s why our machines are trusted in over 139 countries to deliver the engineering accuracy required for high-risk, high-load infrastructure.
When you choose Xinnuo, you are choosing Uncompromising Structural Security.
Structural Engineering FAQ
A: They act as the skeleton, bearing the massive vertical load of the grain and providing the rigidity needed to prevent wall buckling.
A: We use heavy-duty hydraulic punching and CNC synchronization to ensure sub-millimeter bolt-hole accuracy, facilitating perfect alignment with the silo panels.
Build a Stronger Storage Foundation
Consult with Xinnuo Machinery for a high-precision, heavy-duty stiffener manufacturing solution.
