Building on Solid Ground: The Critical Role of Foundation Engineering in Steel Grain Silo Stability
Technical Civil Engineering Focus by Xinnuo Machinery Projects Division | July 18, 2026
In the construction of a large-scale agricultural terminal, most of the focus is placed on the capacity and height of the silos. However, the true survival of these industrial giants depends on what lies beneath the surface. Foundation engineering and precision anchoring are the unsung heroes of silo stability. For B2B industrial partners, a failure in foundation design isn't just a technical error—it's an operational catastrophe. Achieving a stable base requires a grain silo machine that produces panels with the precision necessary to integrate flawlessly with site-specific concrete foundations.
At Xinnuo Machinery, we understand that a silo is only as permanent as its anchor. Here is why the structural link between the ground and the steel is the most critical stage of your project.
1. Soil Load Management: Distributing 10,000 Tons
A fully loaded grain silo exerts a massive, concentrated downward pressure. If the soil load-bearing capacity is not properly analyzed or if the foundation is poorly cast, uneven settlement can cause the silo to tilt, leading to structural shearing. Our engineering support helps partners calculate the required reinforcement for concrete bases. Our machinery then produces panels with high-strength bottom-ring profiles that act as a distribution plate, ensuring the vertical load is transferred uniformly across the concrete surface.

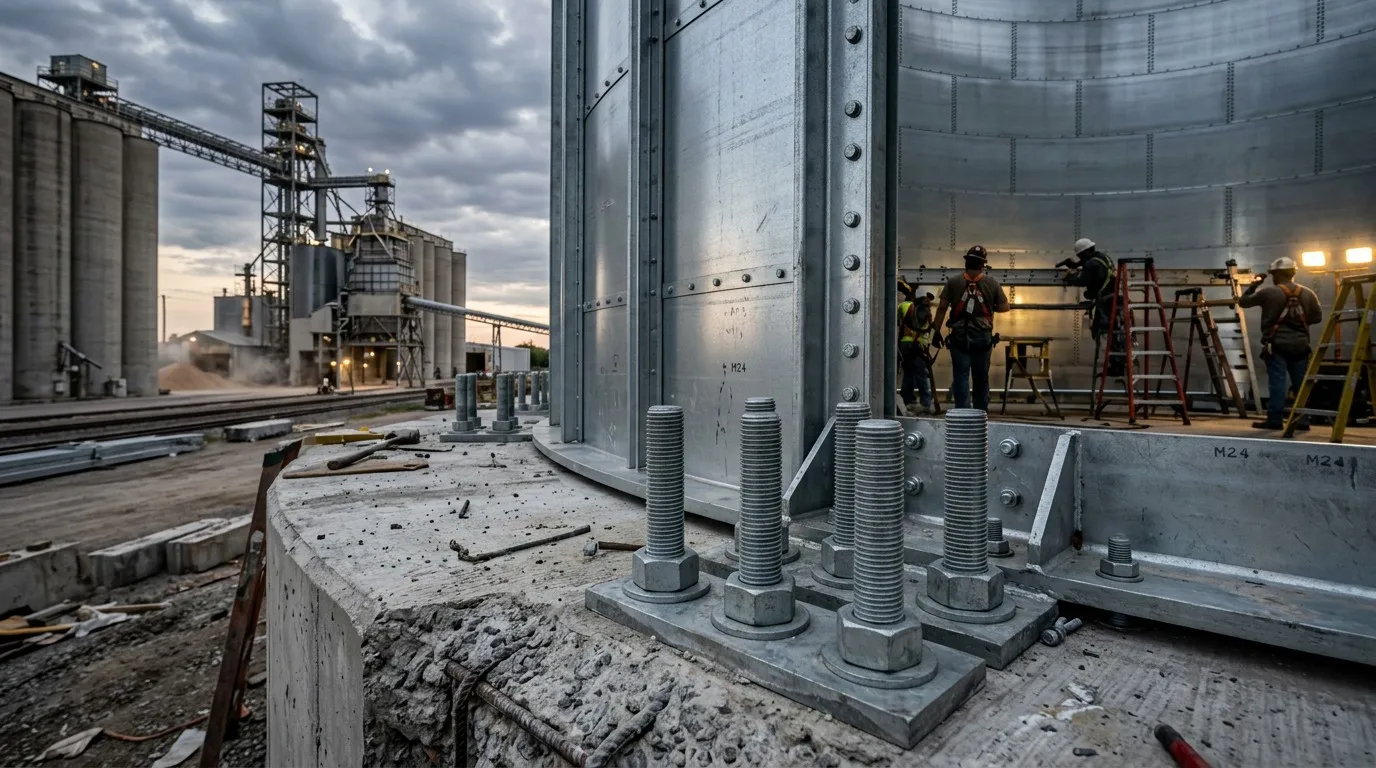

2. Precision Anchoring: The CNC Advantage
The anchor bolts embedded in the concrete are the only thing keeping a tall silo from tipping during hurricane-force winds or seismic events. If the silo's bottom ring holes don't align with these pre-cast bolts, the structural integrity is compromised. Xinnuo’s CNC-integrated grain silo production lines produce base panels with 100% bolt-hole accuracy. This "Millimeter Alignment" ensures a perfect mechanical seat on the foundation, providing the tensile strength needed to withstand extreme lateral forces.
Xinnuo Machinery: Engineering Permanence into Every Infrastructure Project
Established in 1995, Xinnuo Machinery has spent 30 years mastering the interface between civil and mechanical engineering. We provide our global partners in 139 countries with more than just machines—we provide the technical specs, anchoring patterns, and structural documentation needed to build on solid ground. Our commitment to precision ensures that your storage infrastructure remains a stable, profitable asset for decades.
Build with Structural Confidence. Build with Xinnuo.
Foundation Engineering FAQ
A: It supports the entire weight of the grain. Proper engineering prevents soil settlement and structural failure by distributing massive loads evenly.
A: Our CNC-punched panels ensure sub-millimeter alignment with pre-cast anchor bolts, creating a rock-solid connection between the steel and the concrete.
